Rigging work
12.1 Rigging work checklists for crane operation with the main boom
12 - 8 3 302 709 en Operating manual
GMK5150L
12.01.2018

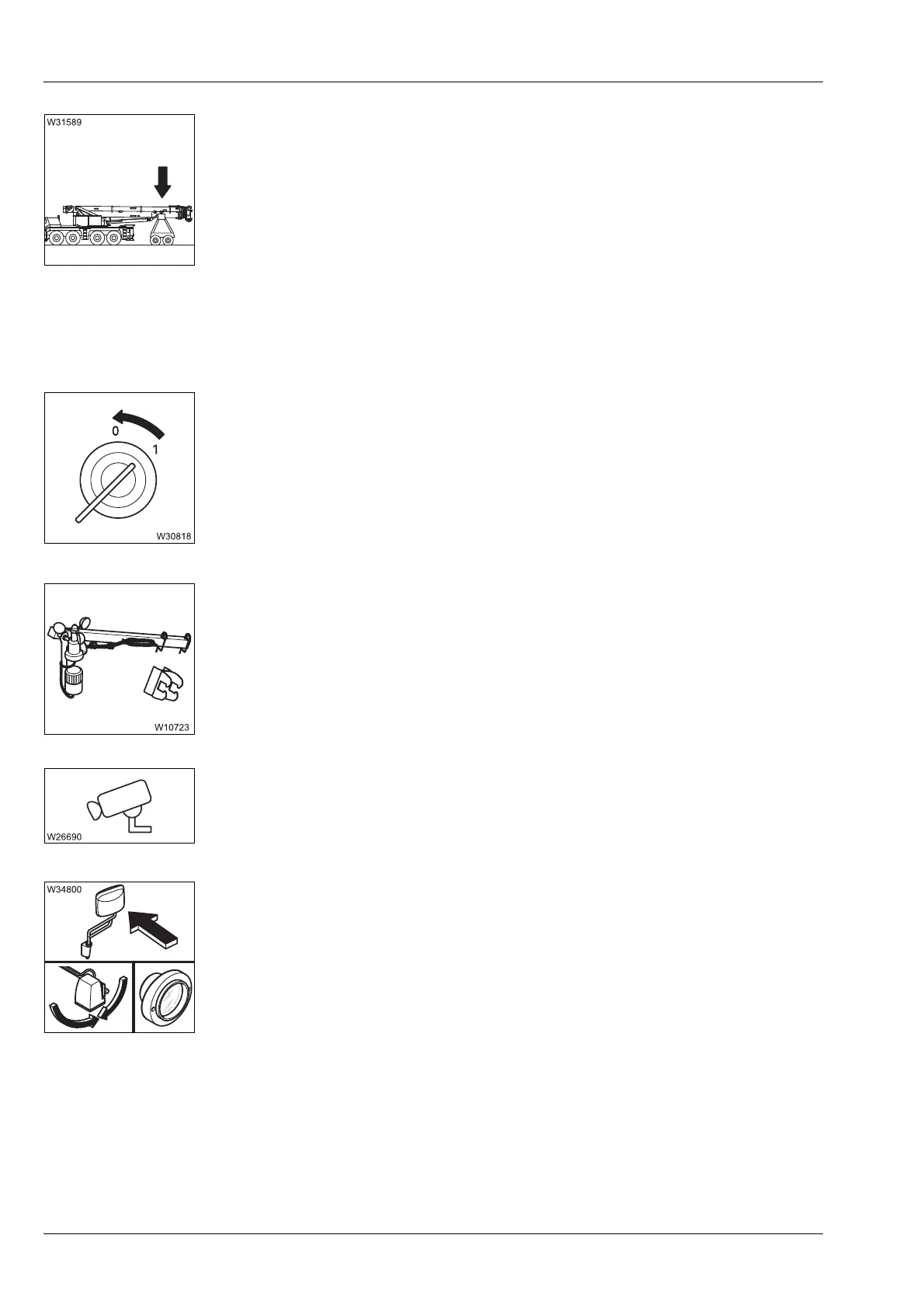

6. For on-road driving with a dolly:
– Set down the superstructure on a dolly with the RCL adjusted accord-
ingly and switch on the boom floating position;
à p. 6 - 13,
– Switch on slewing gear freewheel;
à p. 6 - 12
– Switch on boom pre-tensioning if necessary;
à p. 6 - 14,
– If necessary, raise the 3rd axle line;
à p. 6 - 15,
– switch off the houselock;
à p. 11 - 17,
– unrig the counterweight on the
Rear counterweight platform;
à p. 12 - 76.
7. Turn off the engine for crane operation;
à p. 10 - 11.
8. If necessary, remove the anemometer and air traffic control light;
à Anemometer and air traffic control light, p. 12 - 145.
9. If necessary, remove the camera from the main boom;
à Cameras for crane operation, p. 12 - 152.
10. Fold in all mirrors for crane operation;
à Folding the mirrors in and out,
and adjusting them
, p. 12 - 150.
Slew the slewable spotlights to point downwards;
à p. 11 - 130.
The lighting on the outrigger must be switched off;
à p. 12 - 45.
