Rigging work
12.9 Rigging/unrigging the counterweight
Operating manual 3 302 709 en 12 - 81
GMK5150L
12.01.2018

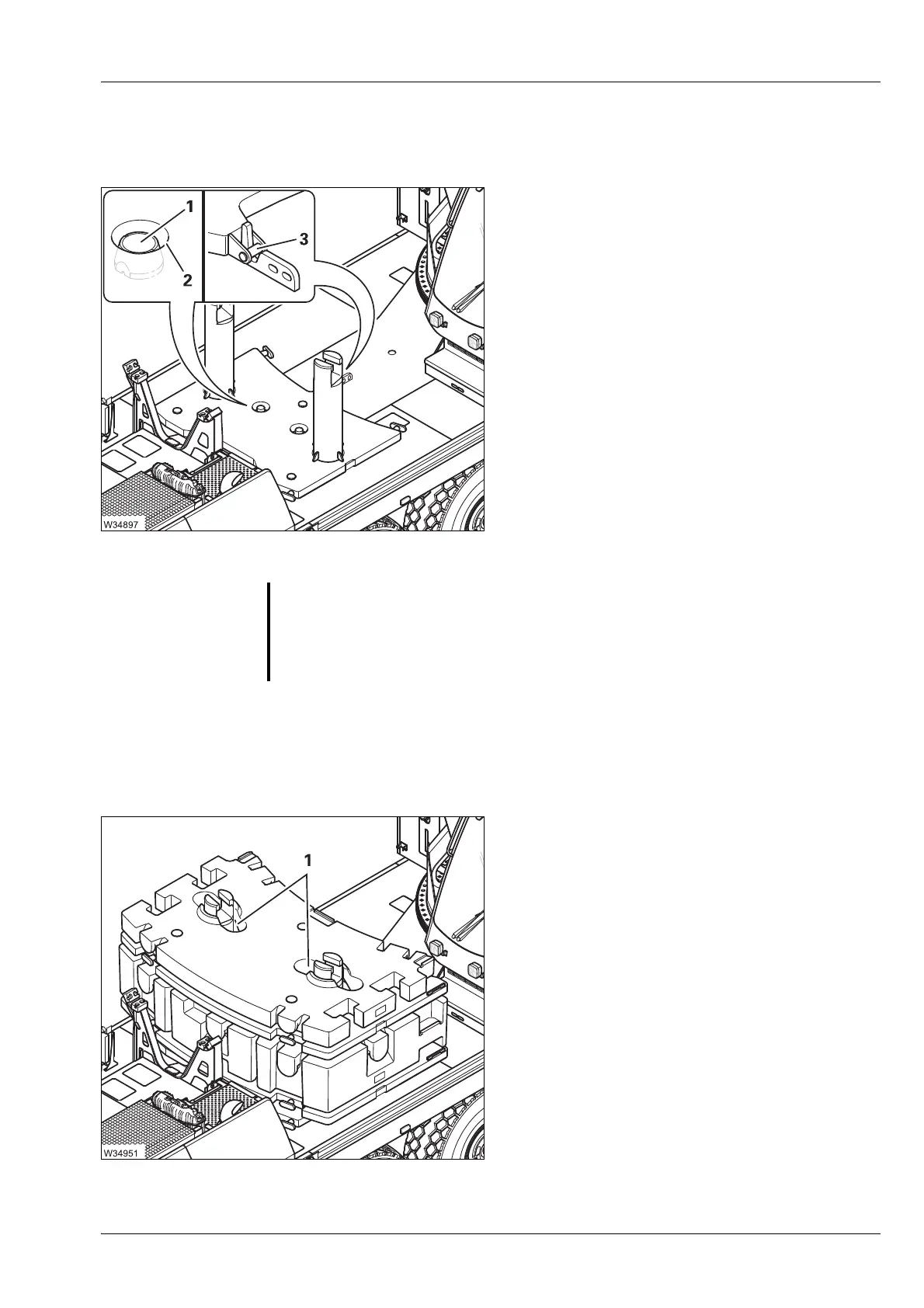

Setting down
the 2.3 t base
plate
With versions 1, 2 and 3
Only the 2.3 t base plate may be set down
directly on the counterweight platform.
You can use the holder (3) to position
the 2.3 t base plate centrally on the carrier.
• Position the 2.3 t base plate in such a way
that the holders (1) grip into the recesses (2).
For larger counterweight combinations, now
set additional counterweight sections onto
the 2.3 t base plate.
Setting down the
top couterweight
section
With versions 1, 2 and 3
Always place a plate with cutouts (1) as the
uppermost counterweight section.
Only then can the lifting cylinder be rotated
into the 2.3 t base plate.
s
S
Risk of damage to the counterweight
Always position the 4.6 t section at the top. This prevents the lifting
cylinders and counterweight being damaged while rigging.
