Rigging work
12.9 Rigging/unrigging the counterweight
12 - 108 3 302 709 en Operating manual
GMK5150L
12.01.2018

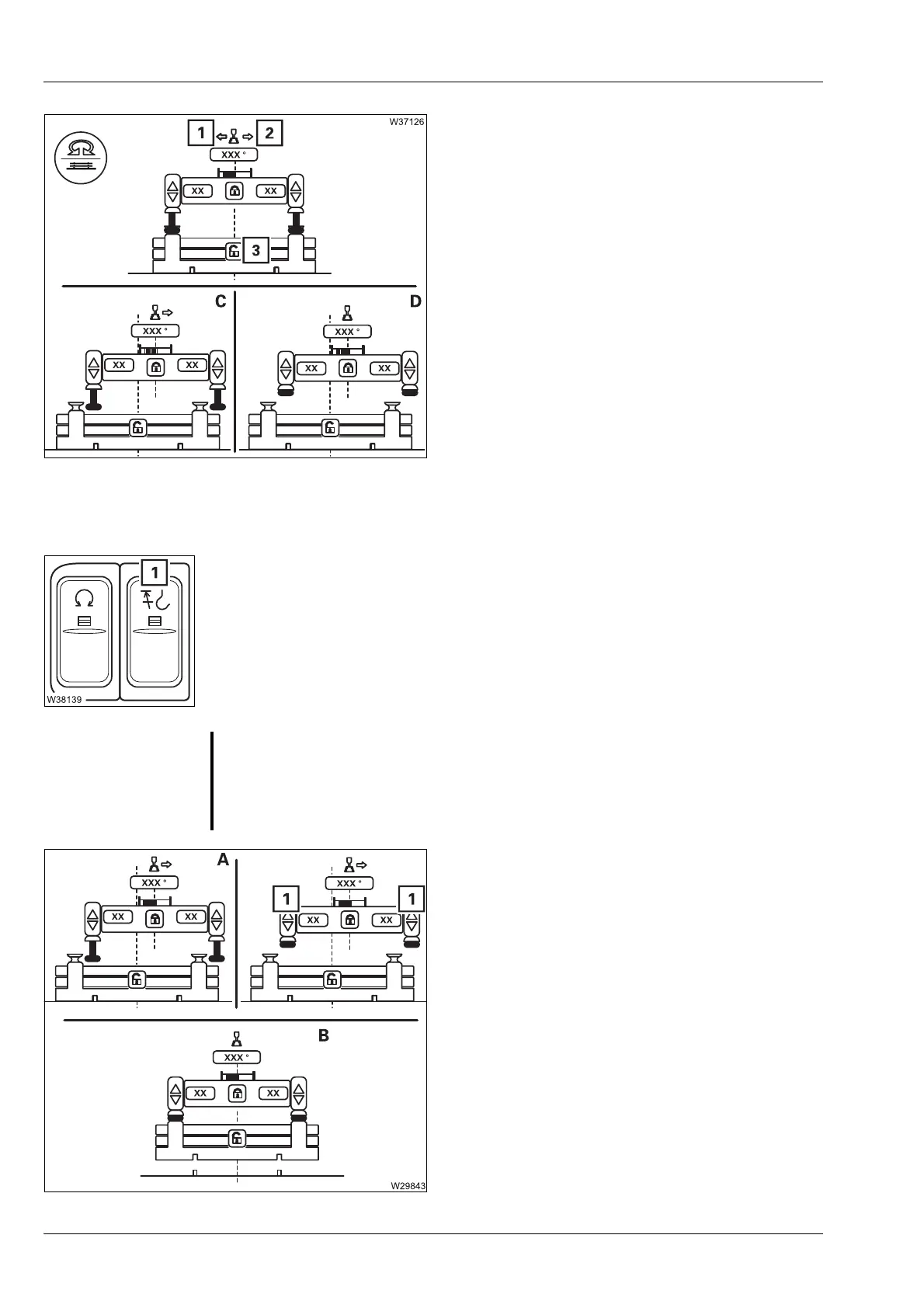

Move the slewing control lever in the dis-
played direction (1) or (2) – the automatic
mode continues.
The superstructure turns into position (C).
The lifting cylinders are retracted (D).
Release the control lever.
Cancel automatic
mode
You can cancel the automatic mode any time.
Press in the override button (1) upwards – the automatic mode is
cancelled.
If you have cancelled the automatic operation,
then you must:
In position (A)
Fully retract the lifting cylinders –
symbol (1).
In position (B)
Turn the superstructure into position (A).
Fully retract the lifting cylinders –
symbol (1).
S
Risk of damage to the counterweight
With the override switch actuated, the functions are always enabled.
Slew the superstructure only when the lifting cylinders are fully retracted.
