Manitowoc GROVE GMK5150L

Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 709 en 12 - 135
GMK5150L
12.01.2018
With 8 head
sheaves
With additional equipment, 8 head sheaves may be present.
If 6 head sheaves are provided;
à p. 12 - 132.
8-sheave hook block
7-sheave hook block
s

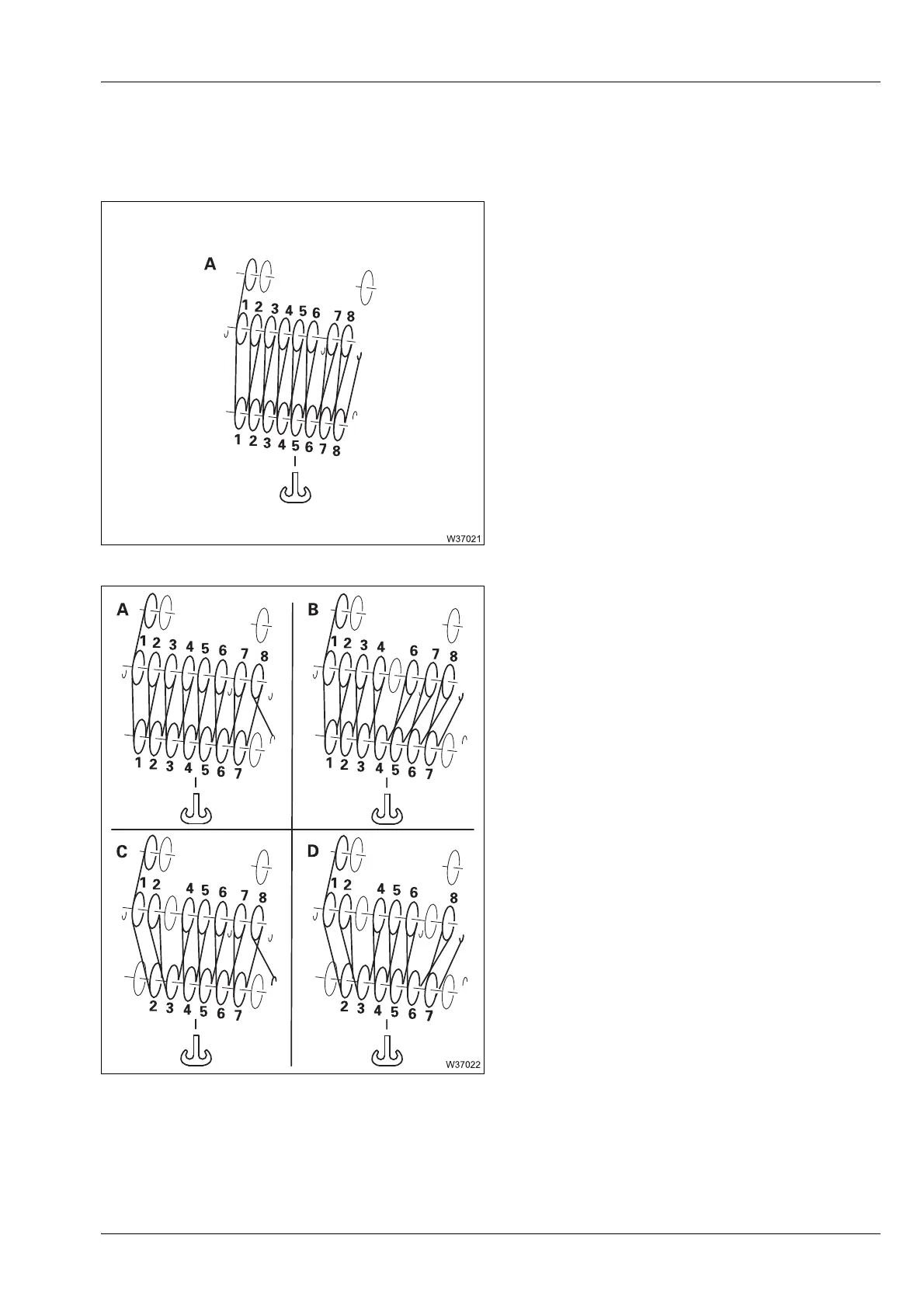

Reeving
A 16-fall
Reeving
A 15-fall
B 14-fall
C 13-fall
D 12-fall
