Rigging work
12.11 Other rigging work
Operating manual 3 302 709 en 12 - 153
GMK5150L
12.01.2018
H
You will need the respective connecting cable to connect the camera to a lat-
tice extension. This means certain pre-conditions are applicable to installa-
tion and removal.

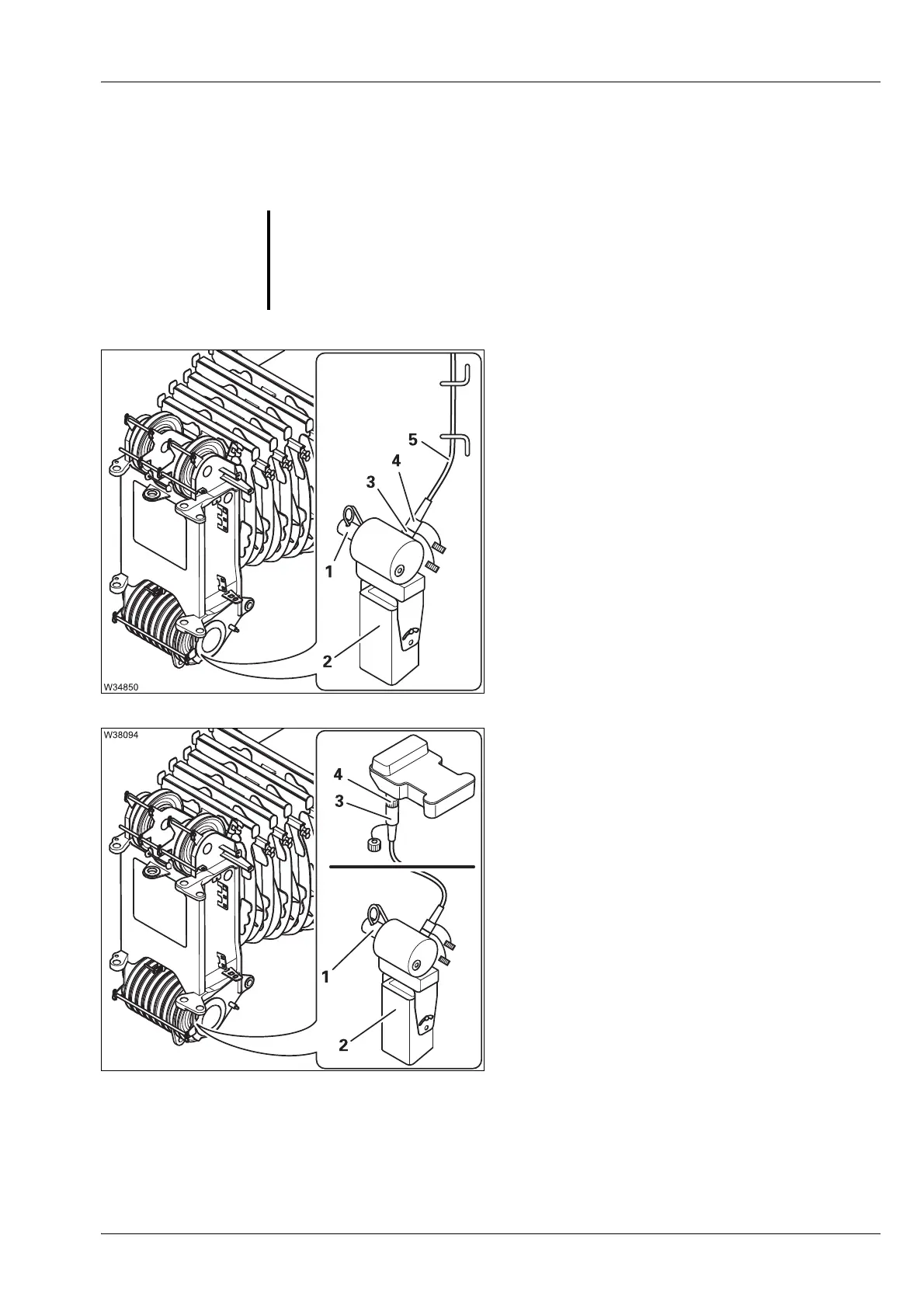

Installing
– Only the camera
• Insert the camera (2) into the clamp (1) and
secure it with the retaining pin.
• Insert the plug (4) into socket (3).
• Lay the cable (5) so that it will not be
damaged.
– The camera and the connecting cable
• Insert the camera (2) into the clamp (1)
and secure it with the retaining pin.
• Insert plug (3) in socket (4).
• Lay the cable (5) so that it will not be
damaged.
s
G
Risk of accidents due to falling camera
Always use a retaining pin to hold the camera in the clamp.
This prevents the camera falling down and injuring someone.
