Driving with a rigged truck crane
13.3 Before driving the rigged truck crane
Operating manual 3 302 709 en 13 - 9
GMK5150L
12.01.2018

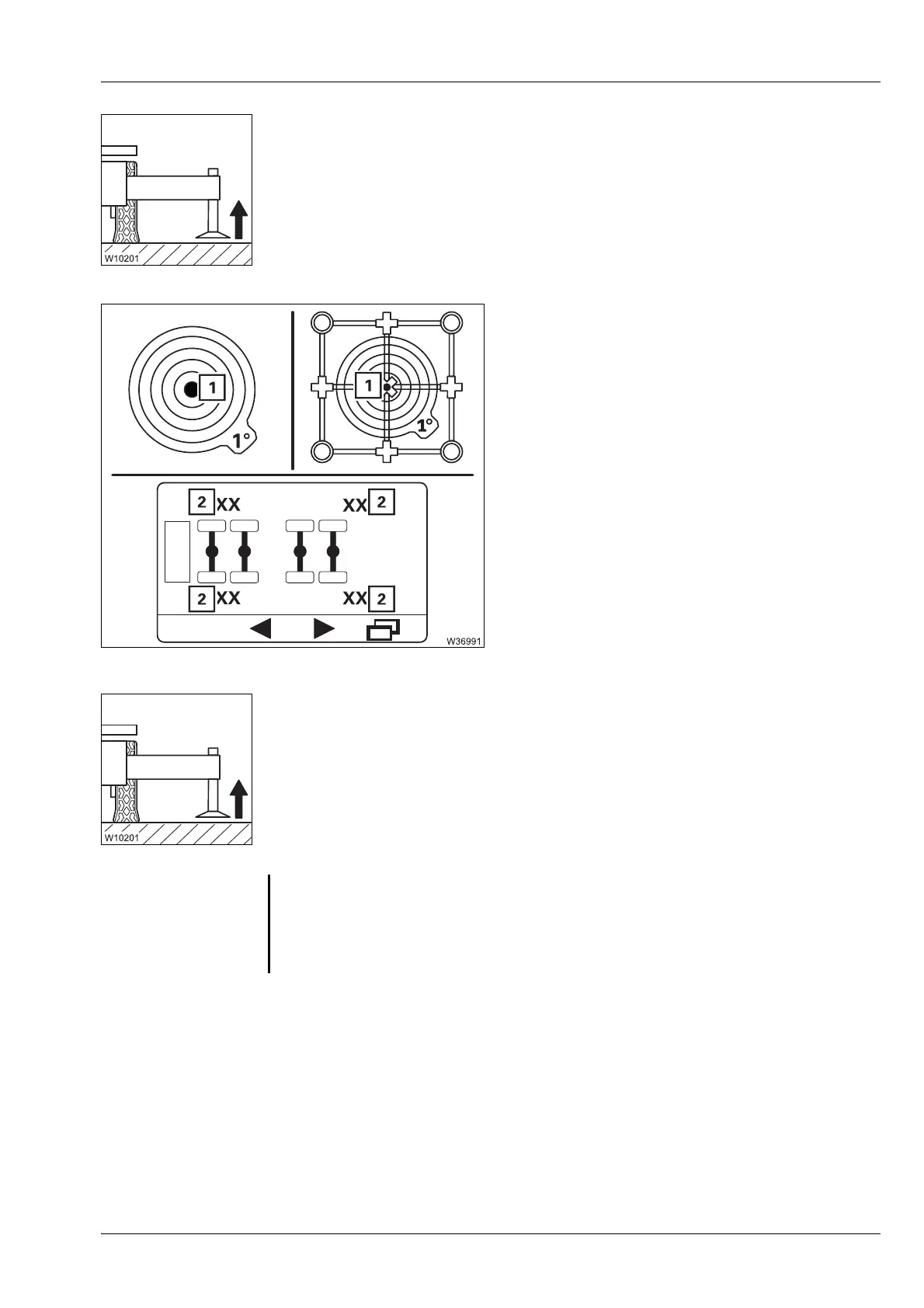

Aligning the truck crane
• Retract the support cylinders until they do not make contact with the
ground during alignment.
• Level the truck crane with the Raise axle
function.
–On the
Current inclination display, the
marking (1) must be in the middle of
the 1° measuring range.
– The displays (2) must show an even axle
load.
à Operating the axle raising system, p. 12 - 66.
To secure the truck crane
• Retract the supporting cylinders until the outrigger pads are
about 5 to 10 cm (2 to 4 in) above the ground. Allow the outrigger
beams to extend as far as possible.
G
Danger of overturning if outriggers are retracted
Always leave the outrigger beams extended as far as possible and the
outrigger pads just above the ground to secure the truck crane against
overturning.
