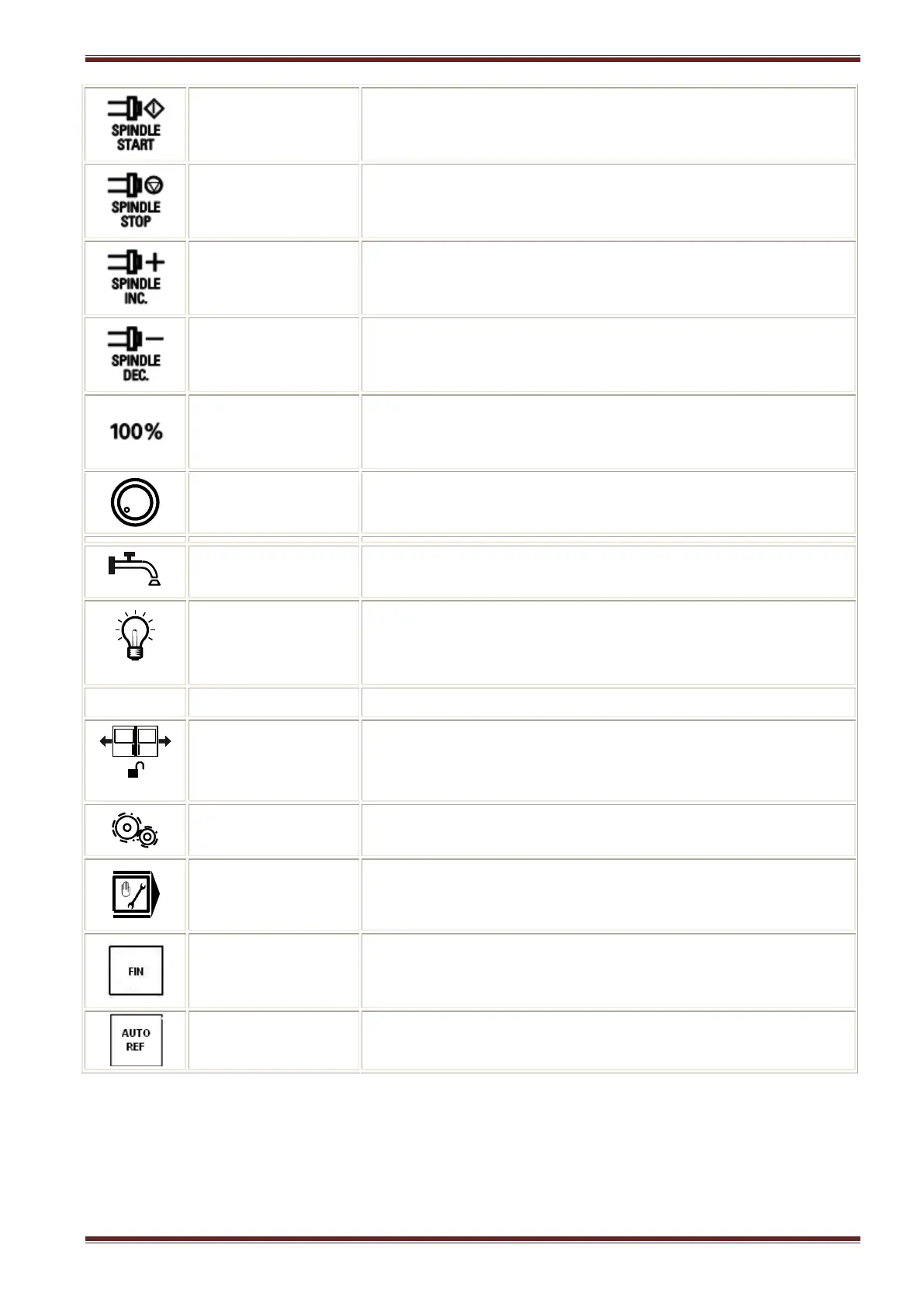

[SPINDLE
START]
Grinding spindle start request
[SPINDLE
STOP]
Grinding spindle stop request
[SP.INC]
Increase grinding spindle speed override in 10% increments
SP.DEC]
Reduce grinding spindle speed override in 10% decrements
[SP.100%]
Set grinding spindle speed override to 100%
[Hand Unit Enable]
MPG/hand unit ON/OFF toggle function
[Coolant OFF]
Coolant delivery ON/OFF toggle function
[Lights
ON/OFF]
General machine lighting ON/OFF toggle function
YES
[YES]
Dialog prompt acknowledge button
[Unlock Door]
Unlock guard door request
[Gear ON/OFF]
Gearbox ON/OFF toggle function
[SETUP]
Setup mode toggle function.
Generally selected when using any of the setting cycles
[FIN]
Acknowledge button used during setting and grinding cycle
instruction prompts or to confirm the completion of a setting
cycle sequence
[AUTO REF]
Starts referencing all machine axes in a pre-defined order
