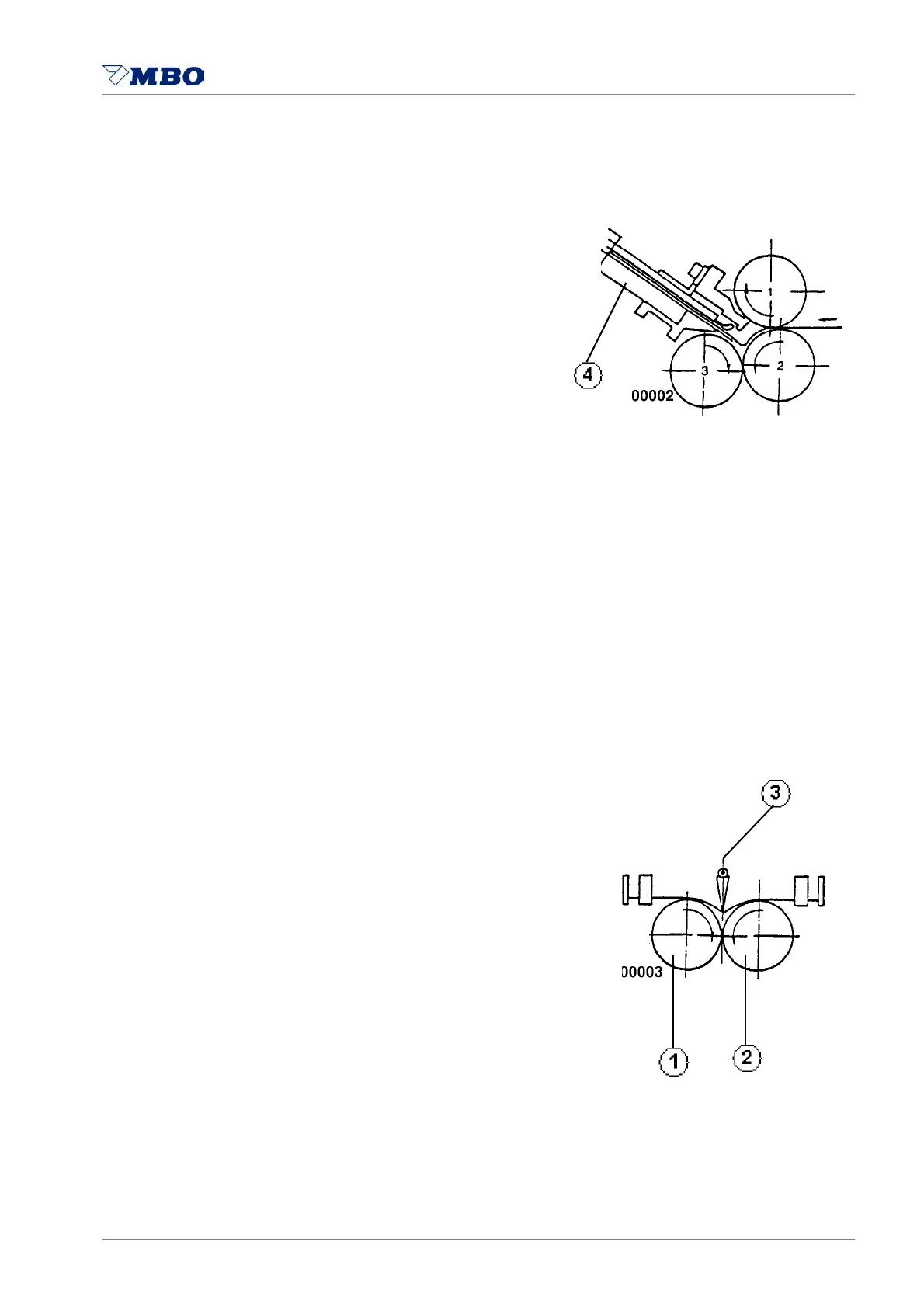

1.7 Buckle fold:
The principle of buckle fold is that
the sheet is always pushed into
the buckle plate.
Three foldrollers and one buckle plate
are necessary to prepare a buckle fold.
Foldrollers 1 and 2 carry the sheet into
the buckle plate 4 to the sheet stop.
A buckle occurs during transporation
through these foldrollers to the direction
of foldrollers 2 and 3 by which the sheet
is folded through its passage.
1.8 Knife fold:
Two foldrollers 1 and 2 as well
as one knife 3 are necessary
to prepare a knife fold.
The sheet is transported under
the knife to a sheet stop and aligned.
After the knife has been released
it moves the sheet between
the foldrollers where it is folded
during its passage.
