Page 91Alterations reserved Stand 12/2002
Operating Manual
T 700 / T 800.1 - R ENG

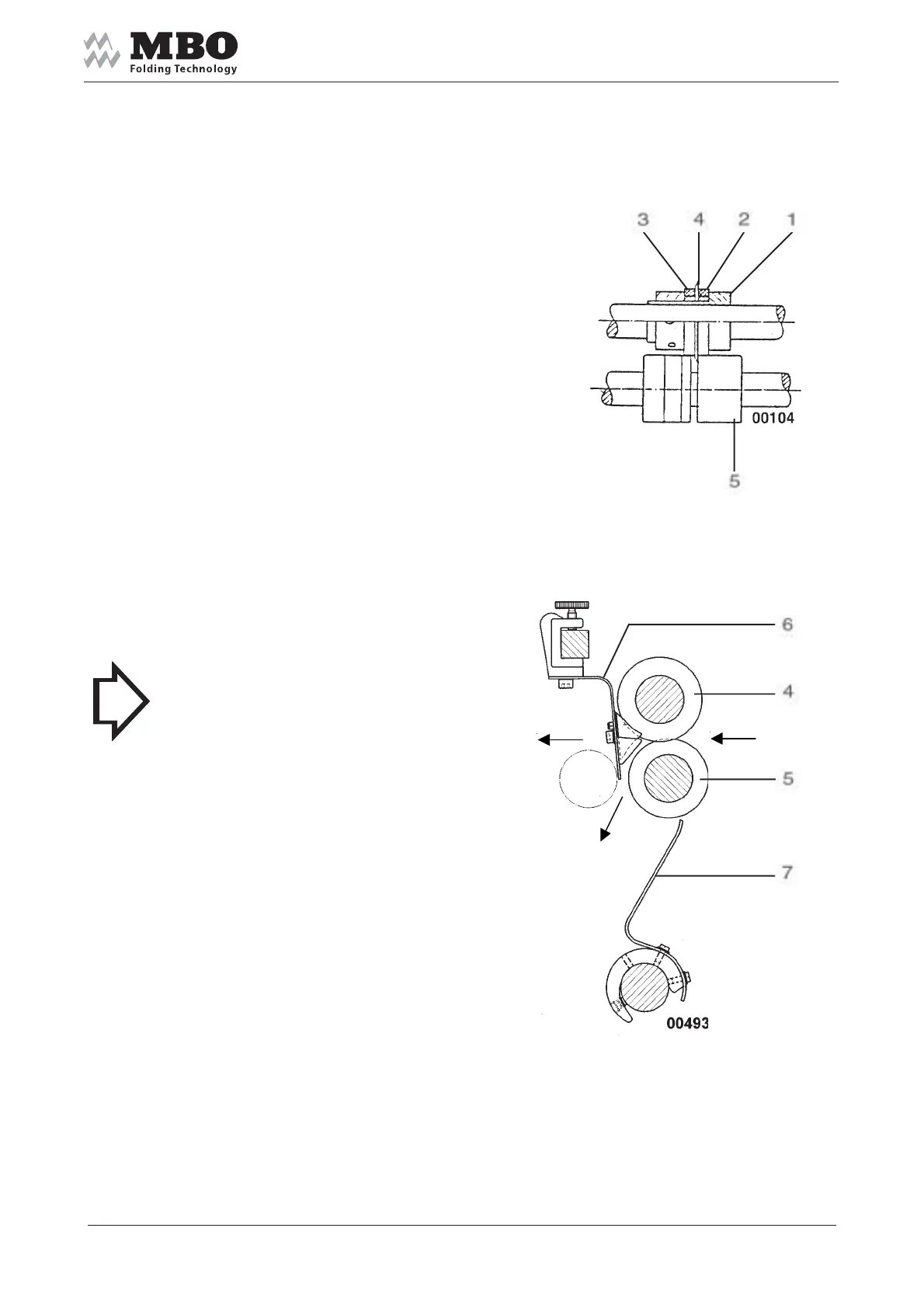

7.3 Edge trim
Install the knife holder 1 with rubber
rings 2 and 3 and cutting knife 4
onto the upper slitter shaft.
Place a distance washer (0.5 mm)
between rubber rings 2 and cutting
knife 4. Place the counter knife 5
at bottom against it.
Paper cut-off is guided between 2
and stripper 6; use also stripper 7.
>NOTICE< If you obtain an angled cut
or badly guided paper trim-off you may
also install the knife holder 1 onto the
lower slitter shaft; the cutting knife 4
into the direction of the folding product.
It mostly depends on the paper
thickness and paper fibre.
Experiences shows that the following
alternative of installation reveals
in the best result:
knife top 4, counter knife bottom 5,
cut edge of top knife 4 into direction
of paper cutoff. Paper cutoff
is guided by rubber ring.
