Seite 51Alterations reserved Stand 05/2008
Operating manual T700/T800.1 - en

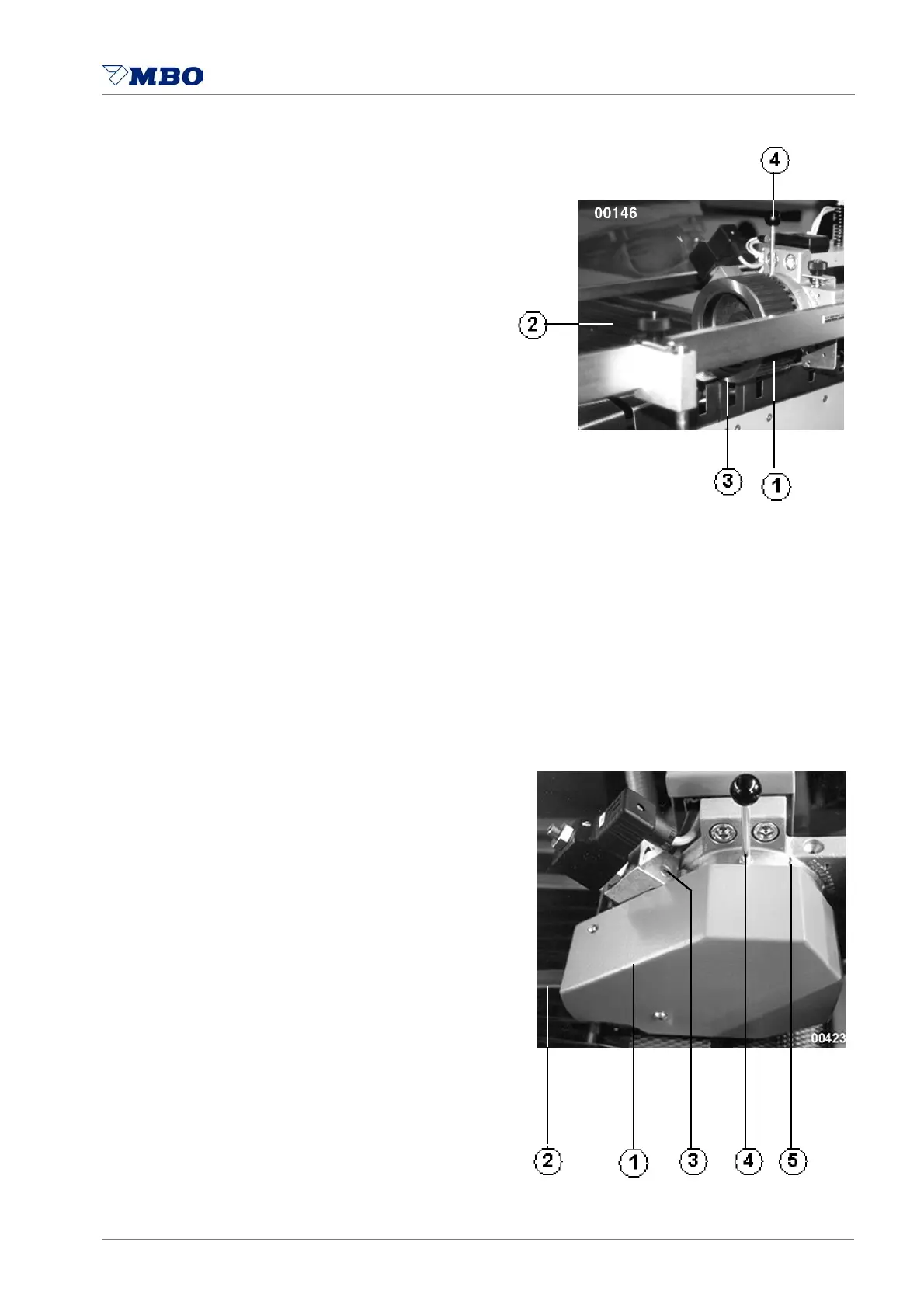

5.3.6 Suction wheel
The suction wheel 1 is carrying
the sheets onto the register table 2.
Point of suction 3 should be on the
lowest position of the suction wheel;
set lever 4 into vertical position.
If sheets tend to roll down:
point of suction should be at
the front (push lever 4 to the right).
If sheets tend to roll up:
point of suction should be at
the rear (push lever 4 to the left).
5.3.7 Vacu-Infeed (Option)
The Vacu-Infeed 1 transports
the sheets onto the register table 2.
The power of vacuum for various
types of paper can be adjusted
through the red screw 3,
use scale +/-
Depending on the sheets tendency
to roll the point of suction can be set
forward or backward through lever 4.
The red markings 5 indicate
the position.
