6.1.2 Crossfold

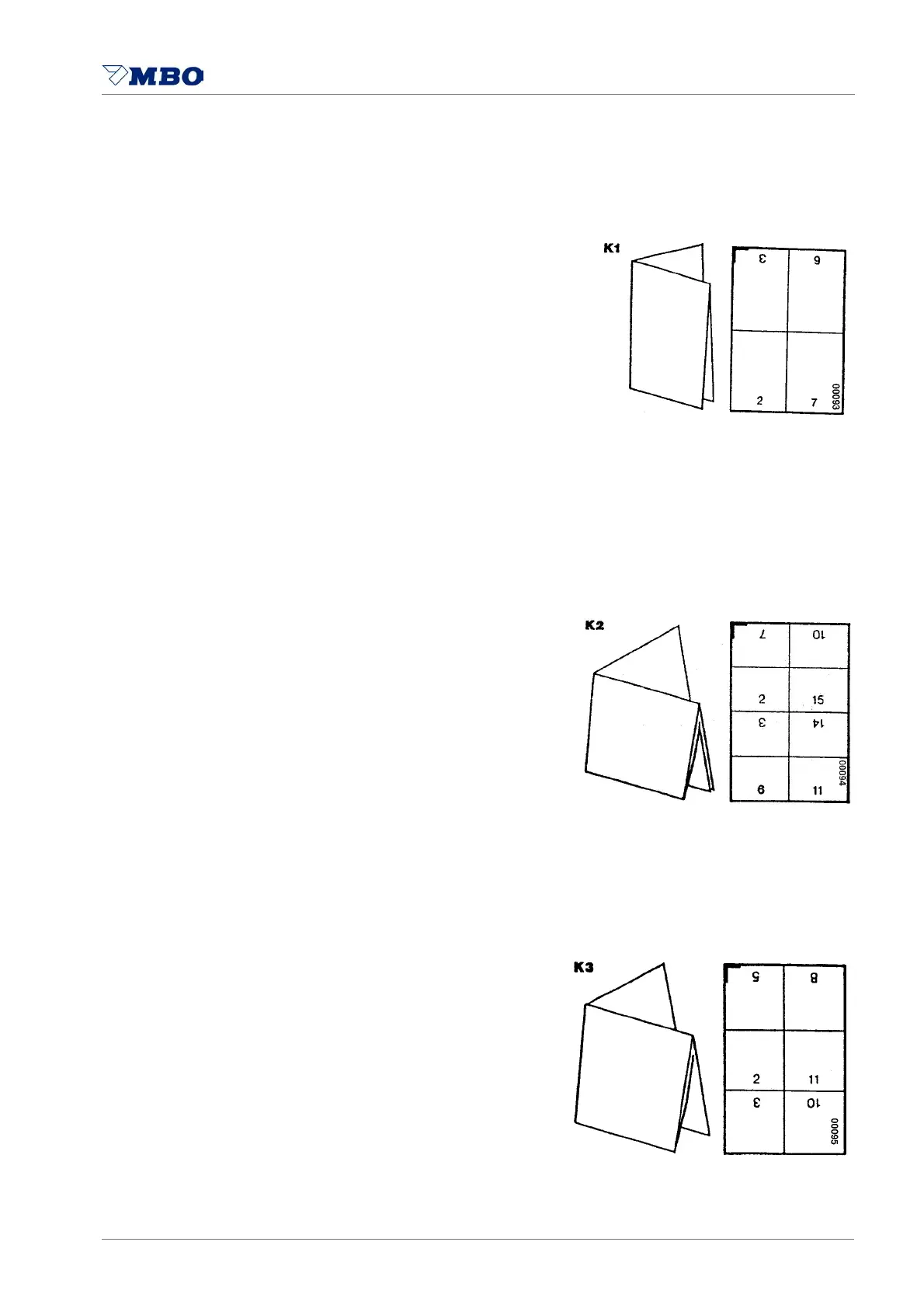

K 1 1 x parallel and 1 x crossfold (double folding), i.e. 8 pages
See item P 1 for set of parallel fold.
Set of crossfold:
Adjust the foldroller 1 to double,
and the remaining foldrollers and slitter
shafts to quadruple thickness of paper.
Set the sheet stop of buckle plate
at crossfold unit to ½ of the sheet width.
The remaining buckle plates are
replaced by sheet deflectors.
K 2 2 x parallel and 1 x crossfold, i.e. 16 pages
See item P 2 for set of parallel fold.
Set of crossfold:
Adjust the foldroller 1 to quadruple,
and the remaining foldrollers and slitter
shafts to octuple thickness of paper.
Set the sheet stop of buckle plate at
crossfold unit to ½ of the sheet width.
The remaining buckle plates are
replaced by sheet deflectors.
K 3 2 x parallel (letter fold) and 1 x crossfold, i.e. 12 pages
See item P 3 for setting of parallel fold.
Setting of crossfold:
Adjust foldroller 1 to triple thickness
of paper and the remaining foldrollers
and slitter shafts to sextuple thickness
of paper. Set the sheet stop of buckle
plate at crossfold unit to ½ of the sheet
width. The remaining buckle plates
are replaced by sheet deflectors.
