Seite 86
Alterations reserved
Stand 05/2008
Operating manual T700/T800.1 - en

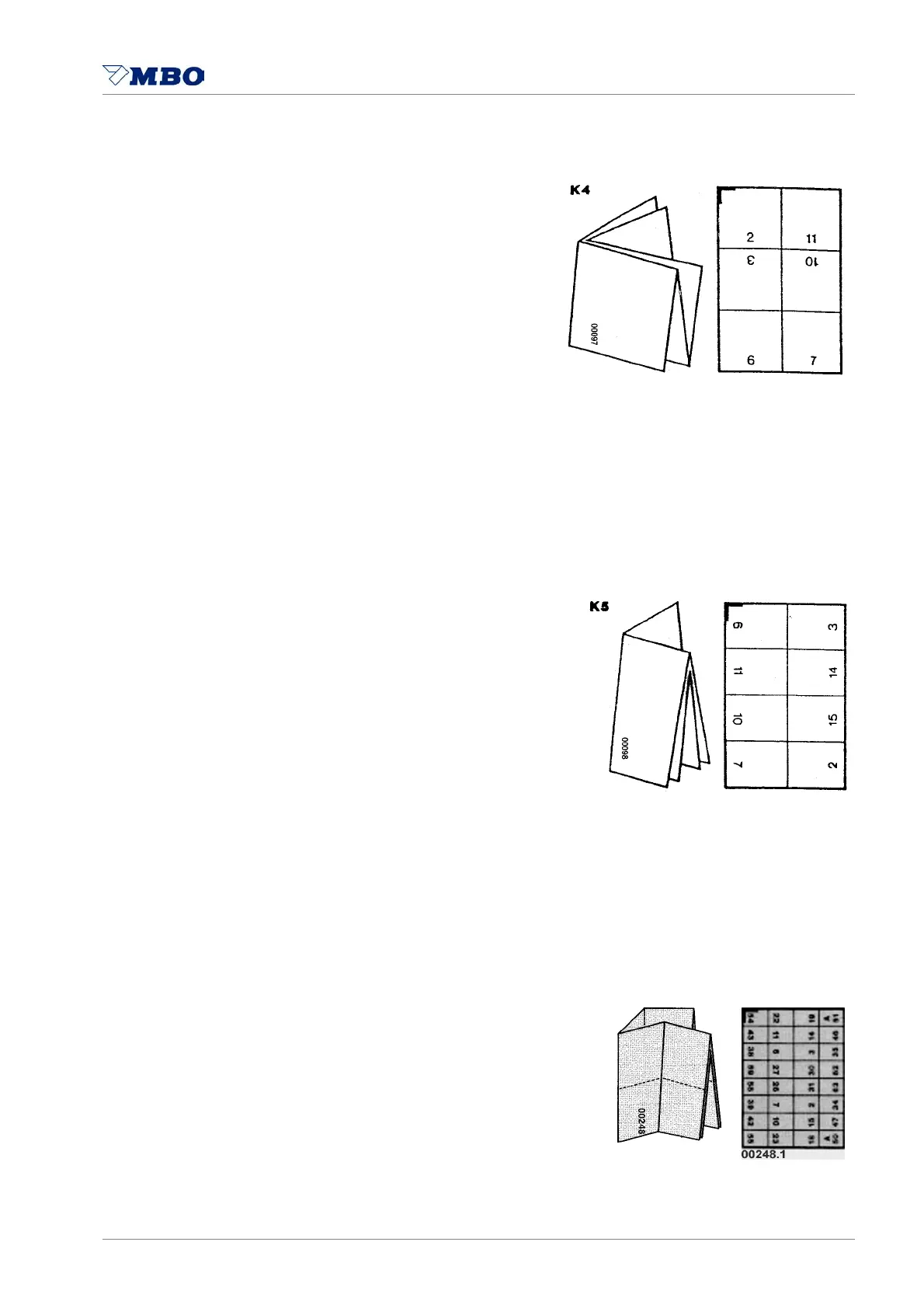

K 4 2 x parallel fold (accordian) and 1 x crossfold, i.e. 12 pages
See item P 4 for setting
of parallel fold.
Setting of crossfold:
Adjust foldroller 1 to triple thickness
of paper and the remaining foldrollers
and slitter shafts to sextuple thickness
of paper. Set the sheet stop of buckle
plate at crossfold unit to ½ of the sheet
width. The remaining buckle plates
are replaced by sheet deflectors.
6.1.3 Threefold
K 5 1 x parallel, 1 x cross and 1 x threefold, i.e. 16 pages
See item K 1 for setting
of parallel and crossfold.
Setting of threefold:
Adjust foldroller 1 to quadruple
thickness of paper and the remaining
foldrollers and slitter shafts to octuple
thickness of paper. Set the sheet stop
of buckle plate at threefold unit
to ¼ of the sheet length.
The remaining buckle plates are
replaced by sheet deflectors.
K 6 1 x parallel, 1 x cross and 2 x threefold (2 x 32 pp two-up production)
See item K 1 for setting
of parallel and crossfold.
Setting of threefold:
Adjust foldroller 1 to quadruple, foldroller
2 to octuple and the remaining
foldrollers and slitter shafts to
sixteenfold thickness of paper. Sheet
stops at threefold unit: buckle plate 1 to
¼ and buckle plate
2 to 1/8 of sheet length.
The remaining buckle plates are
replaced by sheet deflectors.
