5.4.2 Photocells (Standard)

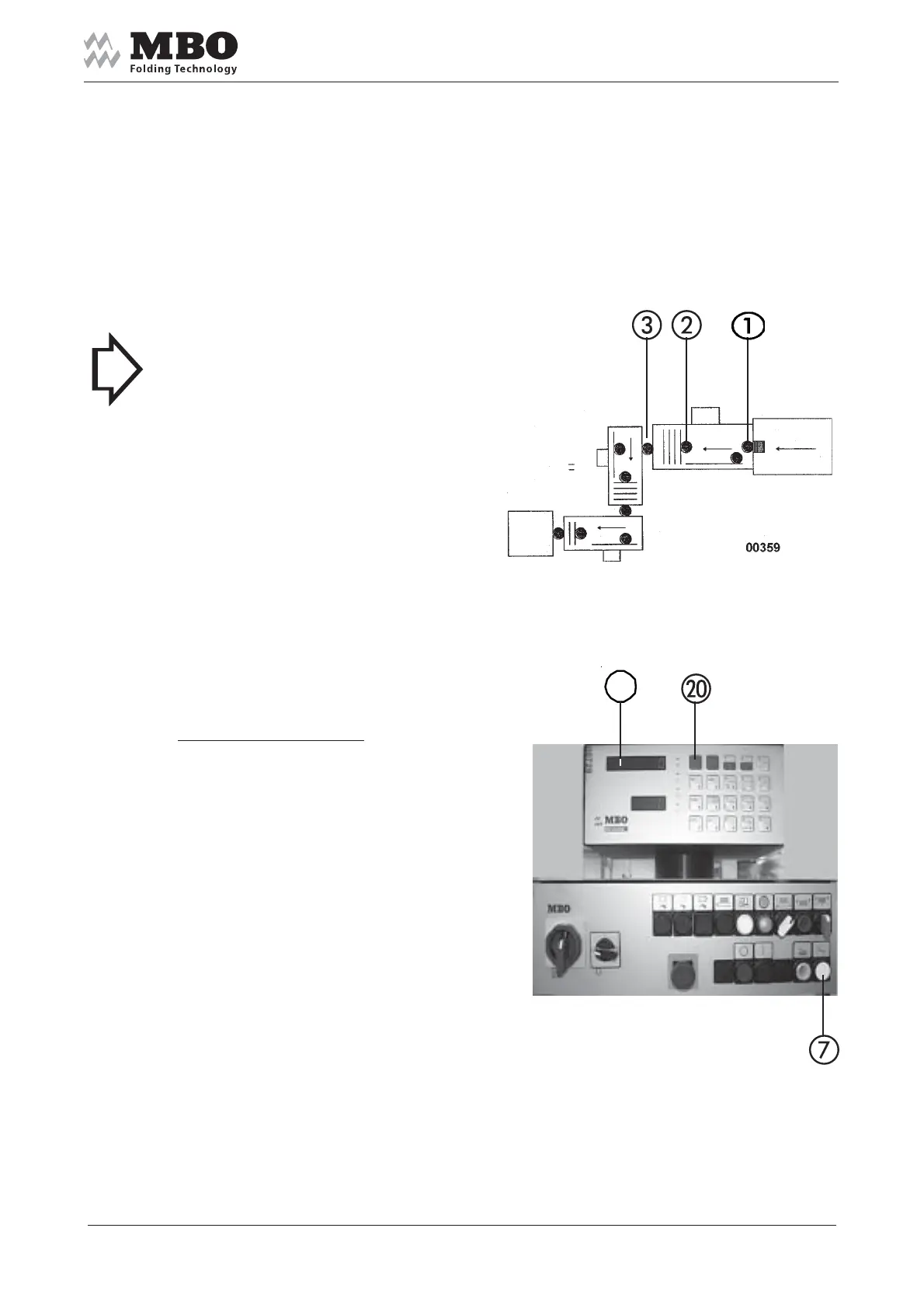

Photocell 1 controls the sheet infeed at suction wheel / the Vacubelt
and is counting the infeeded sheets.
Photocell 2 controls the infeed of parallel unit and calculates the sheet or suction length.
Photocell 3 controls the exit of parallel unit and counts the sheets at exit.
> NOTICE < The machine will stop
if one sheet fails to pass one of these
photocells at the exact calculated time
or is passing this photocell
longer than calculated.
The MC-Control will display
an ERROR REPORT 21.
It will show the position of the error
- see also Operating Manual
attached separately.
Calibration of photocells:
Adjust the machine completely
(folding length, foldrollers, etc.)
and push buttons 7 and 20
simultaneously.
A “learning sheet” is passing the machine. The photocells detect lengths and times of
passage. This will automatically program sheet control and sheet monitoring.
