4.1.9 Drive belt for register table on mobile folding units

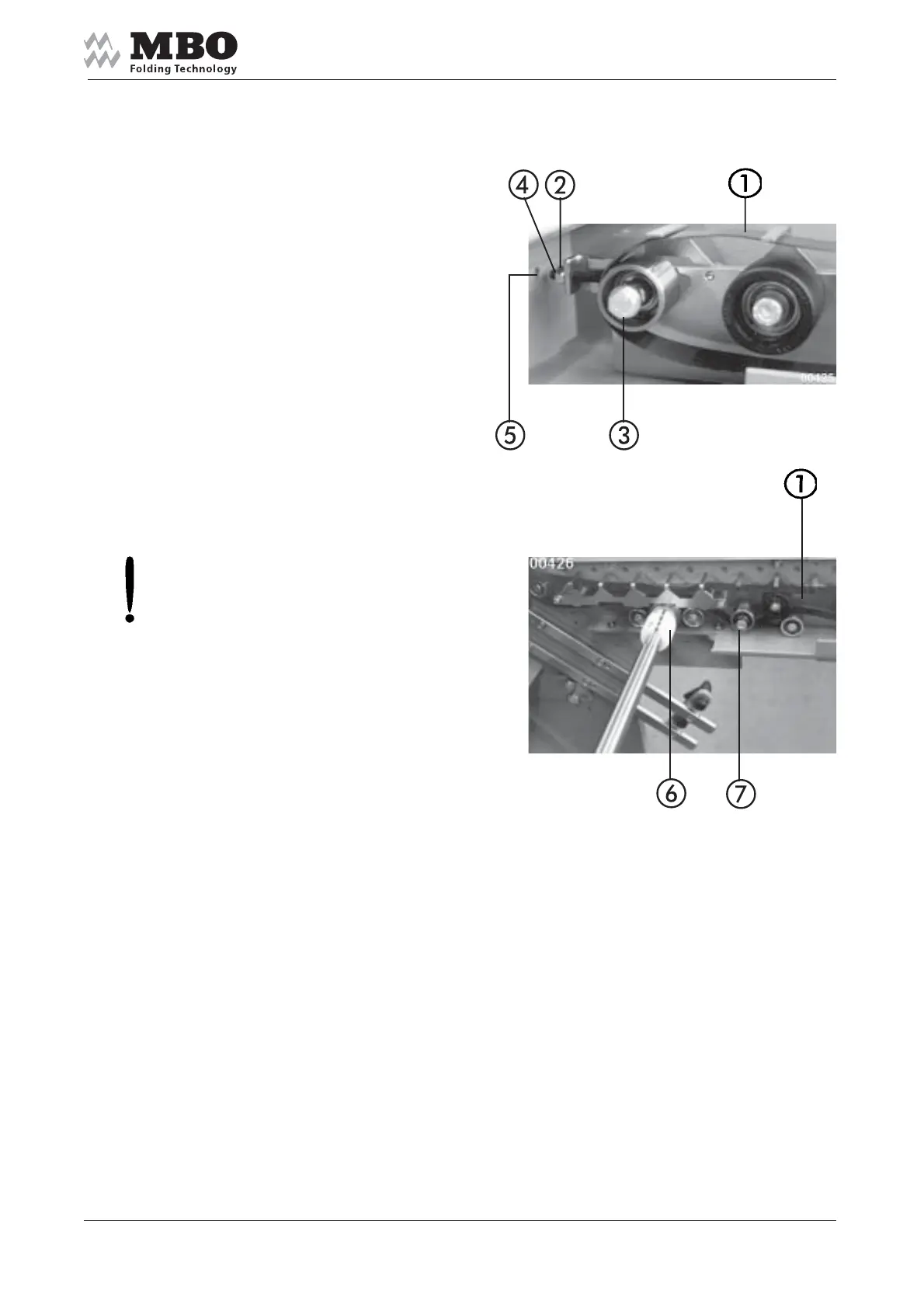

Strain tightening of the drive belt 1
at bottom side of register table:
Loosen the screws 2 and 3,
insert screw 4 from the external
side through the opening 5.
Retighten the screws 2 and 3
Exchange: Relieve the screw 4
and displace the coupling 6,
re-thread drive belt 1.
The installation occurs
in the opposite sequence.
> ATTENTION < Centre the
tape for its centric running:
turn the red marked screw 7.
Fasten the external cap nut.
Refasten screw 6 and nut 7.
