6.0 Instructions to the user
6.1 Setting instruction for the most commonly folds

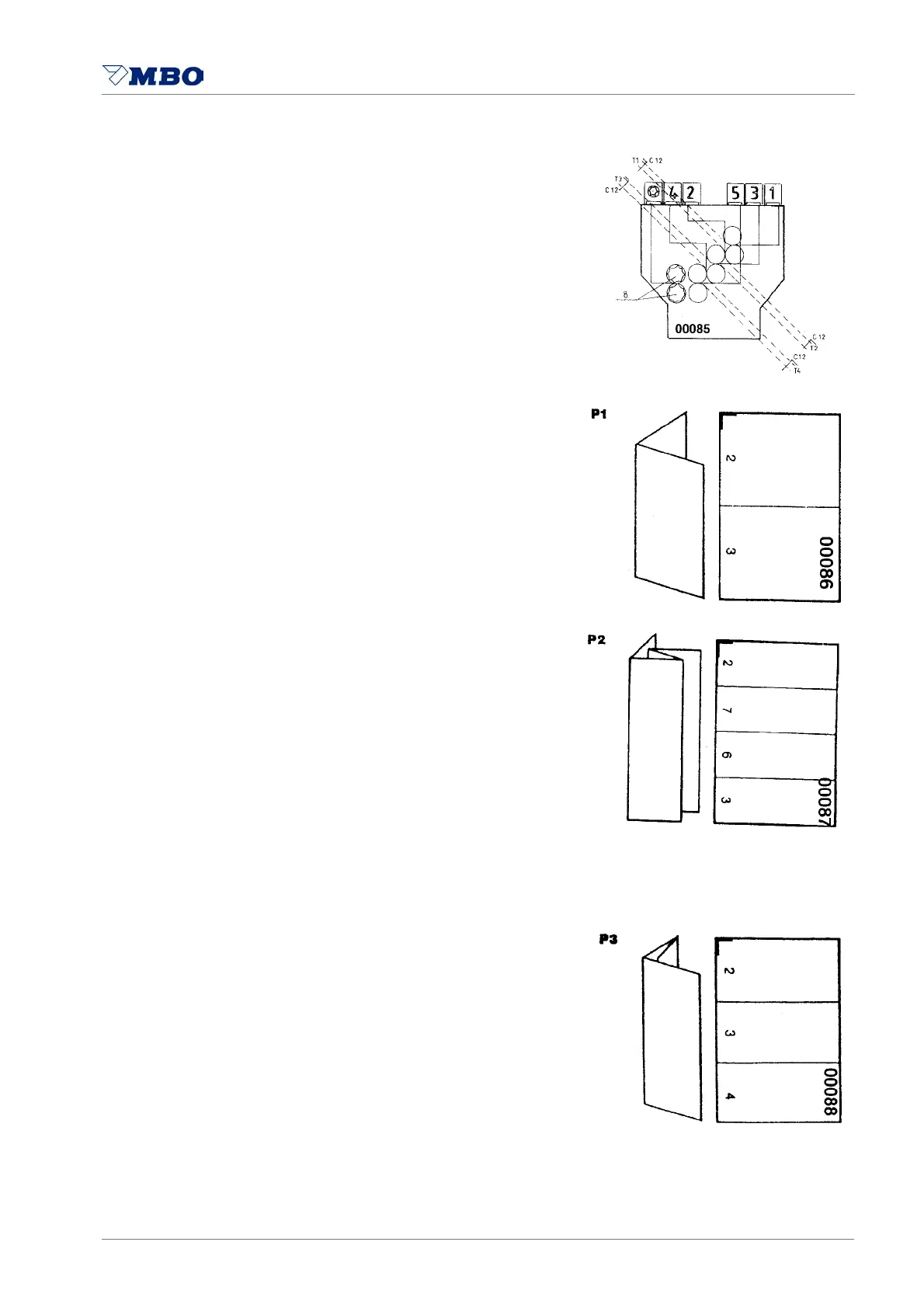

6.1.1 Parallelfold
1-5 = 1st - 5th set of foldrollers
8 = set of slitter shafts
P 1 1 x parallel fold, i.e. 4 pages
At 1, set for single paper thickness,
and from 2 thru 8 set to double
paper thickness.
Set sheet stop C 12 at 1st buckle plate
to 1/2 of sheet length. The buckle plates
2- 4 are replaced by sheet deflectors.
P 2 2 x parallel fold, i.e. 8 pages
At 1 set for single, and at 2 set for
double paper thickness, and at 3 to 8
set to quadruple paper thickness.
Set sheet stop C 12 to 1/2 of sheet
length at 1st buckle plate and
1/4 of sheet length at 2nd buckle plate.
Buckle plates 3 and 4 are replaced by
sheet deflectors.
P 3 2 x parallel fold (letter fold), i.e. 6 pages
I. With two top buckle plates
(T1 and T3), set foldrollers 1-3
to single and foldrollers 4-8 to
triple thickness of paper. Set sheet stop
C 12 at 1st and 3rd buckle plate to 1/3
of sheet length. Buckle plates 2 and 4
are replaced by sheet deflectors.
II. With one top (T1) and one bottom
(T2) buckle plate set the foldrollers 1
and 2 for single and foldrollers 3-8 for
triple thickness of paper. Set sheet stop
C 12 at 1st buckle plate to 2/3 of sheet
length, at 2nd plate to 1/3 of sheet
length. Buckle plates 3 and 4 are
replaced by sheet deflectors.
