Page 29Alterations reserved Stand 12/2002
Operating Manual
T 700 / T 800.1 - R ENG

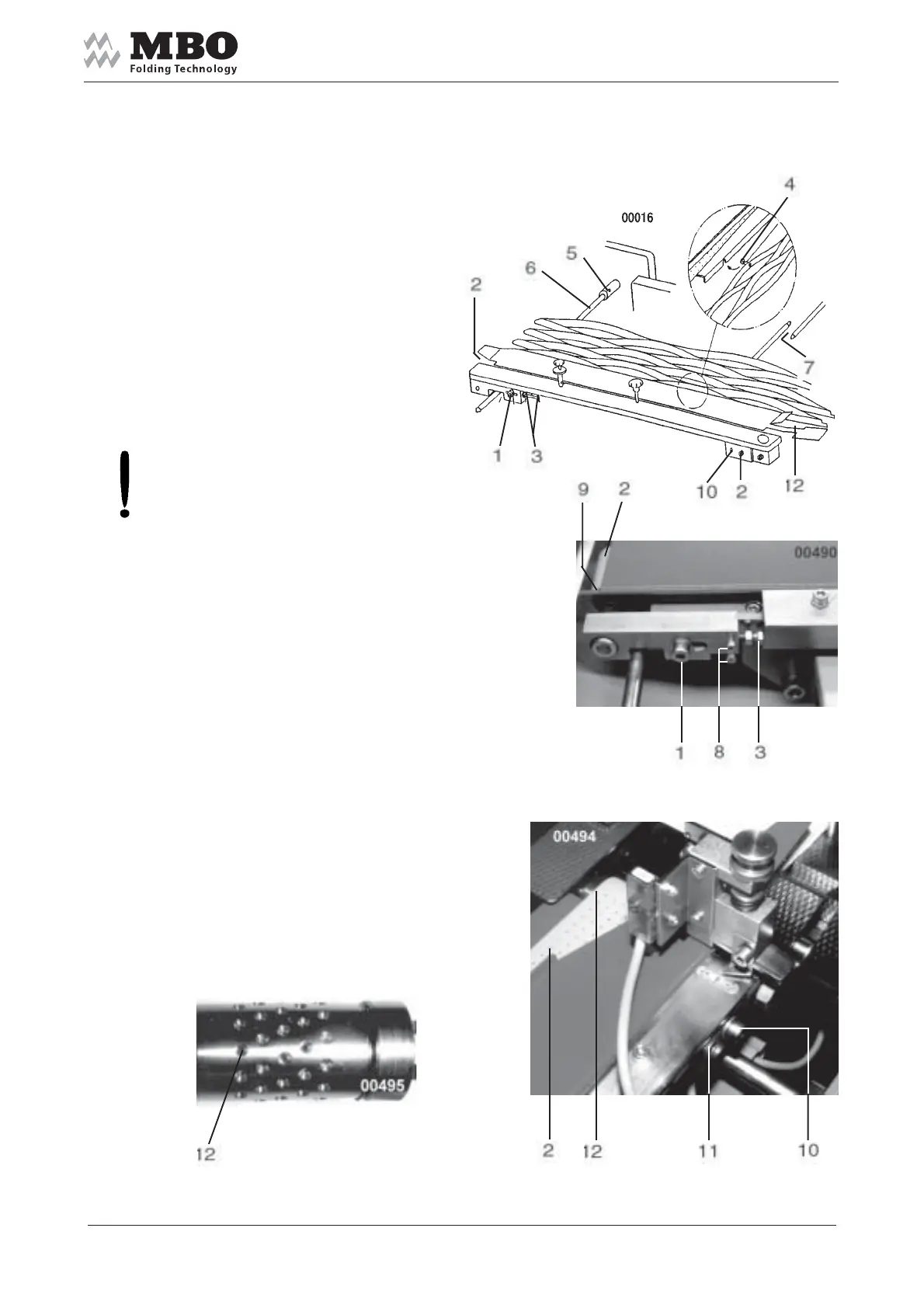

4.1 Exchange and/or tensioning of belts/tapes
4.1.1 Register belt at register table
Loosen the screw 1 and release tension
of register belt 2 through screws 3.
Unhinge the lattice-type alignment
table at 4. Loosen the screw 5
and remove rod 6.
Take the register belt off
the rollers and thread out at 7.
Insert the new register belt
in the opposite sequence.
>ATTENTION< Adjust new tape:
Loosen the screw 1 and
adjust the new tape 2
flush left onto roller 9 through
screws 8. Refasten screw 1.
Thereafter, loosen screw 10 and
adjust new tape 2 through screw 11.
Make sure that track of
punched holes in the register belt 2
are coincidentally to the
bore holes of the vacuum roller 12.
Refasten the screw 10.
Check:
Check with paper strip in
the area of 12 whether vacuum
is still provided - activate
pressure-/vacuum pump!
