Operating Manual
T 700 / T 800.1 - FP ENG

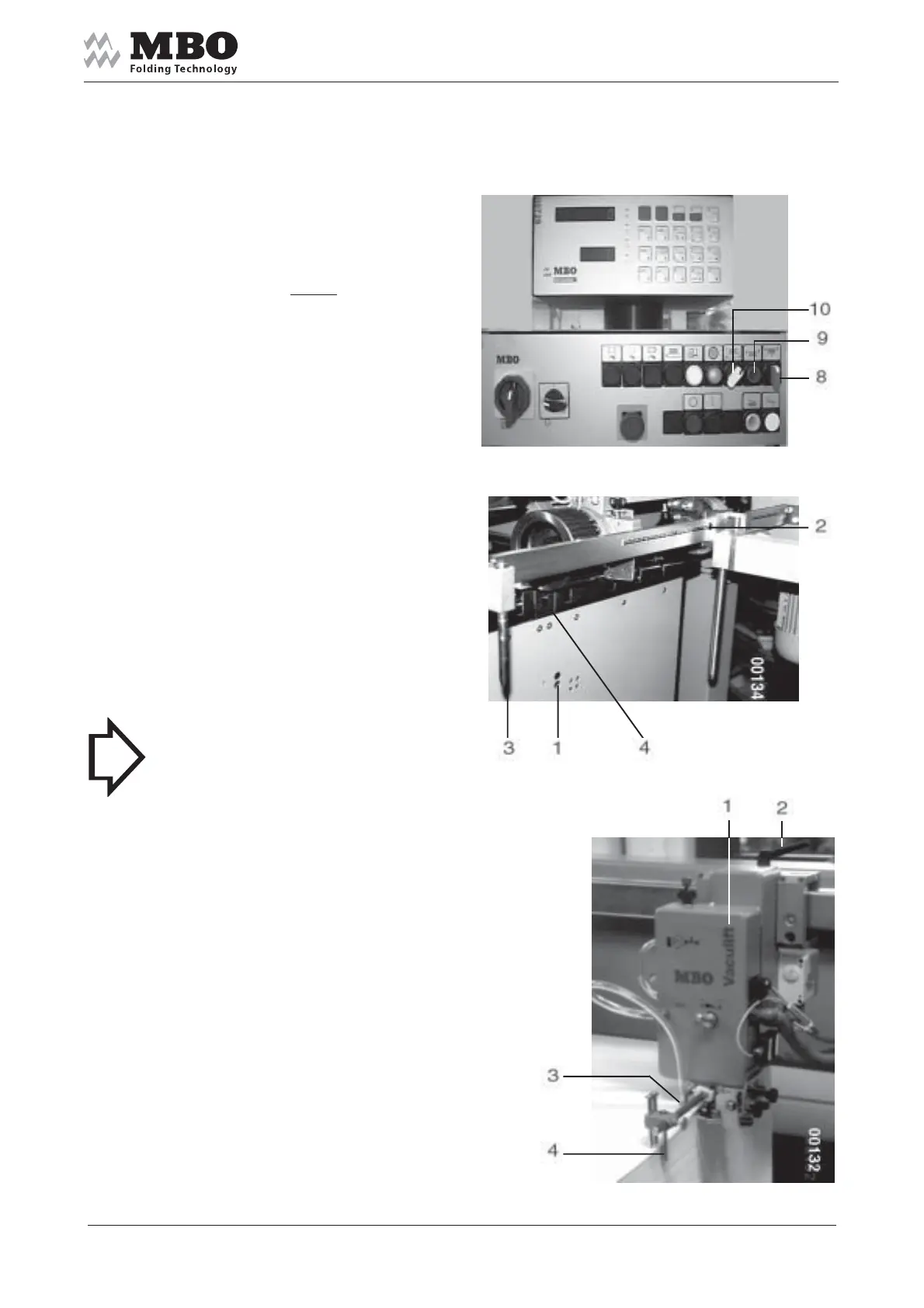

5.2 Feeder
5.2.1 Manual piling
Switch 8 must show the position
”DOWN”; push button 9 must
be lightening, selector switch 10
must indicate to broken line !
Pile table is moving down until
the photocell 1 is uncovered;
it remains automatically in an
ergonomically favourable position.
Set the pile stop 2 to appropriate
size (½ of sheet width)
prior loading the table (scale).
Load pile table. Table moves
automatically down until photocell 1
is released again. Should, however,
the loading is impeded by the position
of the „Vaculift“, lift up support bar.
>NOTICE< Sheets which cling
or stick together should be aerated
sufficiently prior loading!
Place pin 3 to the pile edge.
A height adjustable retaining plate 4
avoids an eventual forwarding
of the aerated sheets.
Prior you move UP the pile table:
Place the feeder head „ Vaculift“ 1
above the pile, position with clamping
lever 2. Rear edge of suckers 3
approximately 2 mm inside,
and stop pins 4 at
the rear edge of pile.
