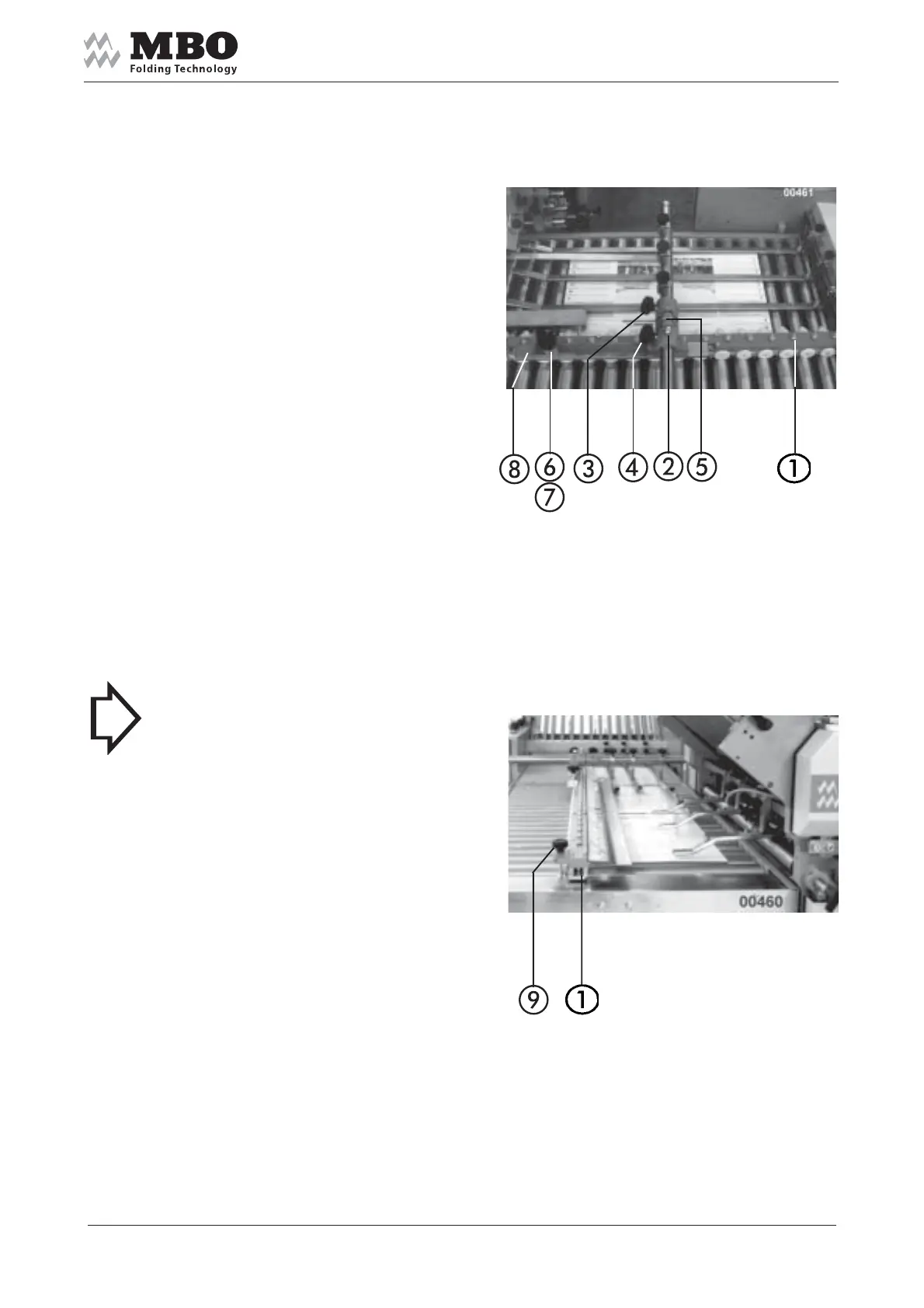

5.6.5 Sheet transportation
Loosen grip 9.
Set the sidelay 1 with setting element 2
into appropriate position.
Fine adjustment: fasten grip 3,
open grip 4 and adjust with grip 5.
Set the angularity of the sidelay 1
to the foldrollers through grip 6
and excenter 7; read-off values
at mm-scale 8 +/-.
> NOTICE < After completion
of all settings at sidelay 1:
Fasten the grip 9.
