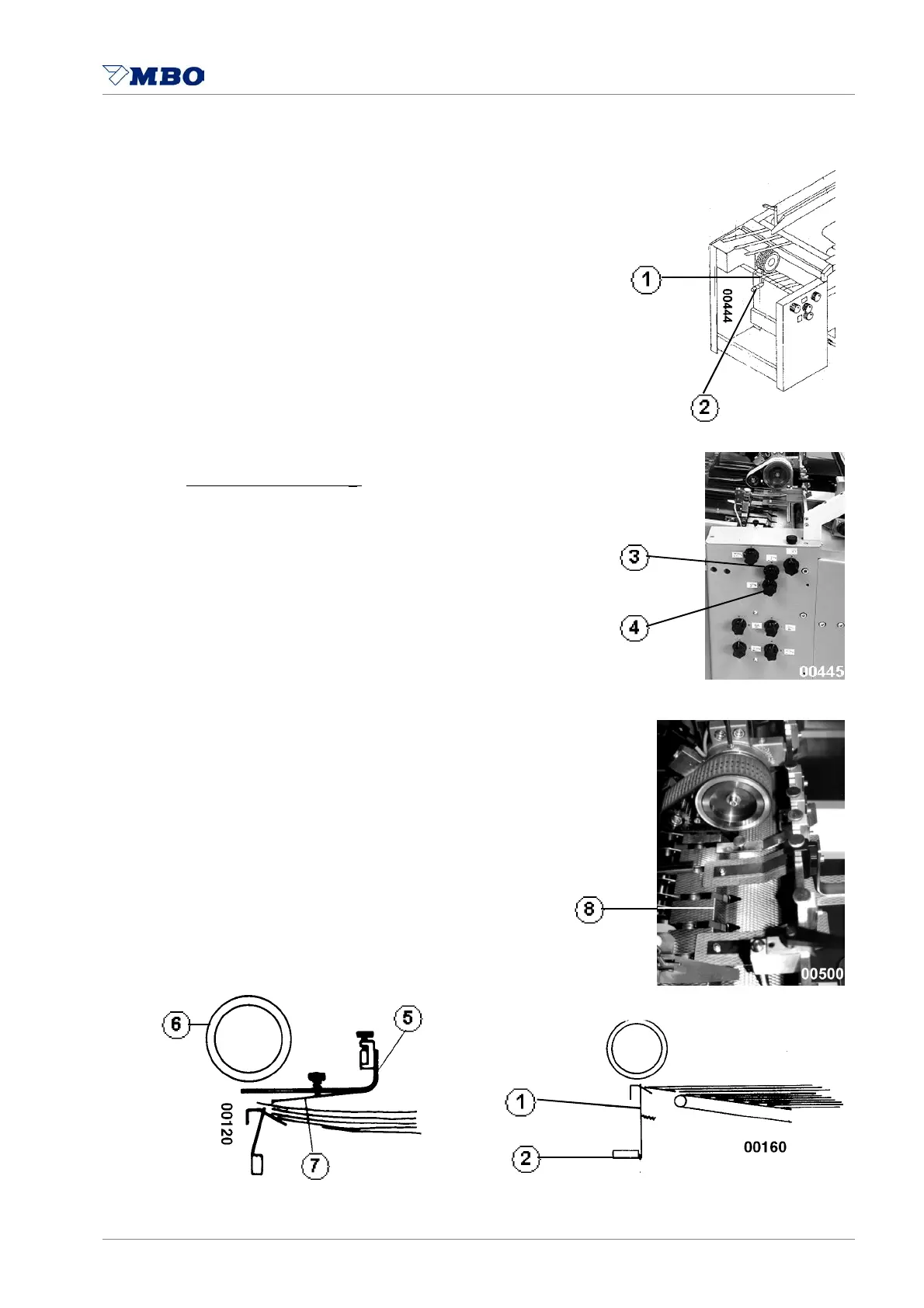

5.3.4 Transport control
The transportation of feeder is
controlled through feeler tongue 1
and sensor 2. The feeler tongue 1
is resting at sensor 2 if no sheets
are processed;
for turn ON of feeder
see para. 5.3.1
The oncoming sheets push
the feeler tongue 1 off from
the sensor 2. This enables
infinite speed reduction.
STOP at approx. 8 mm gap.
Setting of feeler tongue 1:
Horizontally through button 3:
Feeler tongue 1 to front =
more sheets are aerated.
Feeler tongue 1 to rear =
less sheets are aerated.
The front edge of sheet
should stop at 8.
Vertically through button 4:
Feeler tongue 1 downwards
= if sheets tend to roll down.
Feeler tongue 1 upwards
= if sheets tend to roll up.
If sheets tend to roll up:
Use smoother 5 aside
the suction wheel 6.
Hold down sheets which move up
and avoid ”double sheets” through
the adjustable plate spring 7.
