MBO T700 - Drive Tape for Foldrollers and Slitter Shafts (Standard); Main Drive of the Folding Units (Standard)

Page 33Alterations reserved Stand 12/02
Operating Manual
T 700 / T 800 - FP ENG

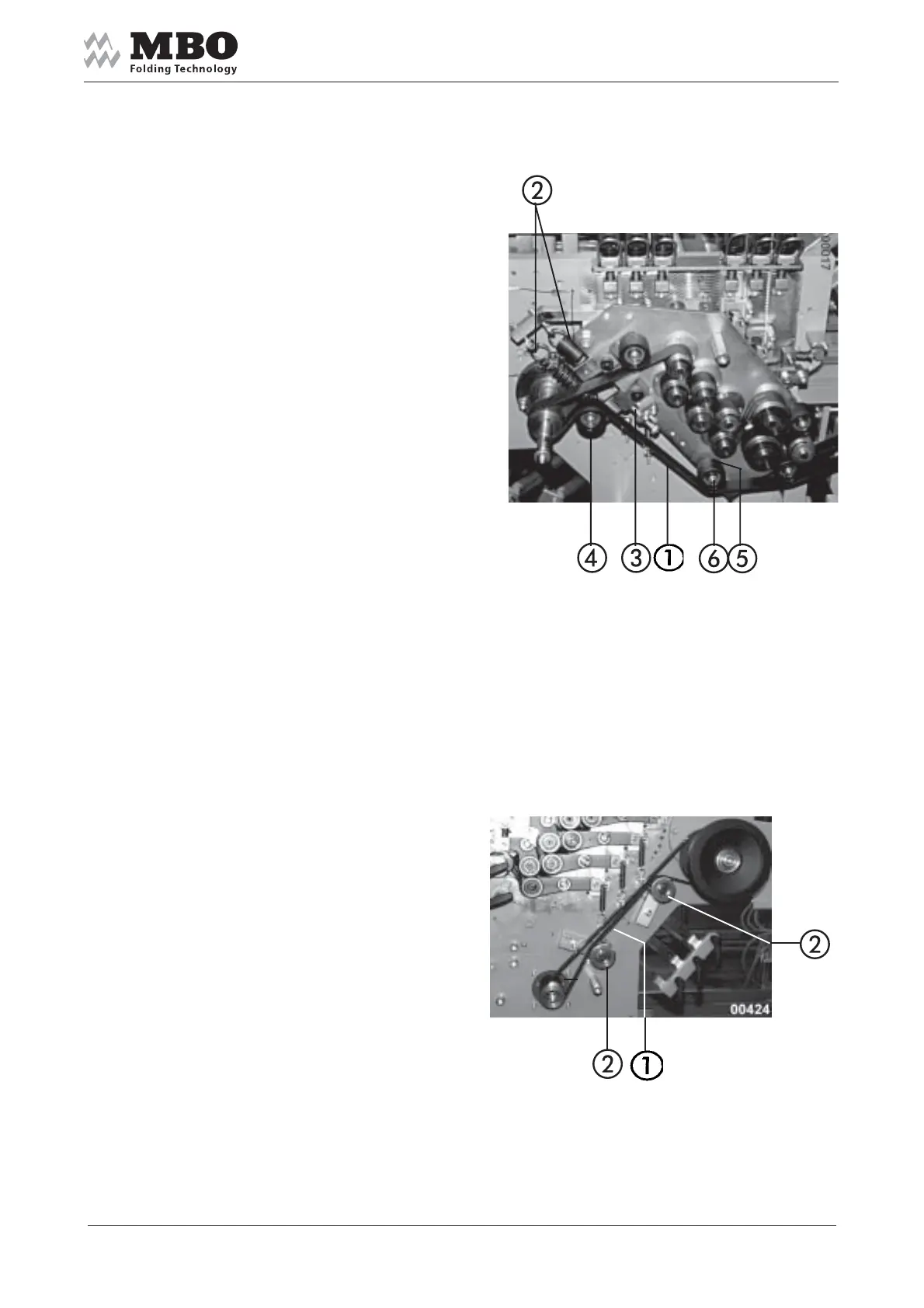

4.1.4 Drive tape for foldrollers and slitter shafts (Standard)
The drive belt 1 is automatically
tensioned by draw spring 2.
Do not use the adjustment screw 3
for belt tensioning.
It should be approximately 1 mm
underneath the tensioning lever 4
if machine is stopped. After loosening
the red nut 6 adjust the centric running
of the drive belt through the excentric
bolt behind the roller 5.
4.1.5 Main drive of the folding units (Standard)
Tension the Poly-V-Belt 1
through tensioning rollers 2
(see photograph).
