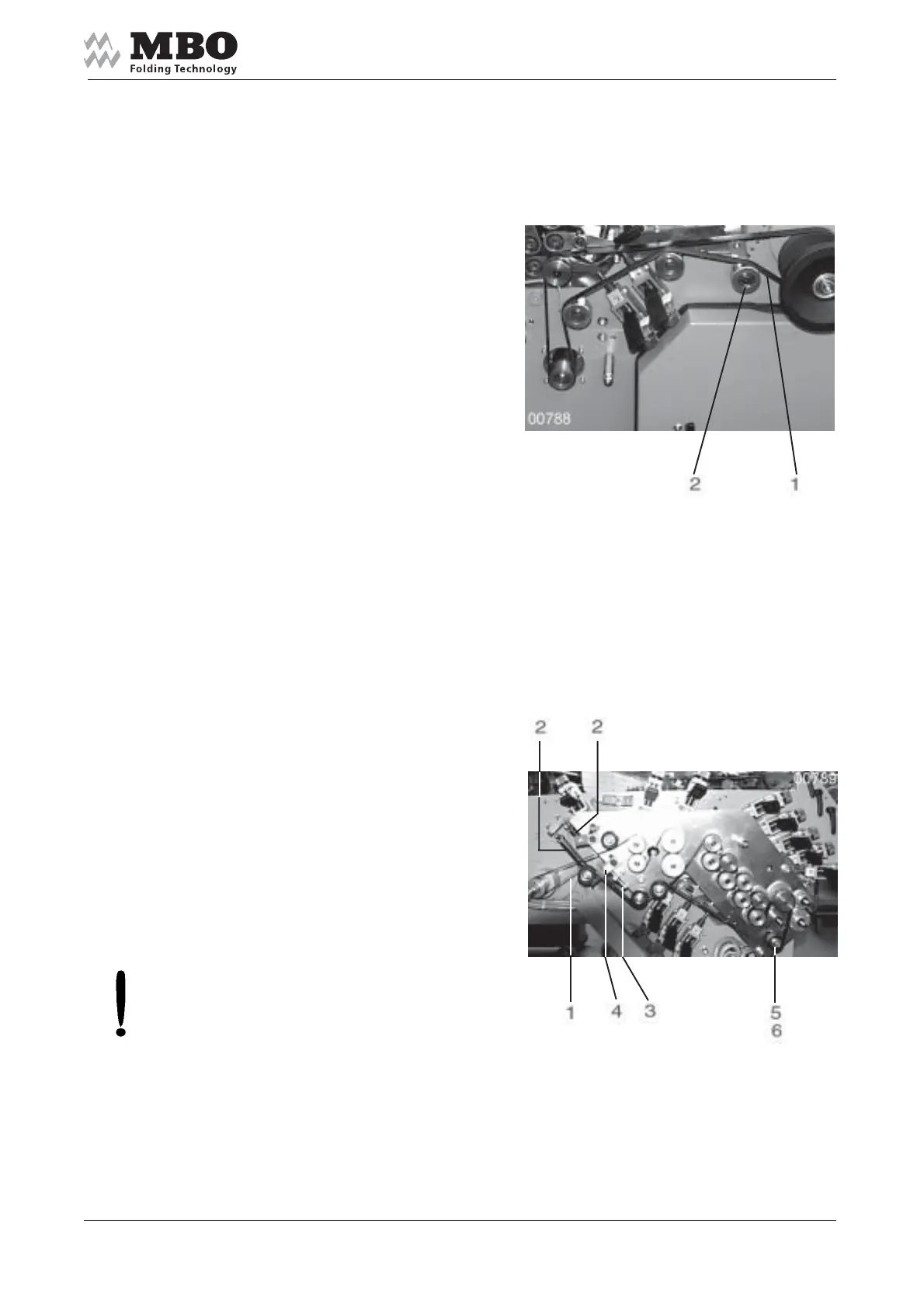

4.1.6 Main drive of the folding units with pre-perforating shafts (option)
Tension the Poly-V-Belt 1
through tensioning roller 2.
4.1.7 Drive tape for foldrollers and slitter shafts – units with pre-perforating shafts (option)
The drive belt 1 is automatically
tensioned by draw spring 2.
Do not use the adjustment screw 3
for belt tensioning.
It should be approximately 1 mm
underneath the tensioning lever 4
if machine is stopped.
>ATTENTION< Centre a new tape 1
for its centric running: after loosening
the nut 6 (marked red) adjust through
the excentric bolt behind the roller 5.
