MBO T700 - Control Panels Overview; Main control panels (Options); Push button control panel

Seite 42
Alterations reserved
Stand 05/2008
Operating manual T700/T800.1 - en
5.2.2 Rapidset

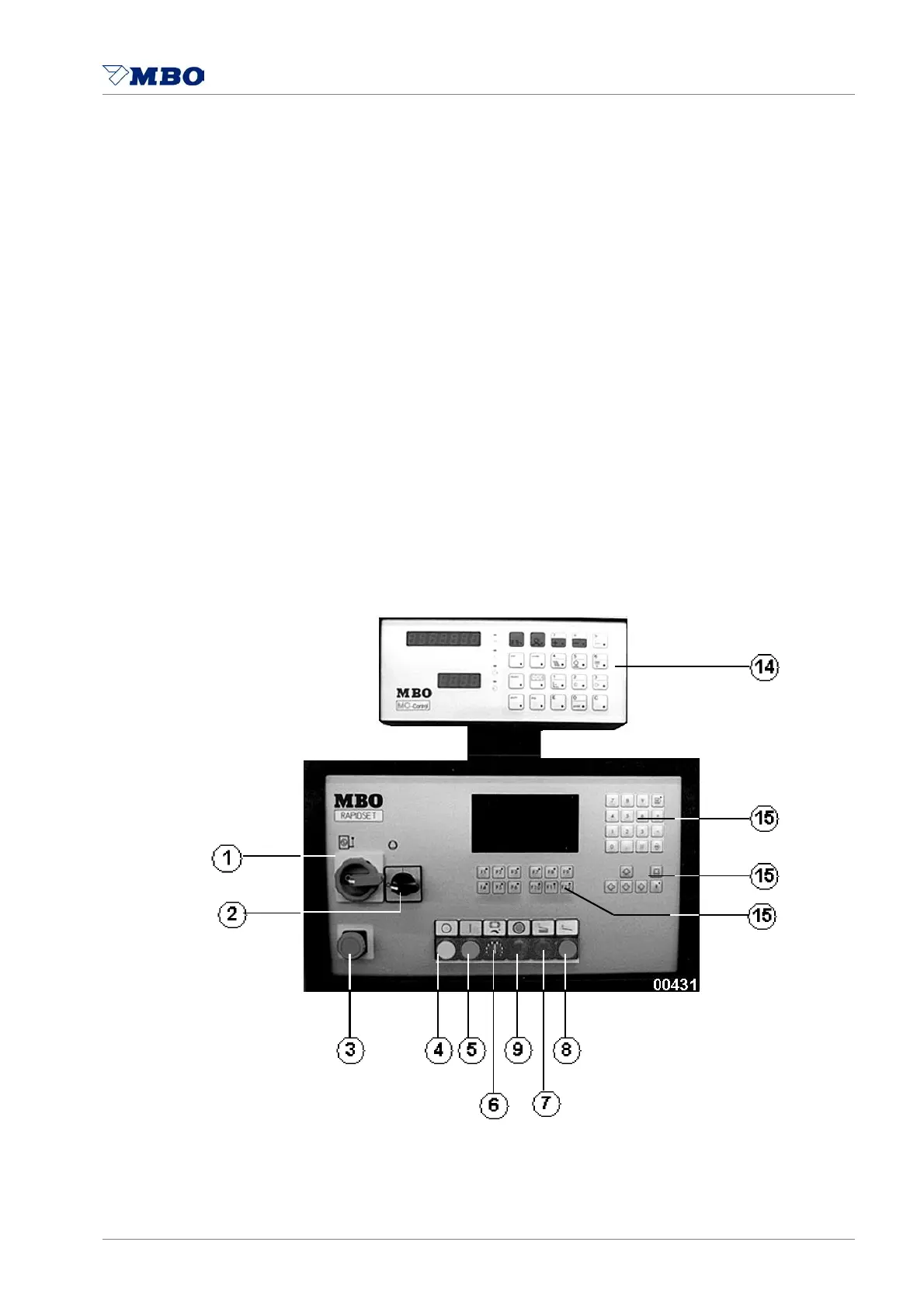

1 MAIN SWITCH
2 ON/OFF switch for AIR PUMP
3 Red mushroom button with locking for EMERGENCY STOP
4 Button to STOP the machine
5 Button to START the machine
6 Potentiometre for electronic speed control
7 Button for SHEET INFEED during PRODUCTION and feeder START/STOP
8 Button for SINGLE SHEET INFEED
9 INDICATOR LIGHT for main drive
14 Batch counter MCC 3 with integrated sheet infeed control „MC“.
See separate Operating Manual „MC Control“ for detailed description.
15 Key board for ”Rapidset”.
See separate Operating Manual „Rapidset“ for detailed description.
