Page 63Alterations reserved Stand 12/02
Operating Manual
T 700 / T 800 - FP ENG

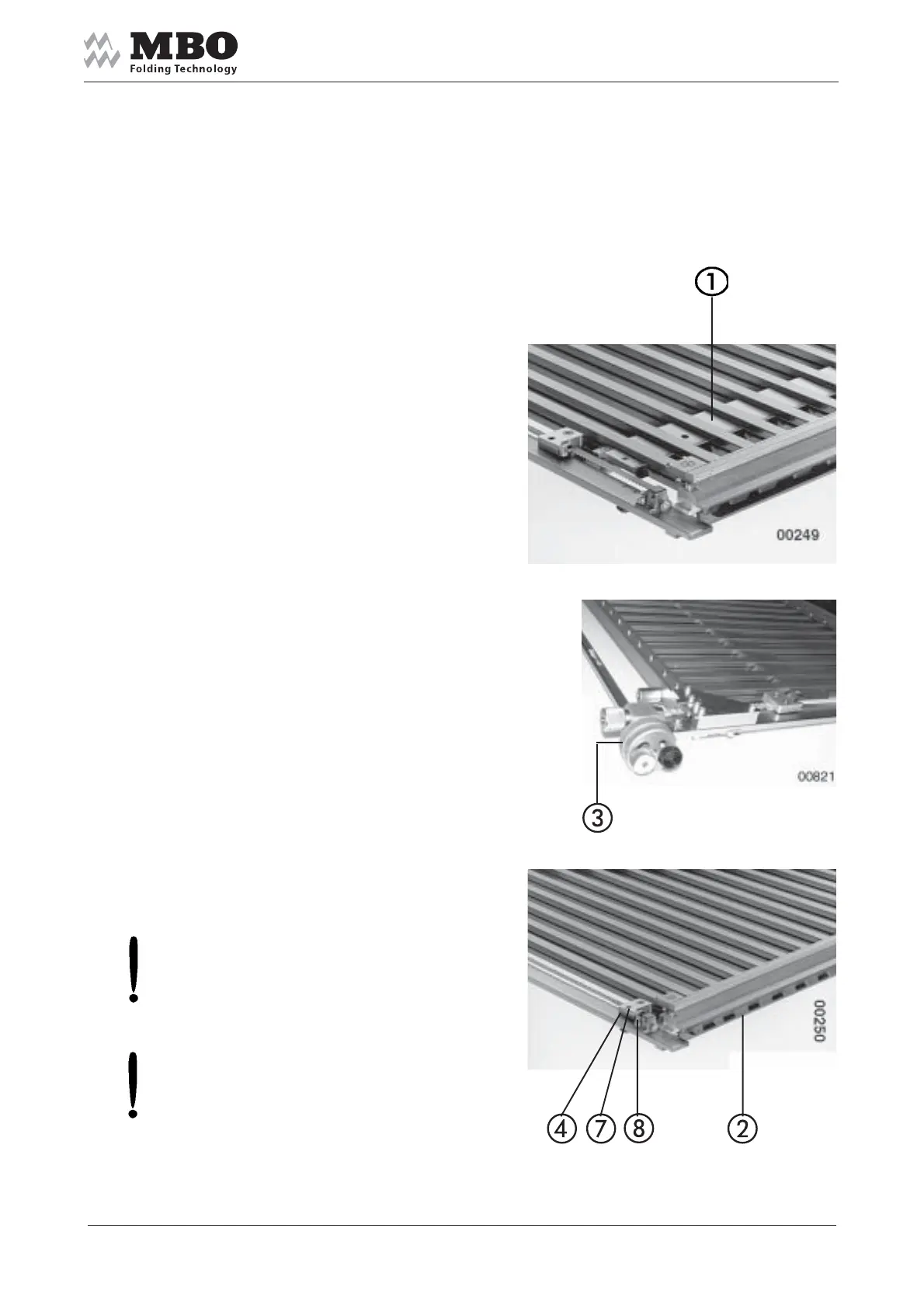

5.5.4 Combination buckle plate KFT (optional)
This type of buckle plate does not require the separate or swiveable sheet deflector. The
buckle plate / deflector does not require to be pulled-off or swivelled for retrofitting.
The sheet stop 1 also serves
as sheet deflector 2.
Function of „Buckle plate“:
See item 5.6.2
Function „Sheet deflector“:
Turn (clockwise) the sheet stop 1
through the adjustment ring 3
into its deepest position 4.
One-sided pull of the sheet deflector
to influence out-of square perforations,
scorings and cuttings
- see also item 5.6.3:
> ATTENTION < The deflector 2
shall not touch the foldrollers!
> ATTENTION < Do not change
the position of screws 7 and 8!
