MBO T700 - Feeder drive belt and chain tensioning; Drive belt for register table on mobile folding units; Chain of feeder

Seite 34
Alterations reserved
Stand 05/2008
Operating manual T700/T800.1 - en
4.2 Lubrication / Cleaning
> NOTICE < Generally, the machine should be cleaned after each job, particularly moveable
parts which have been changed due to change of sheet size, because heavy dust may cause
reduction of function.

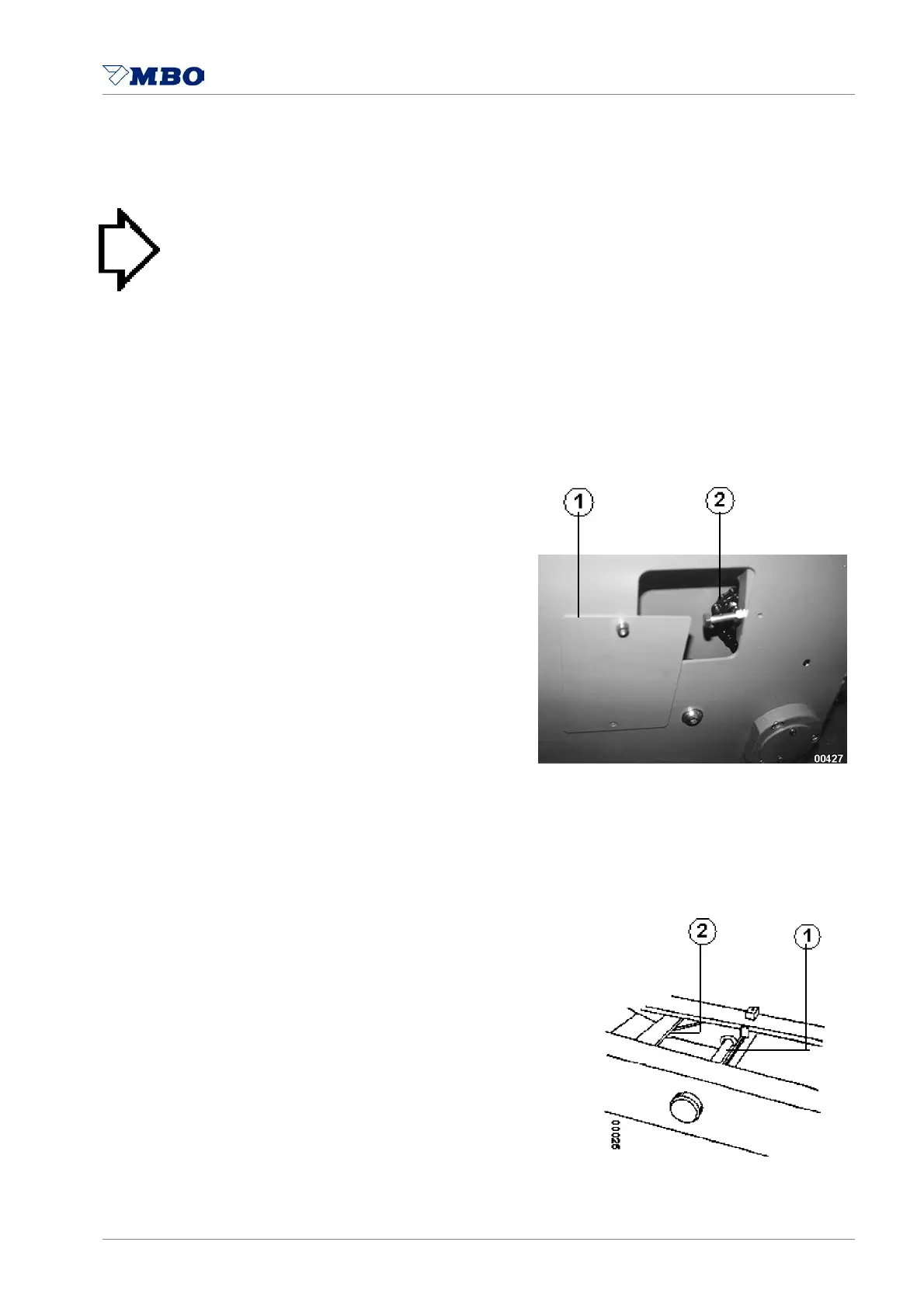

4.2.1 Feeder
Remove cover 1 at drive side
and slighty lubricate the
chain 2 with oil occasionally.
Replace cover 1.
4.2.2 Register table
Clean the guide shaft for sheet size
adjustment 1 as well as drive shaft 2
off from dust and provide them
with a slight touch of oil.
