5.2.7 Small sheet-size device
This device is only used for sheets
of less than 17 cm of length:
Turn off „Vaculift“ through
toggle switch 1, move it to the rear
or lift the support bar 2.

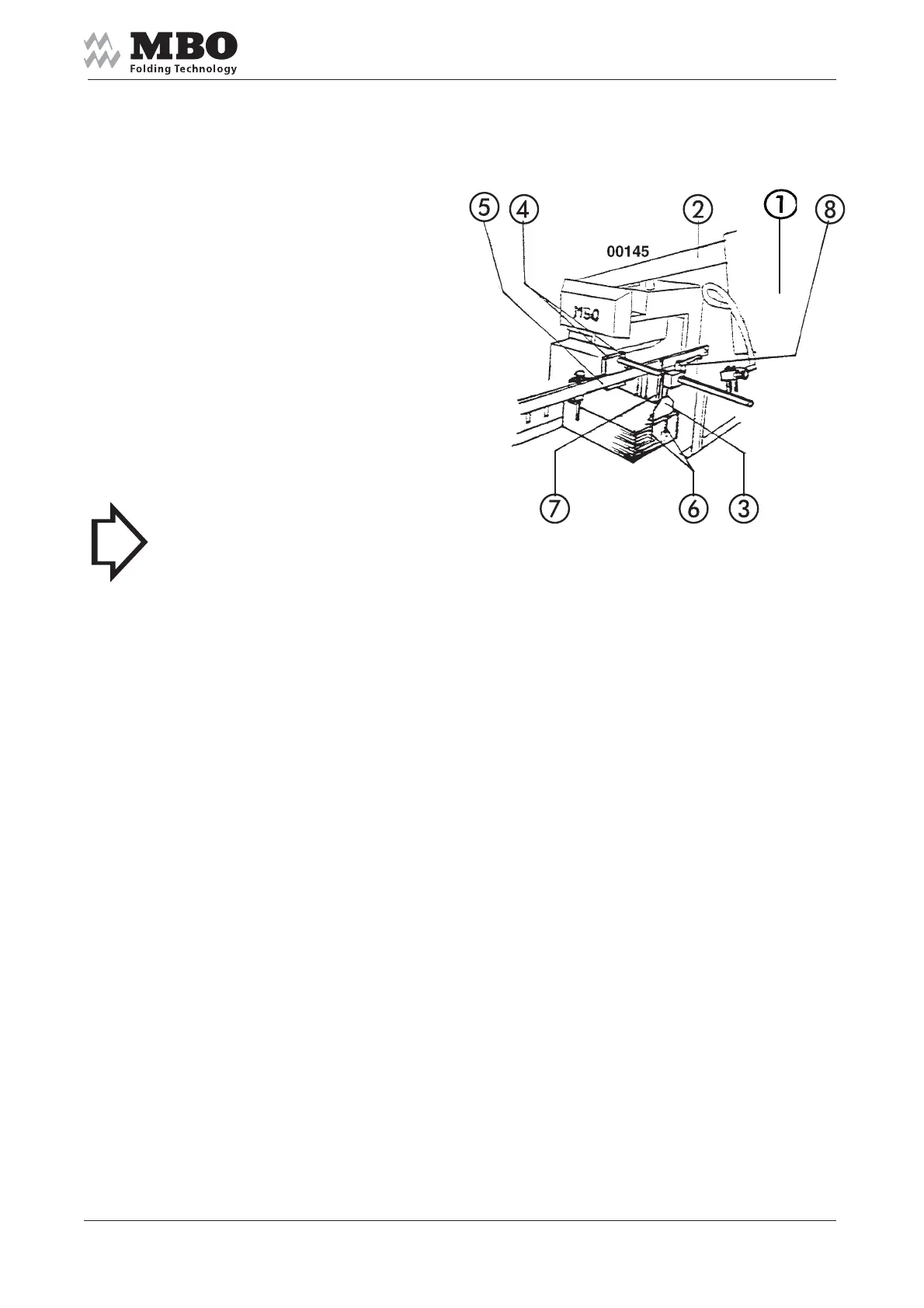

Affix the small sheet-size device 3
with two screws 4 onto the tie-bar 5.
The pins 6 must touch the end of pile.
The holding pin 7 must rest
on the end of pile thereby
slightly holding the sheets.
Lock through knurled grip 8.
Ventilation only through frontal air
support (see item 5.2.6).
>NOTICE< The nozzles should
only ventilate the upper sheets
(approximately 10-15).
The faster the production the more
sheets must be ventilated. Loading
and height control is described under
items 5.3.1 and 5.3.2,
