MBO T700 - Electrical connection; Installation of main control panel

Seite 25Alterations reserved Stand 05/2008
Operating manual T700/T800.1 - en
3.3 Electrical connection
> DANGER - MAY BE HAZARDOUS TO YOUR LIFE < These works are only to be carried out
by authorized or skilled personnel!

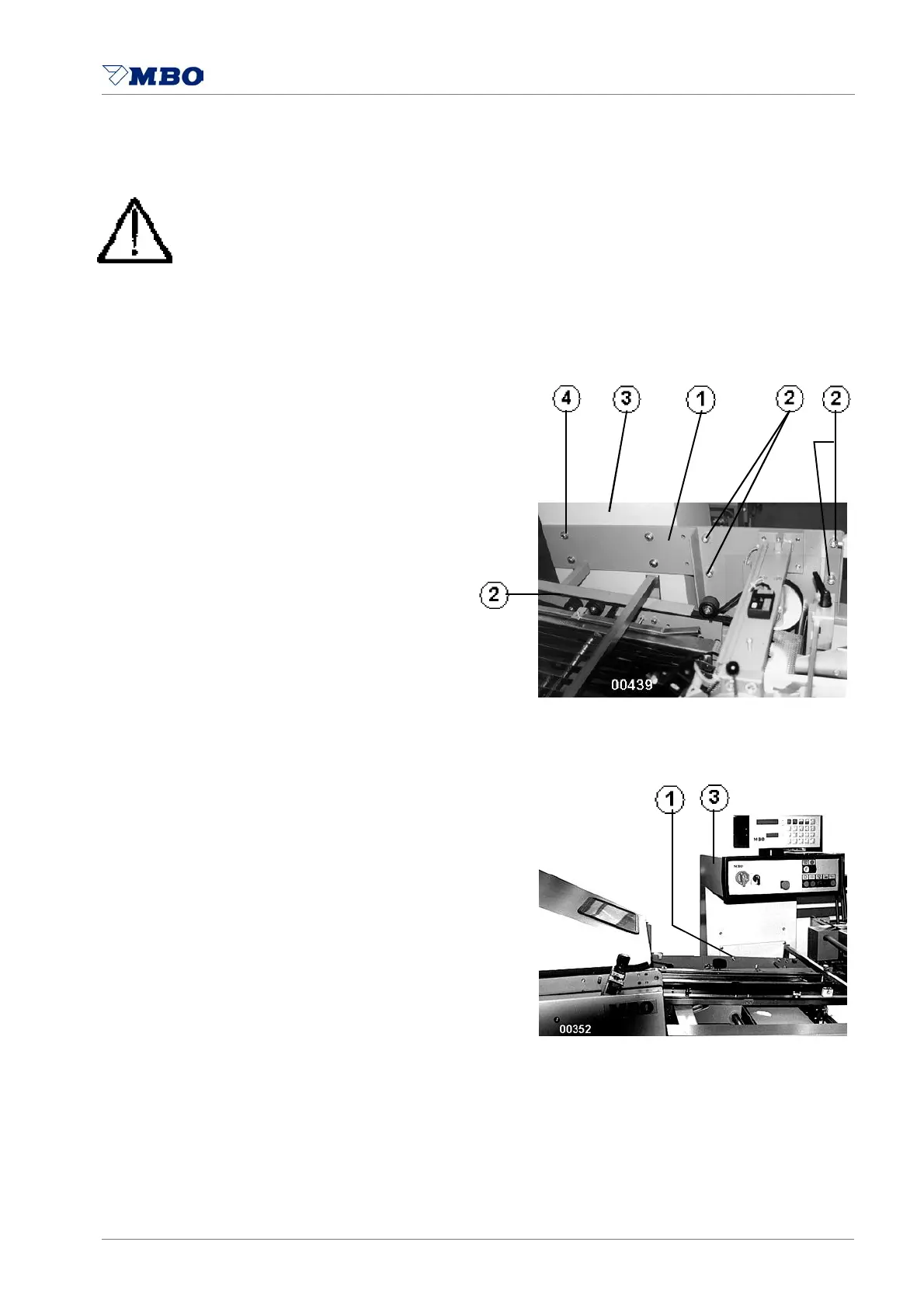

3.3.1 Installation of main control panel
Fasten the holder 1 with
five screws 2 at first, then affix 4
the main control panel 3 onto holder 1.
Insert the plugs of machine
and feeder into the corresponding
sockets at the control panel.
Matching plugs and sockets
bear the same marking.
Connect the cables of motors directly
with the motor protective switches
at main control panel.
Connect the pressure-/vacuum pump -
cables are numbered.
Please note wiring diagram!
