7.5 Special buckle plates
7.5.1 Combination buckle plate KFT (optional)
This type of buckle plate does not require the separate or swiveable sheet deflector. The
buckle plate / deflector does not require to be pulled-off or swivelled for retrofitting.

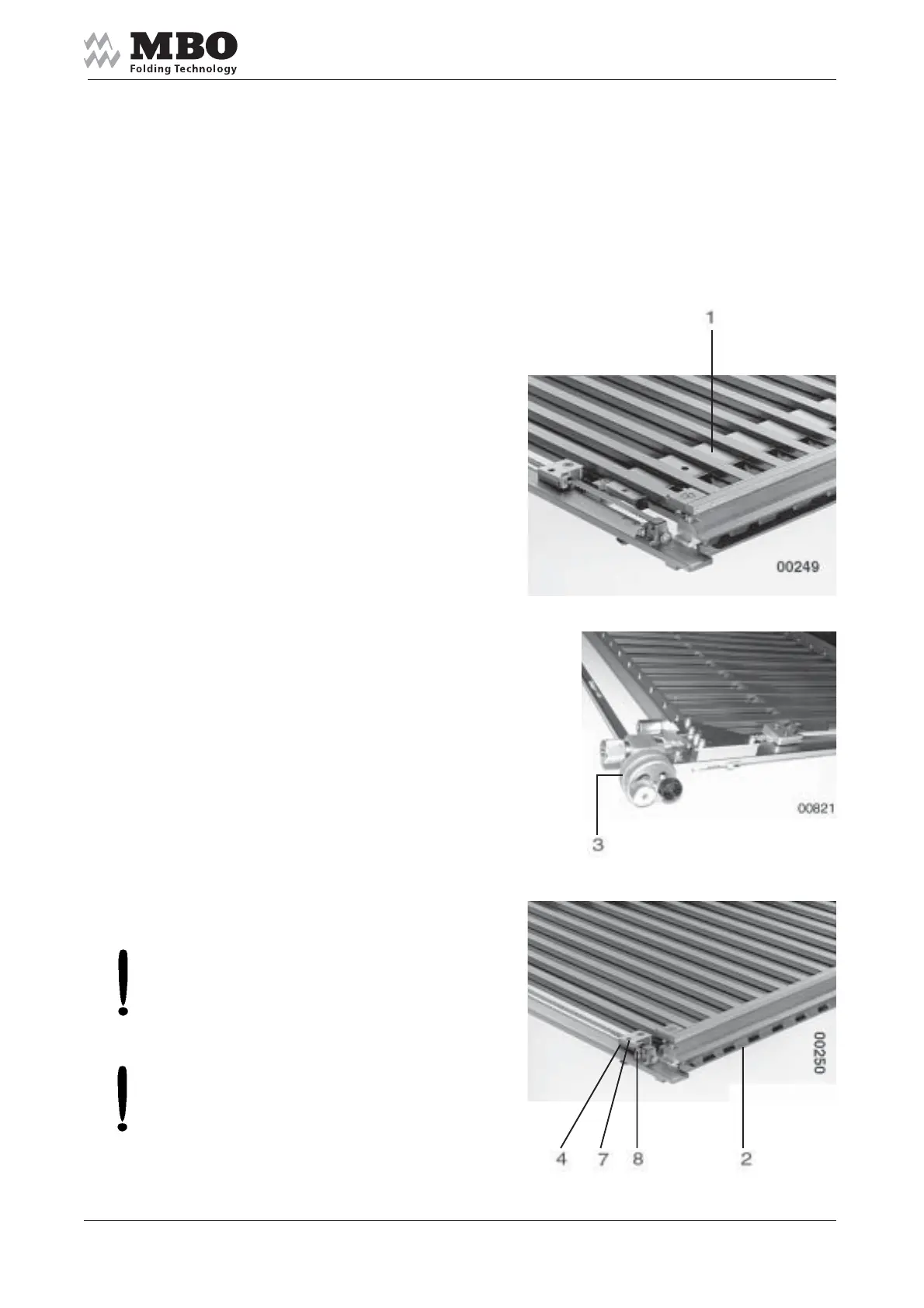

The sheet stop 1 also serves
as sheet deflector 2.
Function of „Buckle plate“:
See item 5.6.2
Function „Sheet deflector“:
Turn (clockwise) the sheet stop 1
through the adjustment ring 3
into its deepest position 4.
One-sided pull of the sheet deflector
to influence out-of square perforations,
scorings and cuttings
- see also item 5.6.3:
>ATTENTION< The deflector 2
shall not touch the foldrollers!
>ATTENTION< Do not change
the position of screws 7 and 8!
