Page 57Alterations reserved Stand 12/2002
Operating Manual
T 700 / T 800 - R ENG

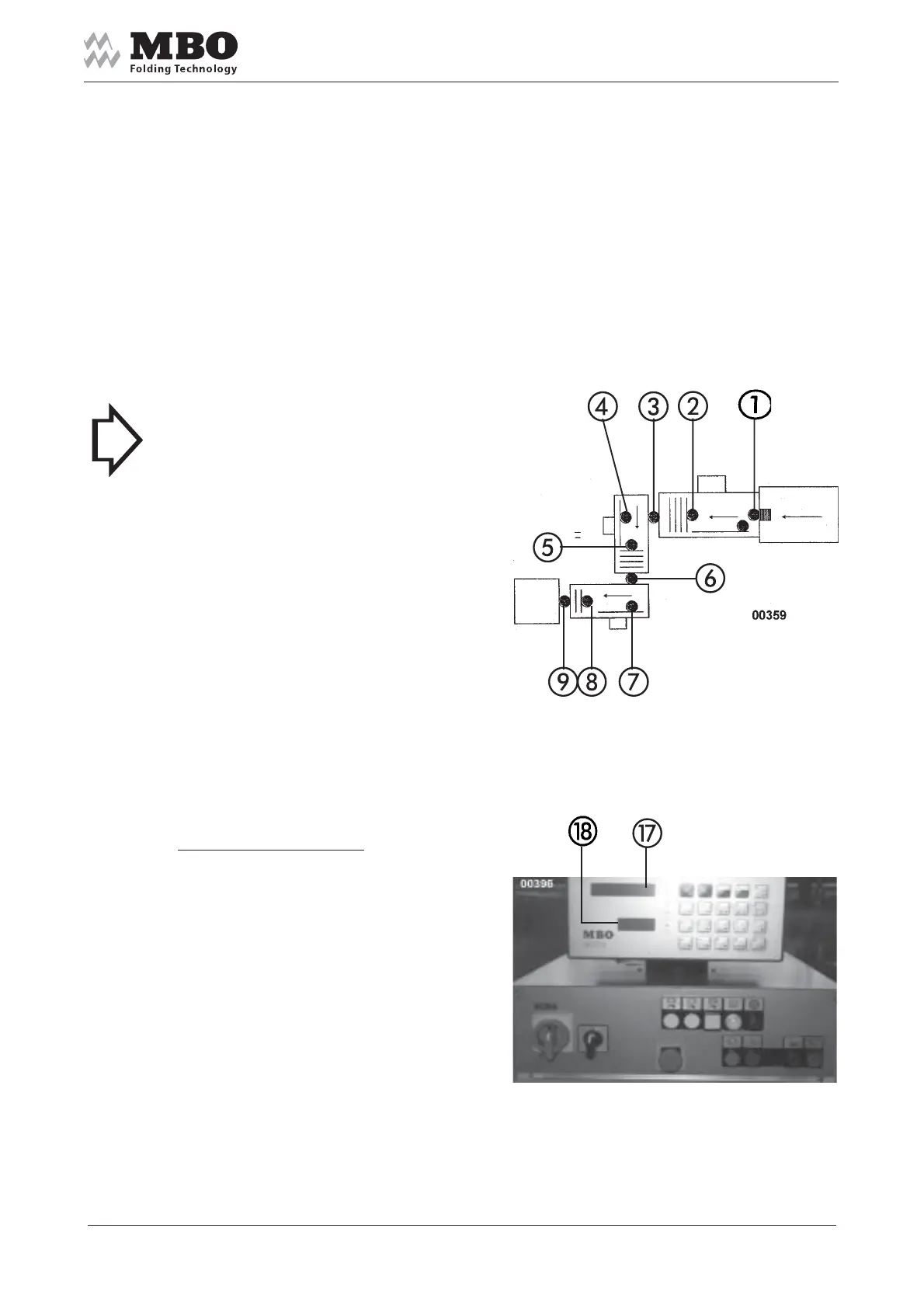

5.4.3 Photocells in folding units II and III (option)
In addition to the standard design (5.5.2) the following items are available:
Photocell 4 controls the infeed at sidelay of folding unit II
Photocell 5 controls the infeed at folding unit II
Photocell 6 controls the exit at folding unit II
Photocell 7 controls the infeed at sidelay of folding unit III
Photocell 8 controls the infeed at folding unit III
Photocell 9 controls the exit of folding unit III and the transition to a subsequent unit
>NOTICE< The machine will stop
if one sheet fails to pass one of these
photocells at the exact calculated time
or is passing this photocell l
onger than calculated.
TheMC-Counter 17 will display
an ERROR REPORT 18.
It will show the position of the error
- see also Operating Manual
attached separately.
Calibration of photocells:
See the attached special
Operating Manual
