5.2.6 Vacu-Infeed (standard)

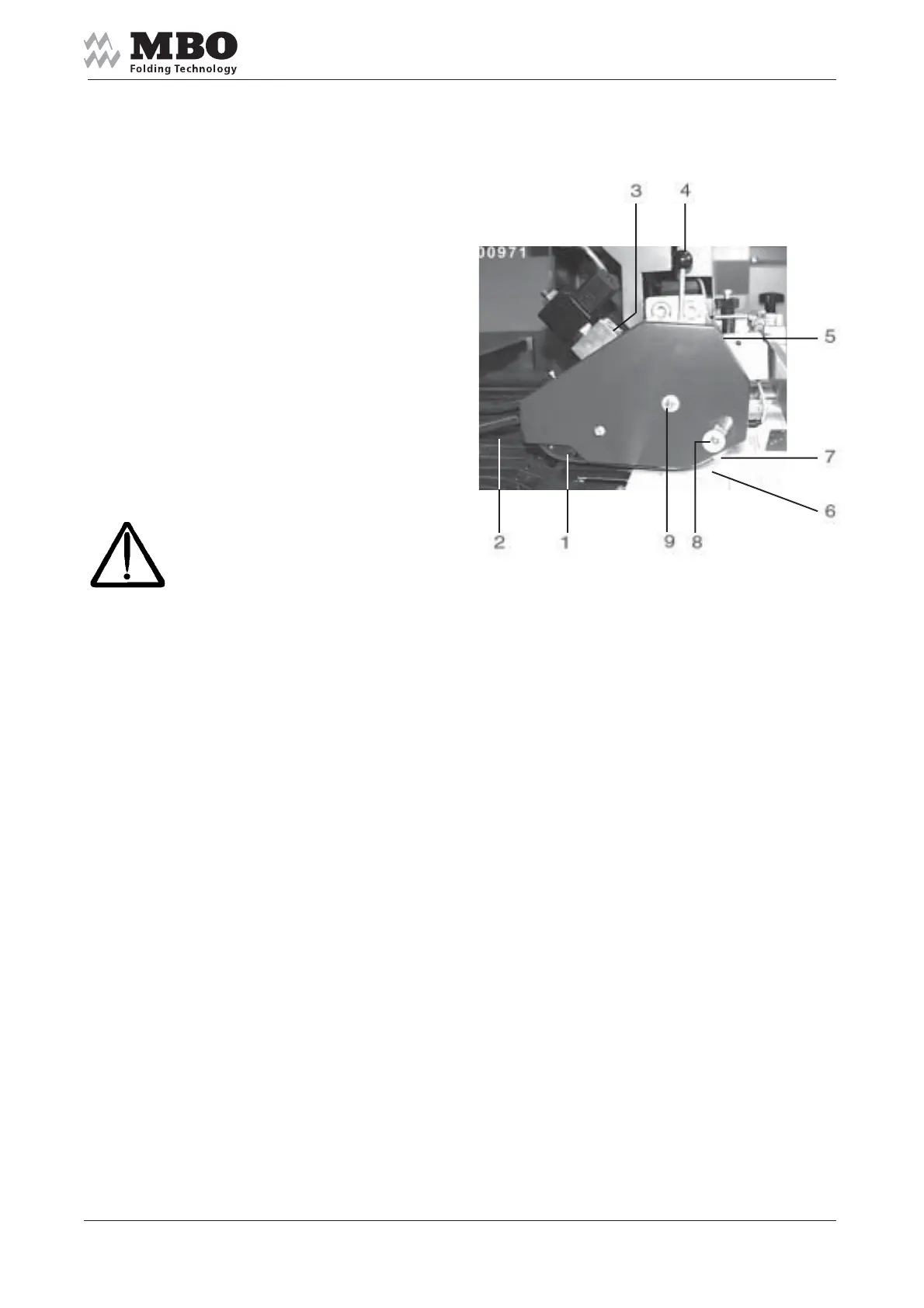

The Vacu-Infeed 1 transports
the sheets onto the register table 2.
The power of vacuum for various
paper weights can be adjusted
through the red screw 3
(use the scale +/-).
Corresponding on the tendency
of rolling of the sheets you can move
the Vacu-Infeed forwards or backwards
through the lever 4.
Red markings 5 show you
the current position.
>DANGER< The gap 6 between
the pile’s surface and the protective
angle 7 must be set as small as possible
- only 8 mm are permitted!
Make sure that the nuts 8 and 9 are
re-fastened after the settings.
