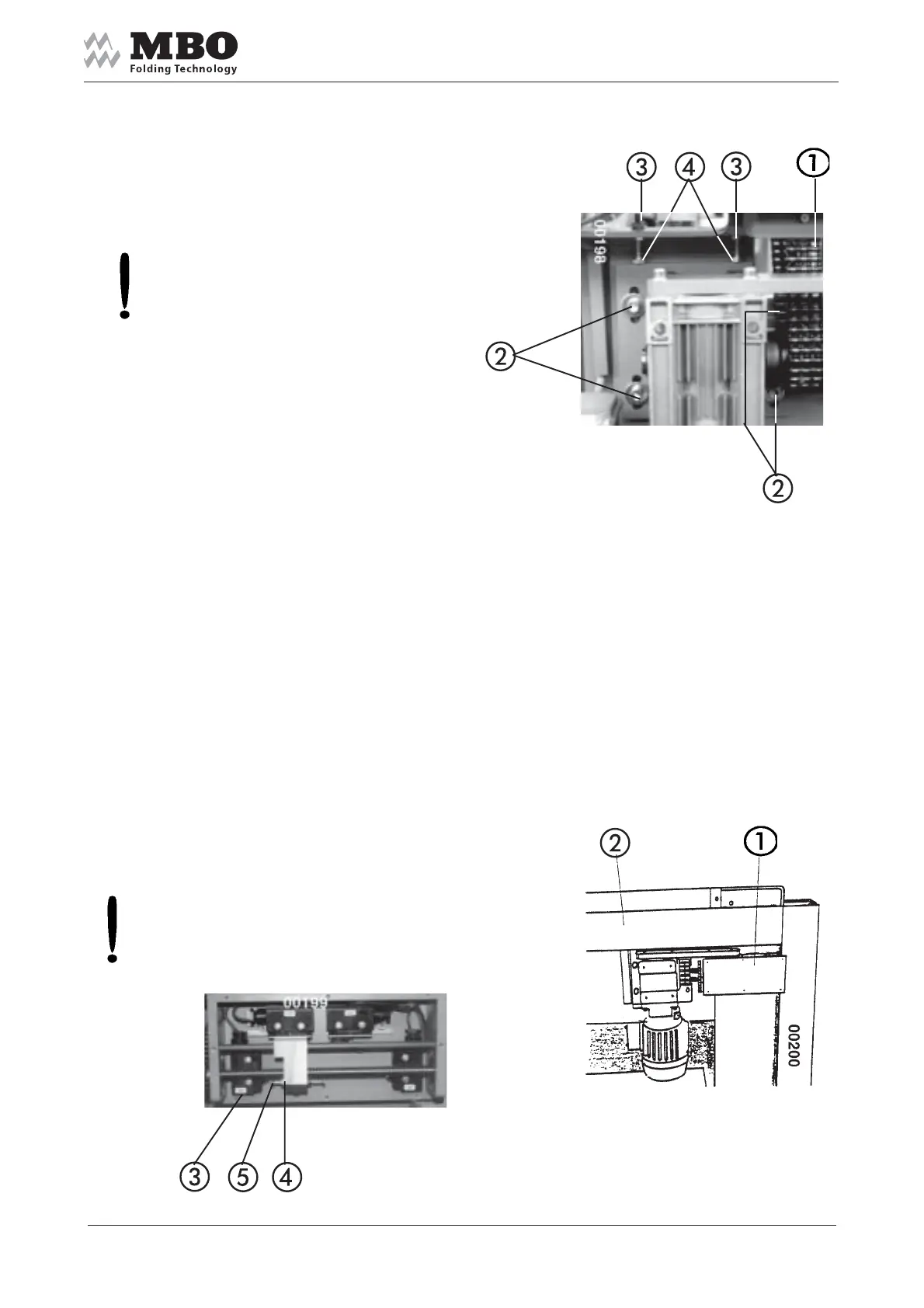

4.1.10 Feeder - tensioning of drive chain
Tensioning of drive chain 1:
Loosen the four screws 2
as well as counter nut 3.
Turn both screws 4 together.
> ATTENTION < Do not overtighten.
Refasten screws 2 and counter nuts 3.
4.1.11 Feeder - final switch (top)
The minimum distance from the pile plate to the suction wheel/Vacubelt has been set by the
manufacturer to 155 mm.
Reason: When using EURO pallets, which have the most height (150 mm) of the pallets
normally used, it will never occur that the Vacubelt/suction wheel will be damaged by the
pallet which is damaged or incomplete in the area of the capacitive switch. If mostly low
throw-away pallets are used the pile is not completely processed. In this case you may
move the top final position of the pile plate closer to the Vacubelt/suction wheel. However,
the manufacturer will not be liable for any damages caused.
Remove the cover 1 at drive side of
the feeder 2. The limit switch S 25 3
activates the top final position.
Loosen the counter nut 4.
When you clockwise turn the screw 5
it will cause a higher final position
of the pile plate.
> ATTENTION < Adjust sensitively!
One rotary movement of the screw 5
will amount to 10 mm height difference.
Refasten counter-nut 4.
