5.2.3 Height control of pile and „Vaculift“
The pile UP movement is stopped

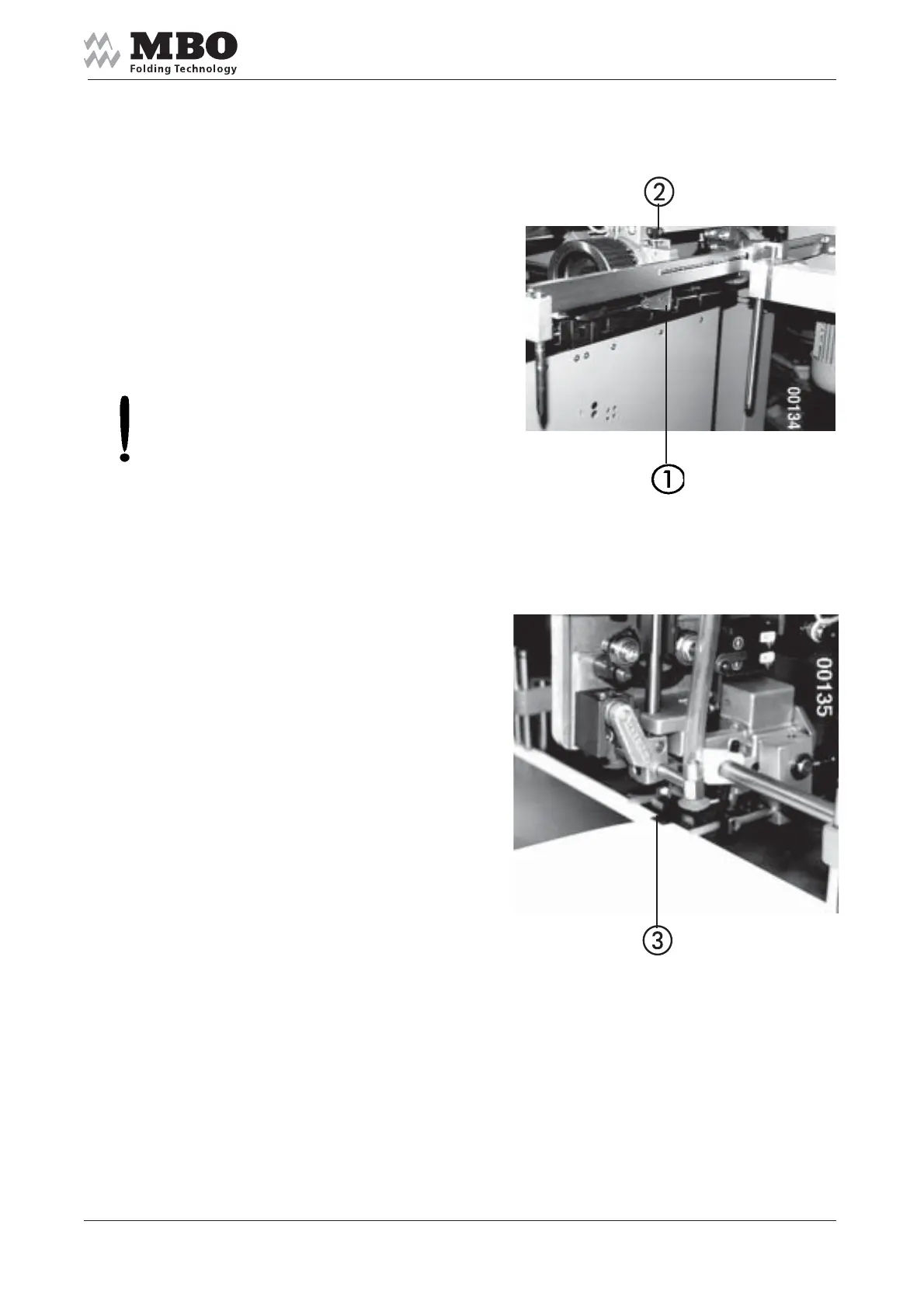

by the proximity switch 1.
The distance between the suction
wheel and the pile
is approximately 7-8 mm;
this basic setting has been
made by the manufacturer.
Alterations, depending on the sheet pile,
through knurled screw 2.
>ATTENTION < Make sure that
proximity switch 1 is not covered!
After the pile STOP:
The „Vaculift“ is automatically moving
onto the rear edge of pile. The pressure
foot 3 stops the down movement shortly
after reaching the top edge of pile.
Pile DOWN:
The „Vaculift“ always moves
time-delayed into its top position.
