Seite 52
Alterations reserved
Stand 05/2008
Operating manual T700/T800.1 - en

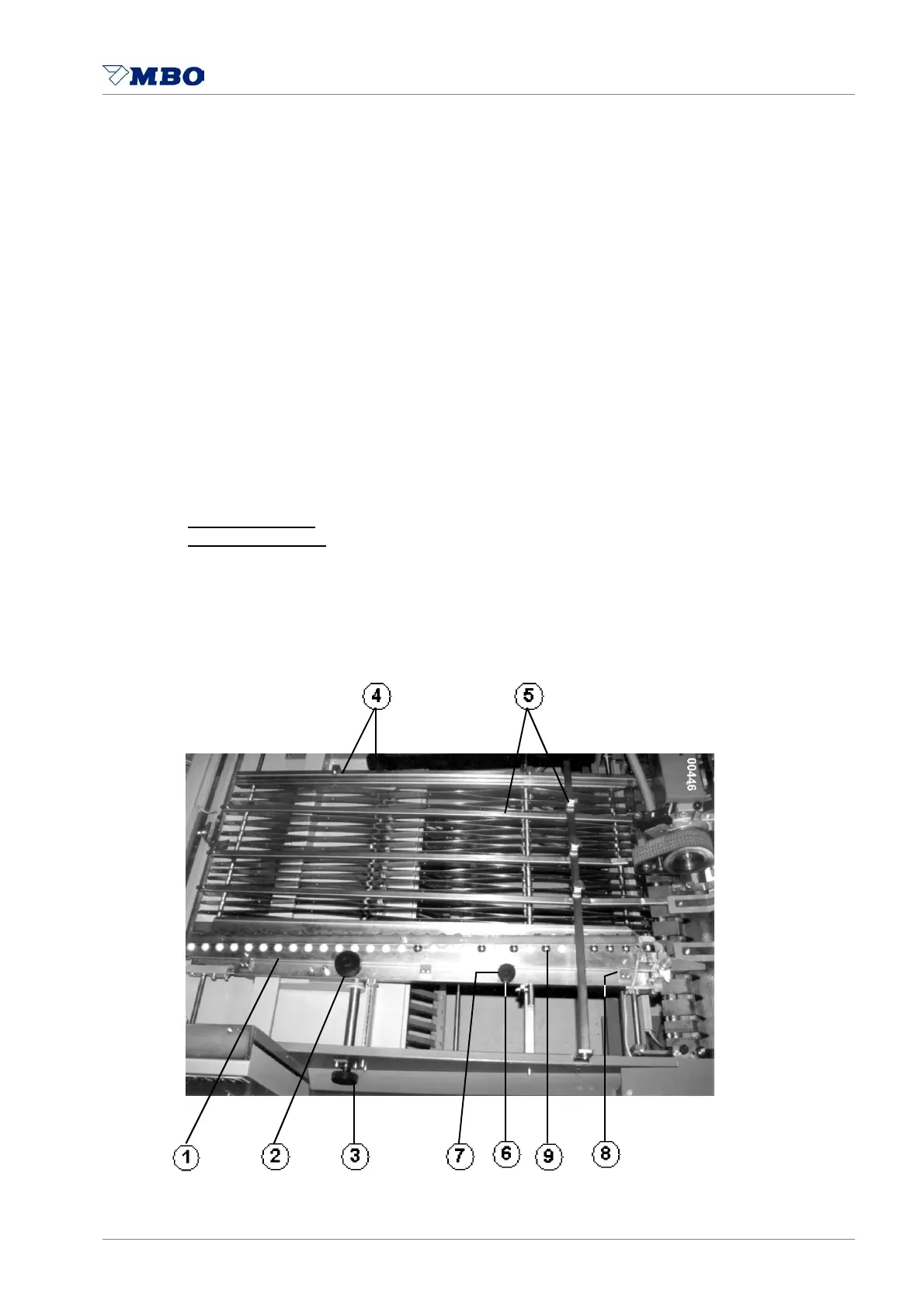

5.4 Register table
5.4.1 Ball rail (standard)
Set the sidelay 1 through the knurled grip 2 to 1/2 of sheet width at mm-scale.
Fine adjustments should be made through knurled grip 3.
Set the guide plate as well as the rail 4 above it so as to control the outside edge
of the transported sheet.
Depending on the sheet width you may add additional smoother bars 5.
The angle of the sidelay to the foldrollers may be adjusted as follows:
loosen the knurled screw 6, make your settings at cam 7;
values may be read-off at setting indicator 8.
The use of balls in the rail 9 depend on the quality of paper. Please bear in mind:
Light paper sheets
= use plastic balls
Heavy paper sheets = use steel balls (or plastic and steel balls mixed)
Lesser balls are required if you run standard sheets. Oblong and very heavy sheets require
more balls. The first three holes (at infeed) should be equipped with steel balls to ensure a
safe transfer of the sheets.
