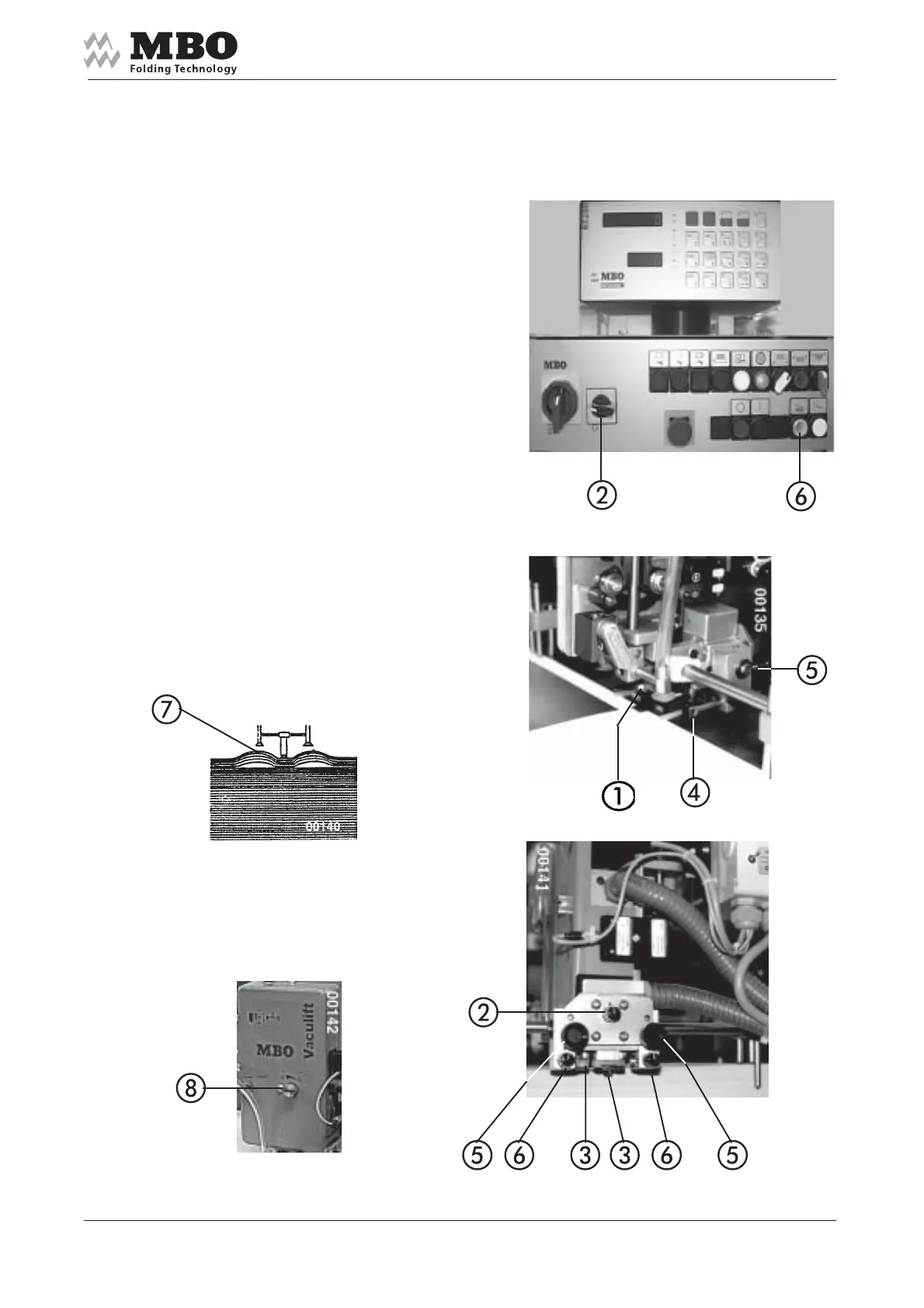

5.2.5 Air support
Air blast and suction air
of the feeder is provided
by a pressure/vacuum pump.
ON/OFF position occurs through
switch 2 at main control panel.
Button 6 SHEET INFEED: suckers
move down and lift the first sheet of pile.
How to regulate the air blast
of the nozzles 1 through
the adjustment knob 2:
Increase the power of air blast slowly
until the sheet is slightly fluttering
and touching at the suction wheel.
Change the air blast direction
at large or oblong sizes:
loosen the screw 3.
Pre-blowers 4: height adjustment
through knurled screws 5. Regulate
the air blast through the adjustment
knobs 6 so that the top sheets of the pile
are ventilated in a „mushroom-“ shape.
For various types of papers adjust
the power of suction of both suckers
through the knurled screw 8.
