Page 49Alterations reserved Stand 12/02
Operating Manual
T 700 / T 800 - FP ENG

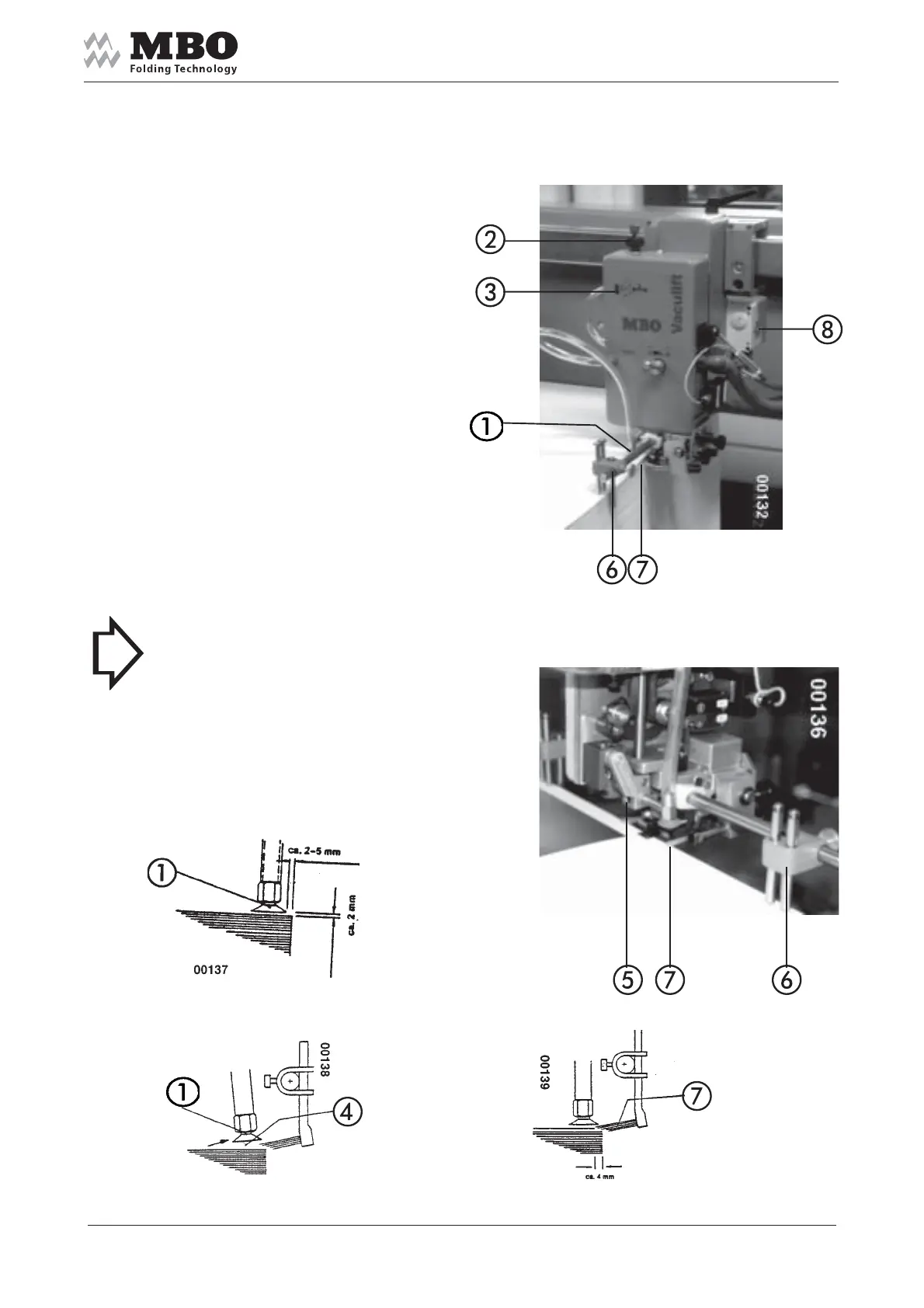

5.2.4 Feeder head „ Vaculift“
Basic position of „Vaculift“:
The sucker 1 approximately 2-5 mm
distance from the rear edge of pile
and 2 mm above the pile.
Adjustments through knurled screw 2;
measurements can be read-off
at scale 3.
In case you process volumineous
papers: Cant 4 the sucker 1 slightly
(through screw 5). This will not suck-on
the sheet entirely on its surface.
Stop holders 6 should fix small sheets
sizes laterally and to the rear.
Large sheet sizes:
Move the stop holders 6 as far
as possible off the „Vaculift“.
Double sheets are stripped off
by the brushes 7; they should
reach approx. 4 mm into the pile,
distance approx. 1 mm.
> NOTICE < Depending on the type
of paper and power of air blast
it may become necessary to slightly
push the brushes 7 onto the pile.
Selector switch 8 for ON/OFF.
