Page 27Alterations reserved Stand 12/2002
Operating Manual
T 700 / T 800 - R ENG
3.3.3 Main Power Connection
>DANGER - MAY BE HAZARDOUS TO YOUR LIFE< These works are only to be carried out by
authorized or skilled personnel!

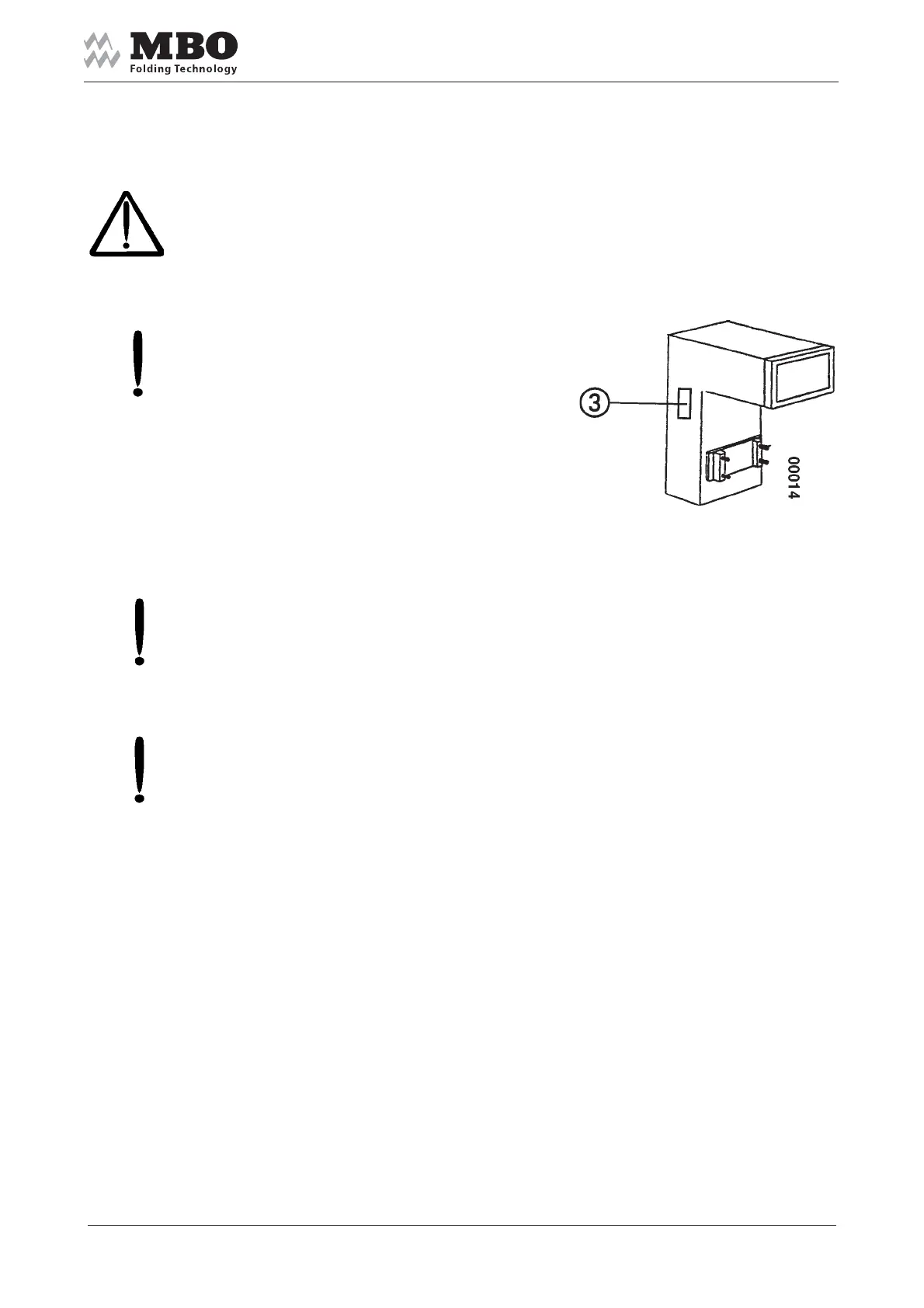

>ATTENTION< Check whether
the supply voltage and frequency
correspond to the data indicated
on the machine label 3.
Enter the connecting cable from
the base of the control panel,
connect the wires to the main
terminals provided and secure
it with protective plates.
Please note wiring diagram!
>ATTENTION<
Consider clockwise rotating field!
>ATTENTION< Check the rotating field of the motors! If necessary, alter the terminal strip in the
main control panel.
