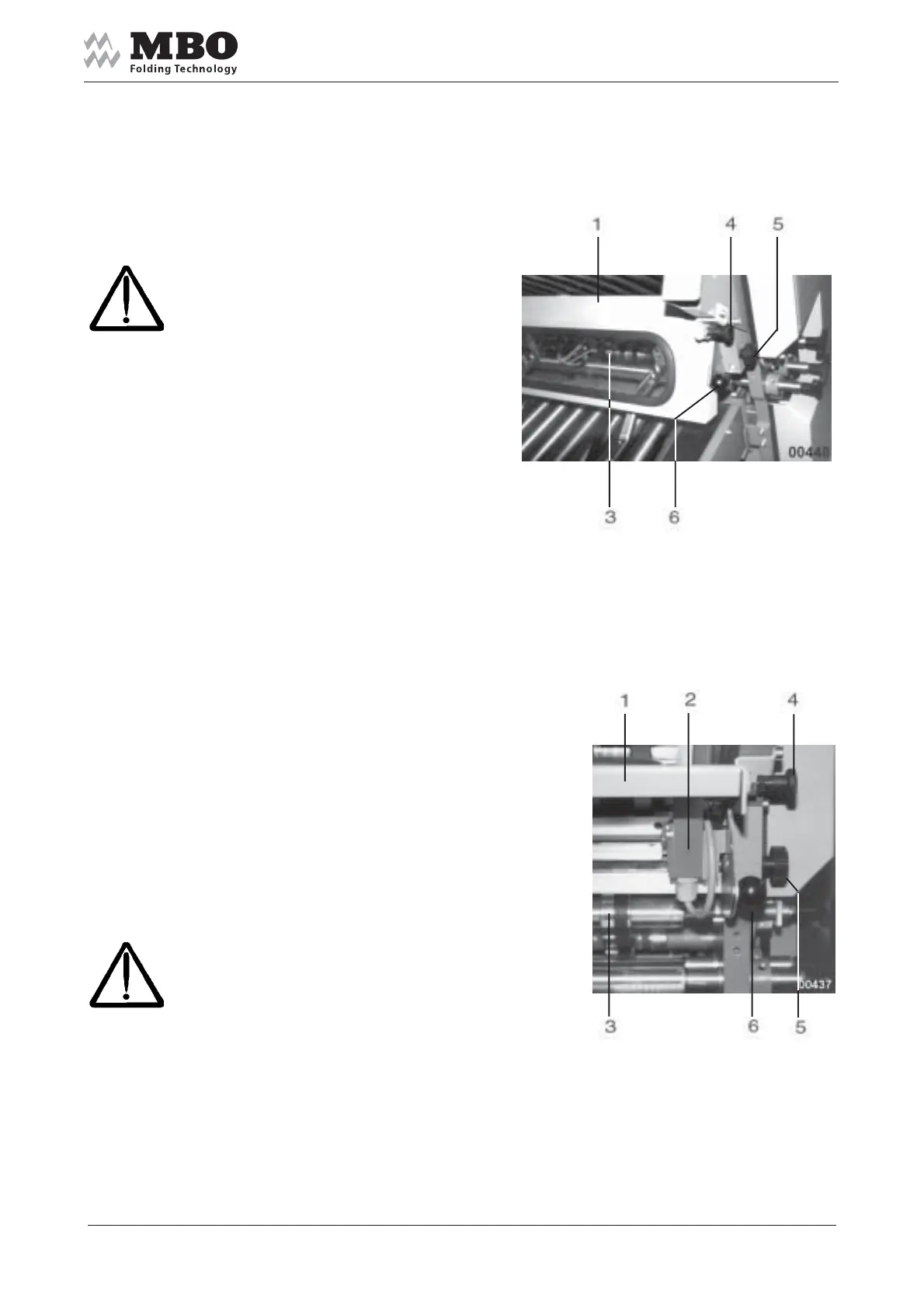

5.5.11 Guard above rear perforator shaft (Standard)
The guard 1 locked electronically.
>DANGER< Never remove
or overbridge the switch 2!
Danger of personal injuries!
Works at slitter shaft 3:
Lift the guard 1, lock bolt 4.
Switch 2 stops the machine.
Adjust guard 1 if various
subsequent units are used:
Loosen the knurled screw 5,
use ball grip 6 to pull-up
and refasten knurled screw 5.
>DANGER< Never reach into
the machine during machine running,
extensive danger of personal injuries!
