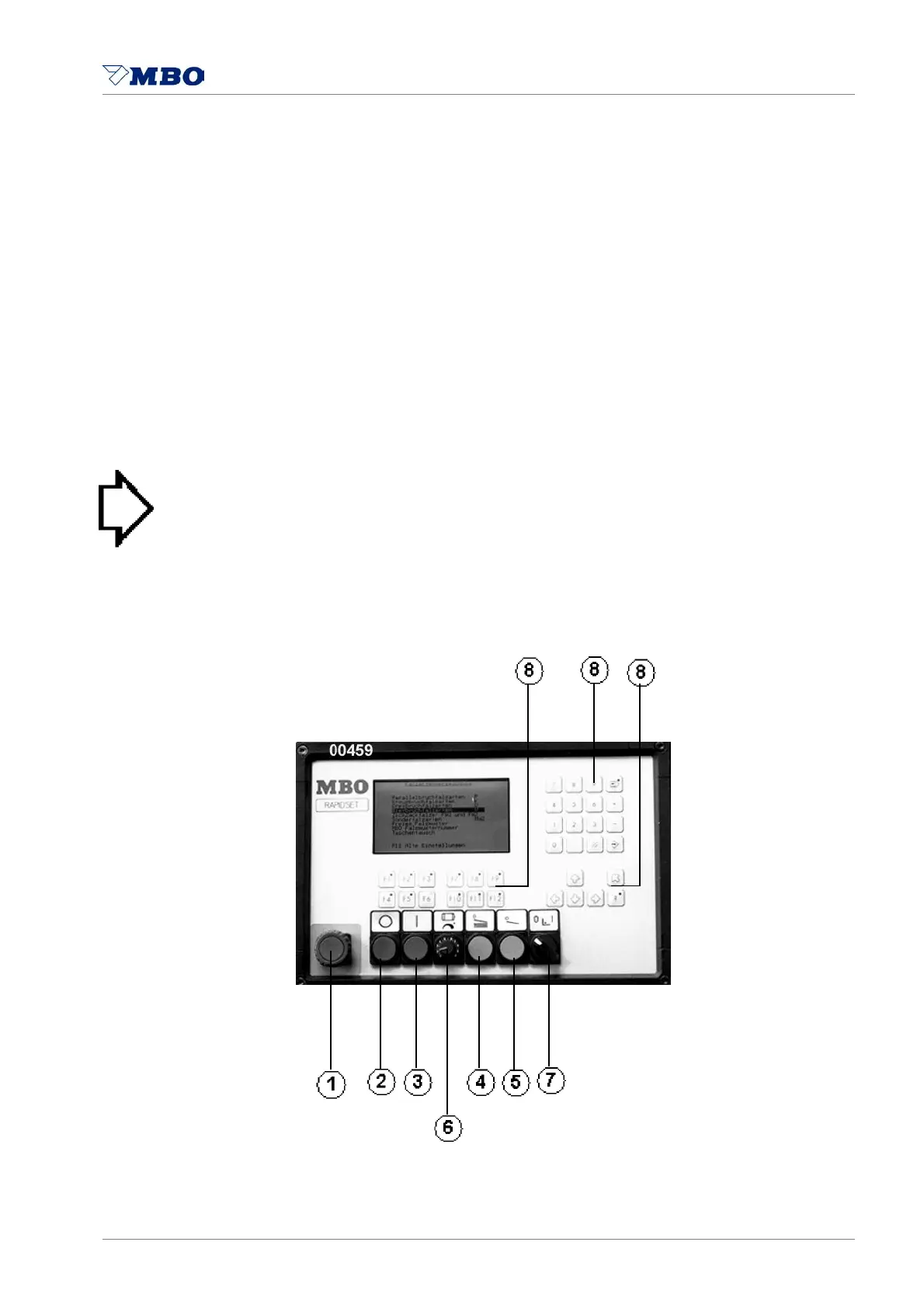

5.7.5 Main Control Panel (Option Rapidset)
1 Red mushroom button with locking for EMERGENCY STOP
2 Button to STOP the machine
3 Button to START the machine
4 Sheet infeed button for PRODUCTION
5 Button for SINGLE SHEET INFEED
6 Potentiometer for speed adjustment
7 Selector switch for set-up mode (see para. 5.7.6):
Position I: Set-up mode
Position 0: Position of switch during production.
8 Key board for ”Rapidset” - see detailed description of separate Operating Manual ”Rapid-
set”.
> NOTICE < If the guard above the slitter shaft is opened the machine will stop immediately.
ERROR 22 will appear on the MC counter.
