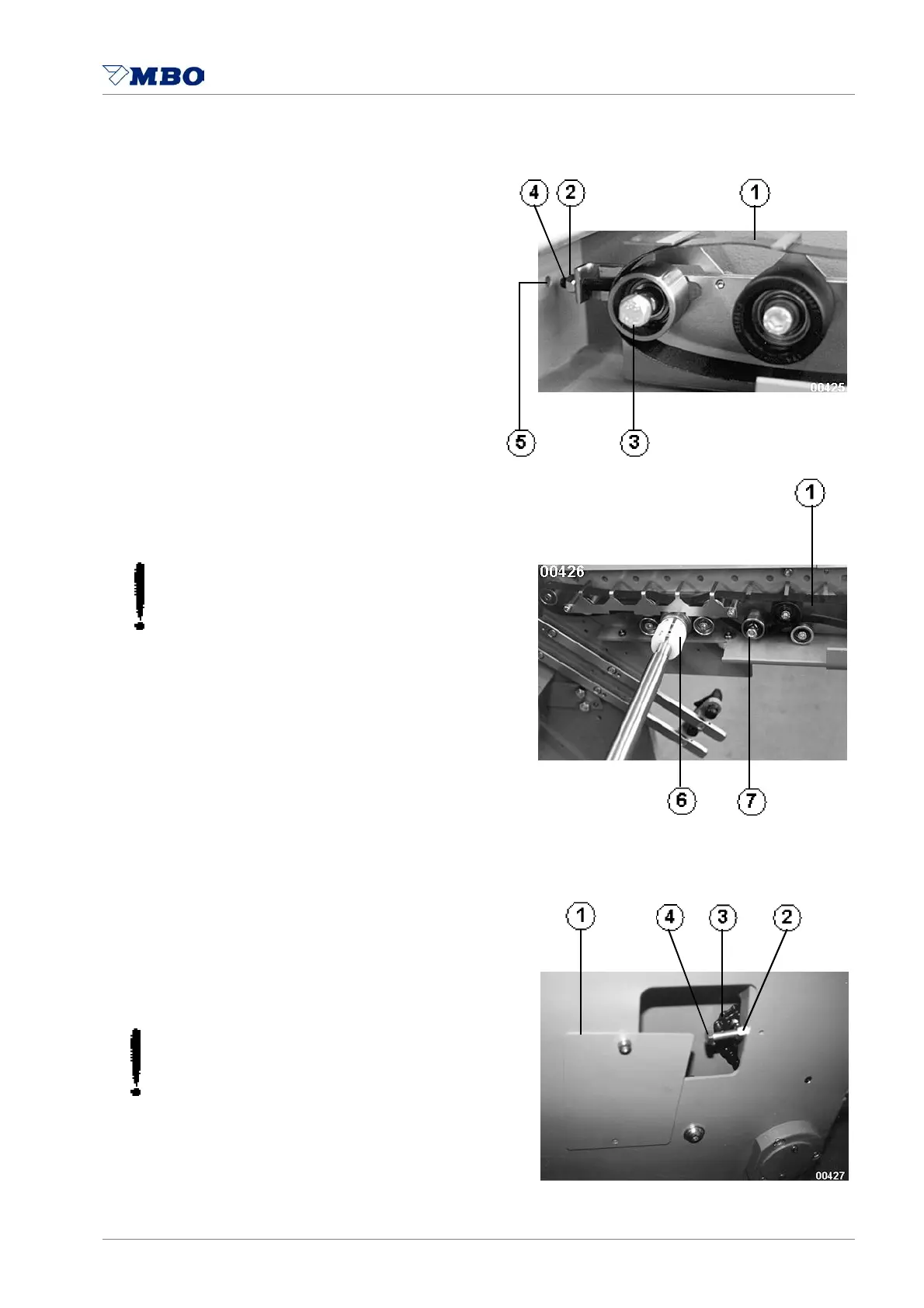

4.1.6 Drive belt for register table on mobile folding units
Strain tightening of the drive belt 1
at bottom side of register table:
Loosen the screws 2 and 3,
insert screw 4 from the external
side through the opening 5.
Retighten the screws 2 and 3
Exchange: Relieve the screw 4
and displace the coupling 6,
re-thread drive belt 1.
The installation occurs
in the opposite sequence.
> ATTENTION < Centre the
tape for its centric running:
turn the red marked screw 7.
Fasten the external cap nut.
Refasten screw 6 and nut 7.
4.1.7 Chain of feeder
Open the cover 1 at drive side,
loosen the counter nut 2,
tension the chain 3: Insert screw 4.
> ATTENTION <
Do not overstrain!
Refasten the counter nut 2
and close cover 1 again.
