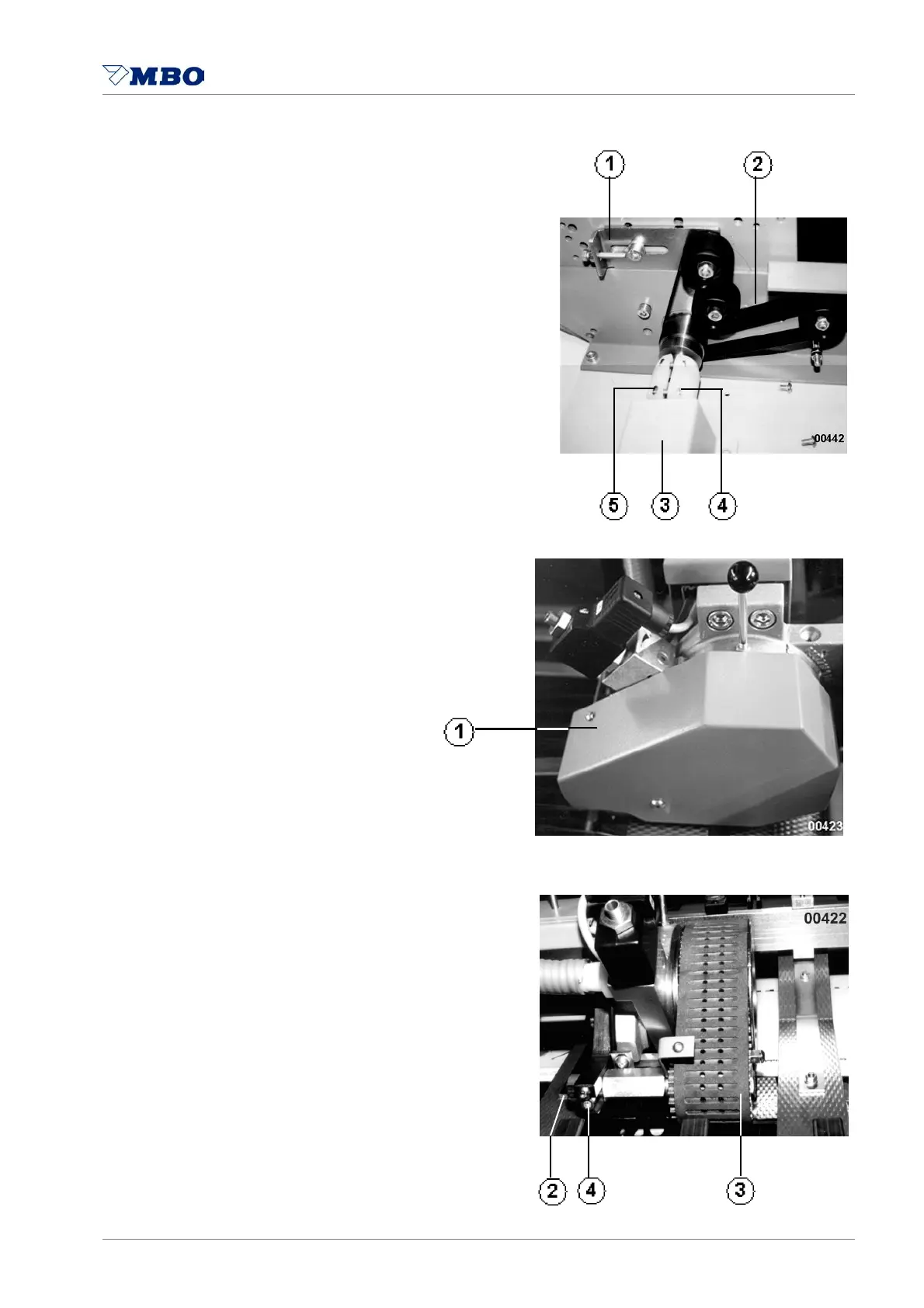

4.1.2 Drive belt for suction wheel/Vacu-Infeed
Tension the drive belt 1
through tensioning lever 2.
Exchange:
Remove guard 3,
open 5 the coupling 4
and re-thread the tape.
The installation occurs
in the opposite sequence.
4.1.3 Vacu-Infeed-Tape (Option)
Remove protective hood 1,
loosen the nut 2
and tension the tape 3.
Insert the screw 4
(but not too tight).
Exchange:
Loosen the screw 4.
