MBO T700 - Two-Up Production at One Sidelay

Page 86
Alterations reserved Stand 12/2002
Operating Manual T 700 / T 800.1 - FP ENG
Continuation

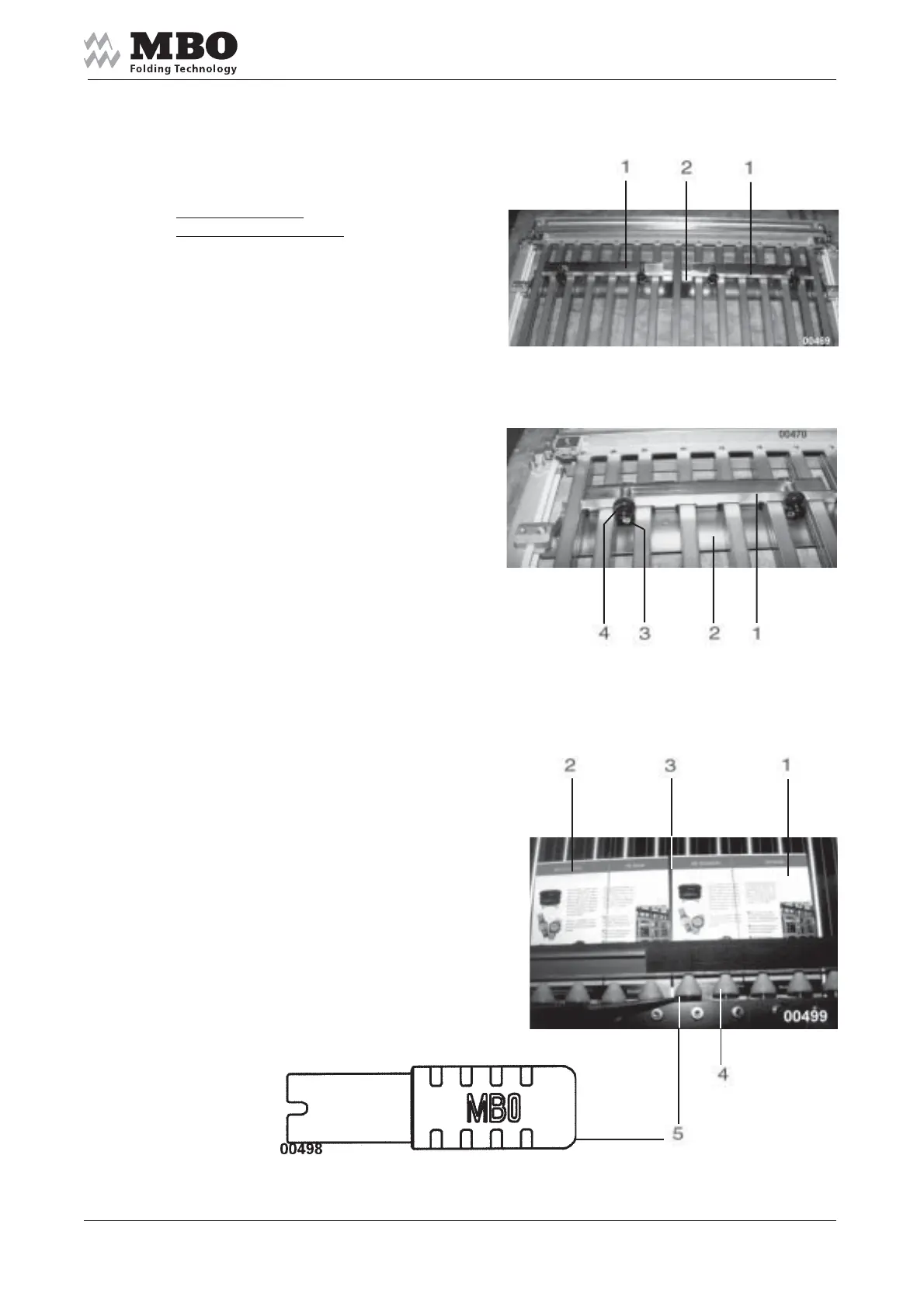

Installation of the
additional sheet stops:
Affix 3 the two additional
sheet stops 1 from the bottom at
the sheet stop 2 of the buckle plate
and fasten them with screws.
Use knurled screw 4 to set
the folding length and folding angularity
for both sheet parts individually.
5.6.10 Two-up production at one sidelay
The first (right) signature 1
must be overtaken earlier
than the second (left) signature 2,
which will automatically creates a gap 3.
Move the coned roller 4 forward up
to the first latch by means of tool 5.
