Operating manual T700/T800.1 - en
5.0 Operation of the machine

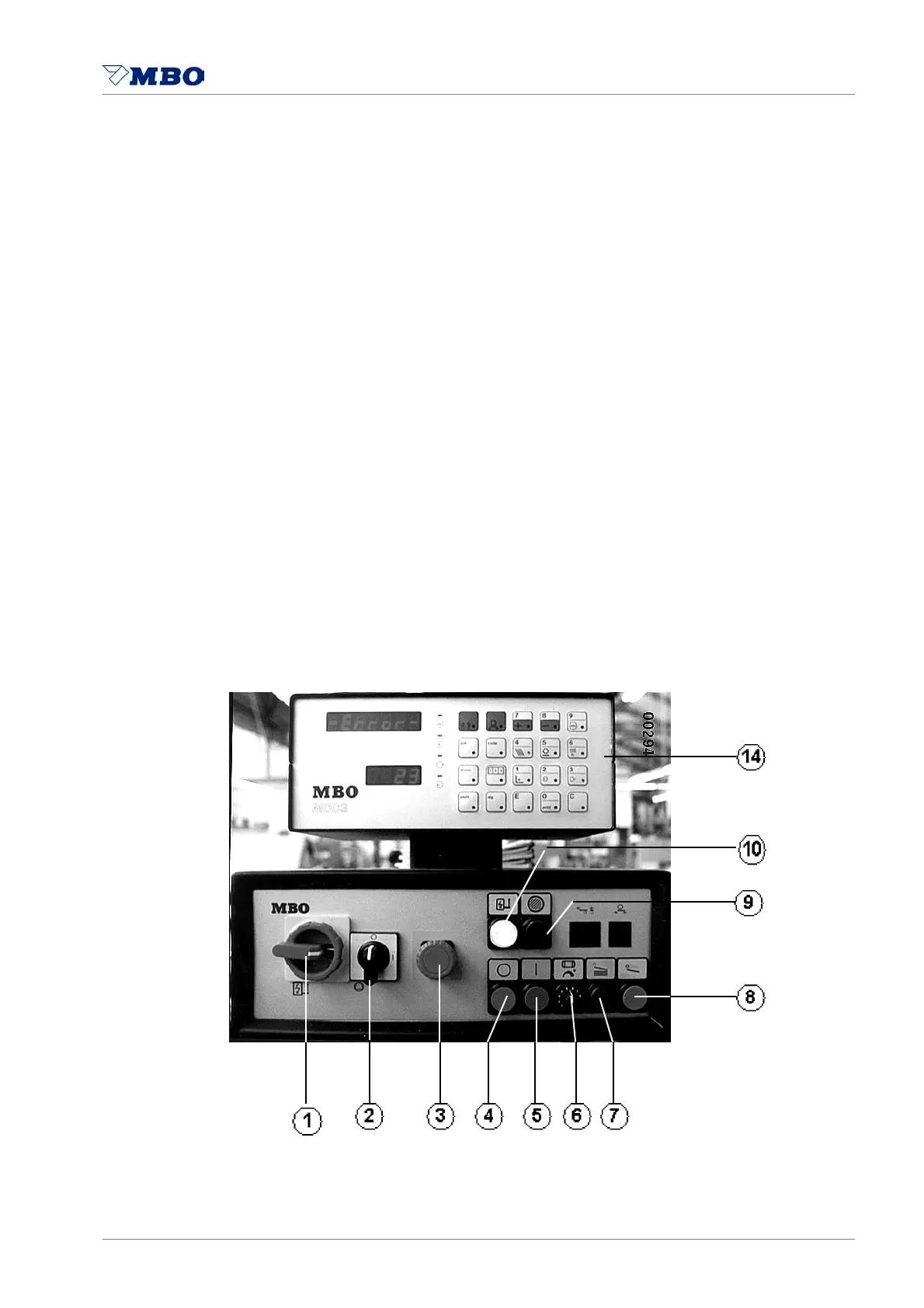

5.1 Main control panel - Standard control ”MC”
1 MAIN SWITCH
2 ON/OFF switch for AIR PUMP
3 Red mushroom button with locking for EMERGENCY STOP
4 Button to STOP the machine
5 Button to START the machine
6 Potentiometre for electronic speed control
7 Button for SHEET INFEED during PRODUCTION and feeder START/STOP
8 Button for SINGLE SHEET INFEED
9 INDICATOR LIGHT for main drive
10 INDICATOR LIGHT for main switch
14 Batch counter MCC 3 with integrated sheet infeed control „MC“.
See separate Operating Manual „MC Control“ for detailed description.
