5.2 Main control panels (Options)

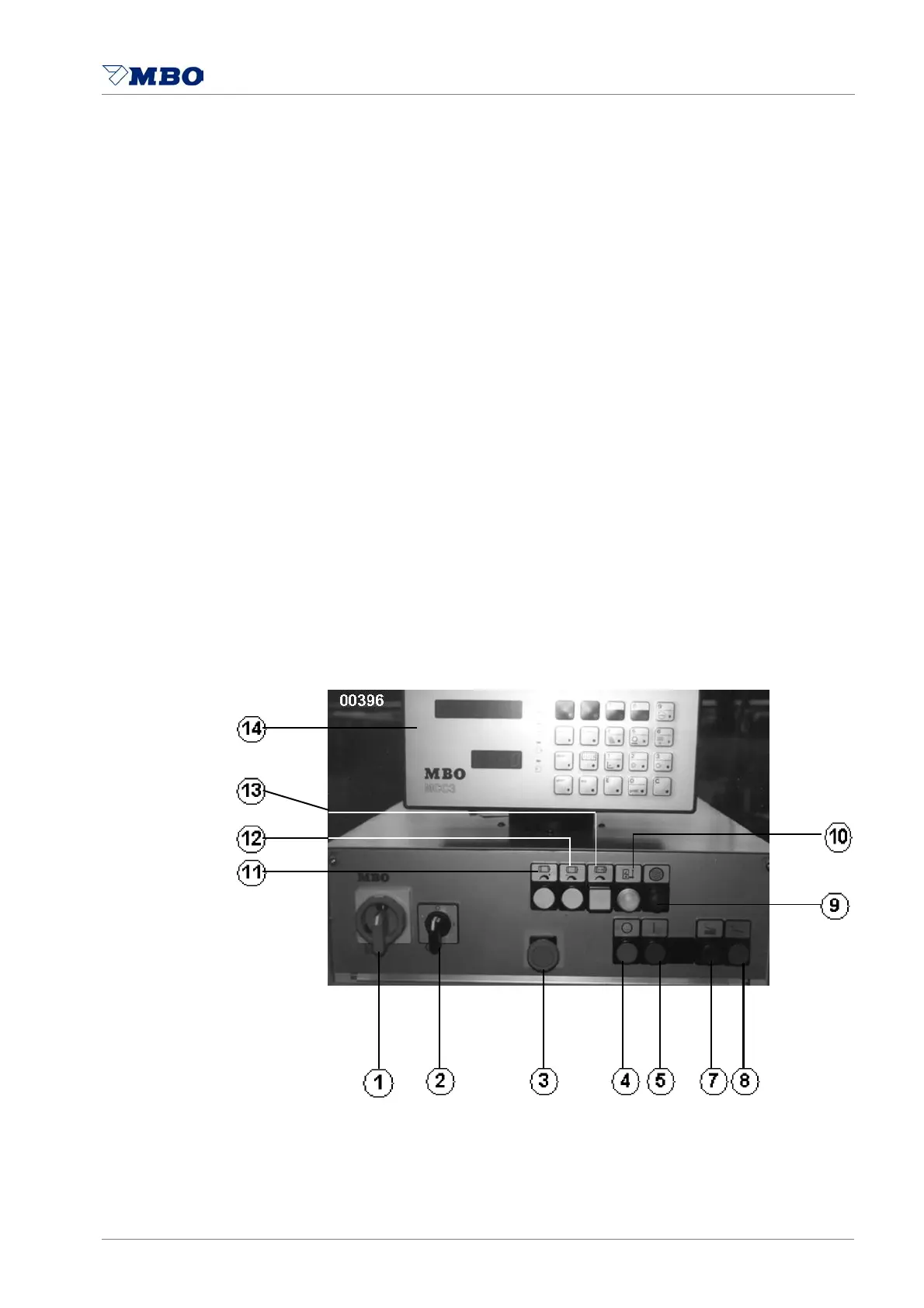

5.2.1 Push button control
1 MAIN SWITCH
2 ON/OFF switch for AIR PUMP
3 Red mushroom button with locking for EMERGENCY STOP
4 Button to STOP the machine
5 Button to START the machine
7 Button for SHEET INFEED during PRODUCTION and feeder START/STOP
8 Button for SINGLE SHEET INFEED
9 INDICATOR LIGHT for main drive
10 INDICATOR LIGHT for main switch
11 Push button to increase the speed of folding unit I
12 Push button to decrease the speed of folding unit I
13 Push button for joint speed alteration of all folding units
(activate simultaneously with buttons 11 or 12).
14 Batch counter MCC 3 with integrated sheet infeed control „MC“.
See separate Operating Manual „MC Control“ for detailed description.
