Page 53Alterations reserved Stand 12/2002
Operating Manual
T 700 / T 800 - R ENG

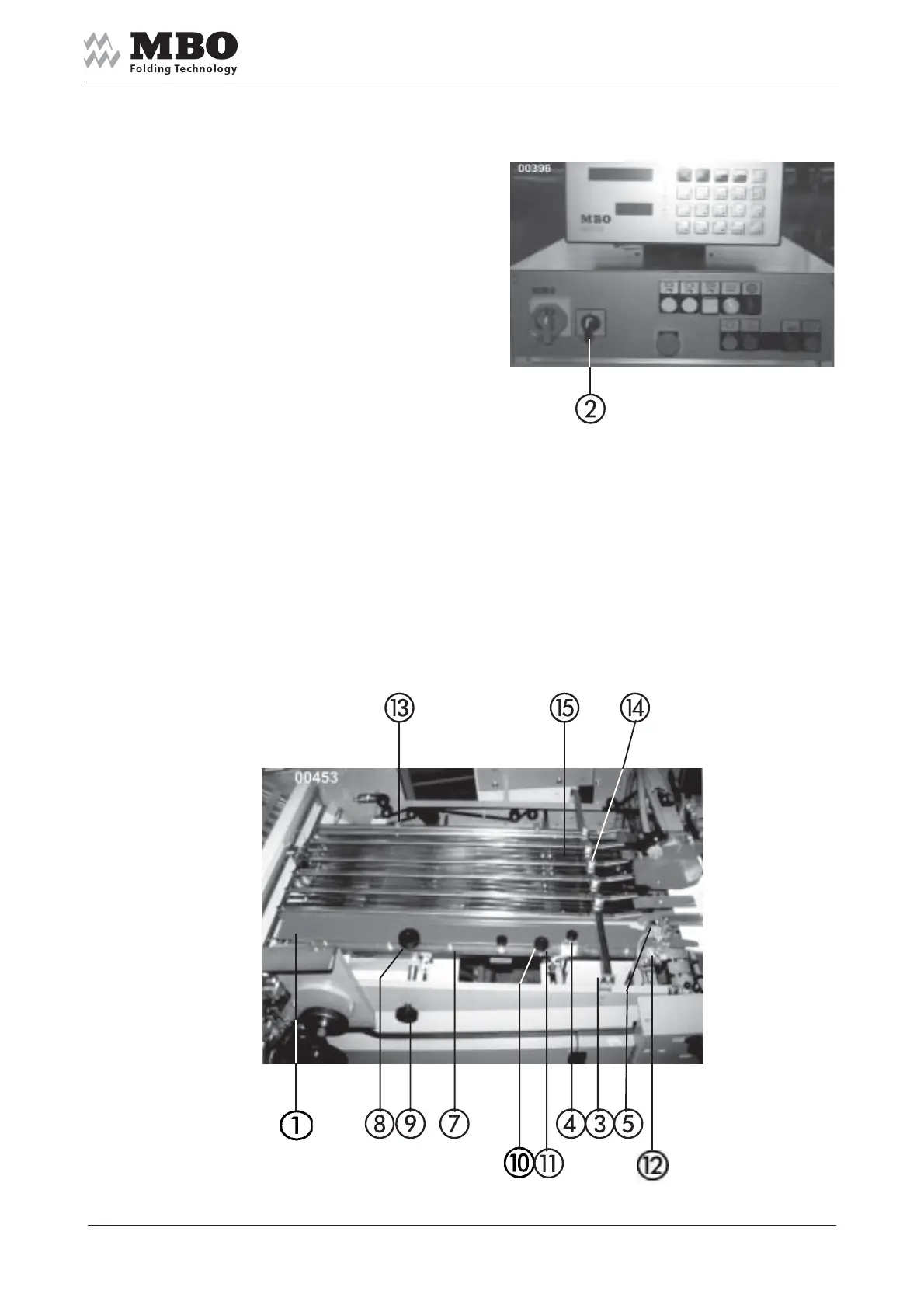

The Vacu-Alignment 1 has
a separate vacuum pump 3.
ON/OFF position also occurs
through switch 2.
Heavy or thick paper require more vacuum than light or thin paper.
The setting occurs at twist-grip 4, scale +/-
For safe transfer at infeed heavy or oblong sheets require more vacuum at vacuum roller 5.
Set the sidelay 7 through knurled grip 8 to ½ of sheet width at mm-scale.
The fine adjustment occurs through knurled grip 9.
Angle to the foldrollers: loosen knurled screw 10.
Settings to be made at excenter 11, reading-off at scale 12, +/-.
Set the guide plate with the rail 13 above it to such an extend that the paper edge runs between it.
The quantity of smoother bars 14 above the lattice fence 15 depend on the sheet width.
5.3 Register table
5.3.1 Vacu-Alignment (standard)
