MBO T700 - Infeed plate adjustments; Infeed plate adjustment for sheet tendency

Seite 47Alterations reserved Stand 05/2008
Operating manual T700/T800.1 - en
Continuation

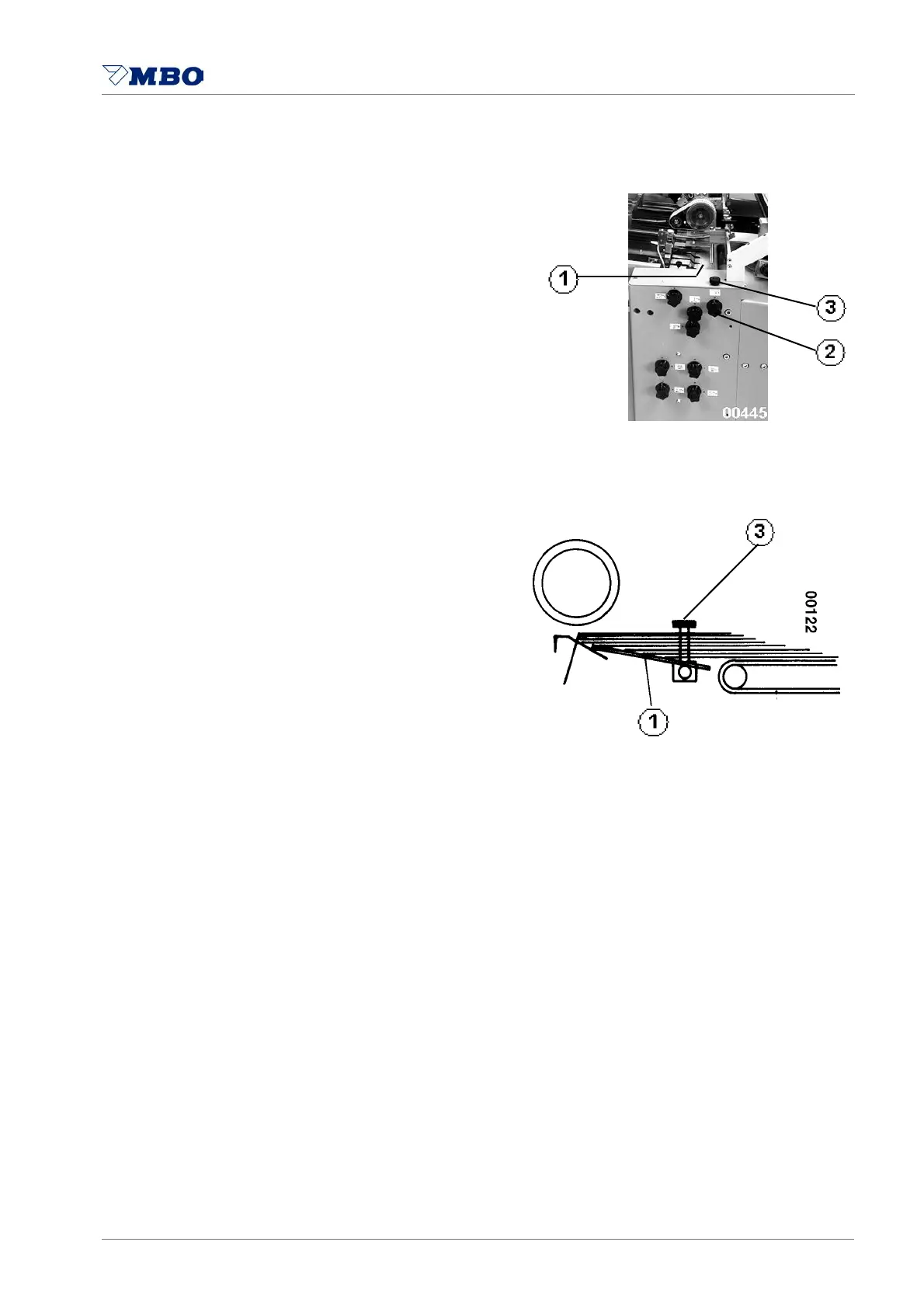

Set the infeed plate 1 with
knurled grip 2 higher/lower
and fix it through
the knurled screw 3.
For sheets which tend to roll down
= move the infeed plate 1 up.
For sheets which tend to roll up
= move the infeed plate 1 down.
