MBO T700 - Side blower and air blast regulation; Side blower positioning and valve regulation

Seite 50
Alterations reserved
Stand 05/2008
Operating manual T700/T800.1 - en
Continuation

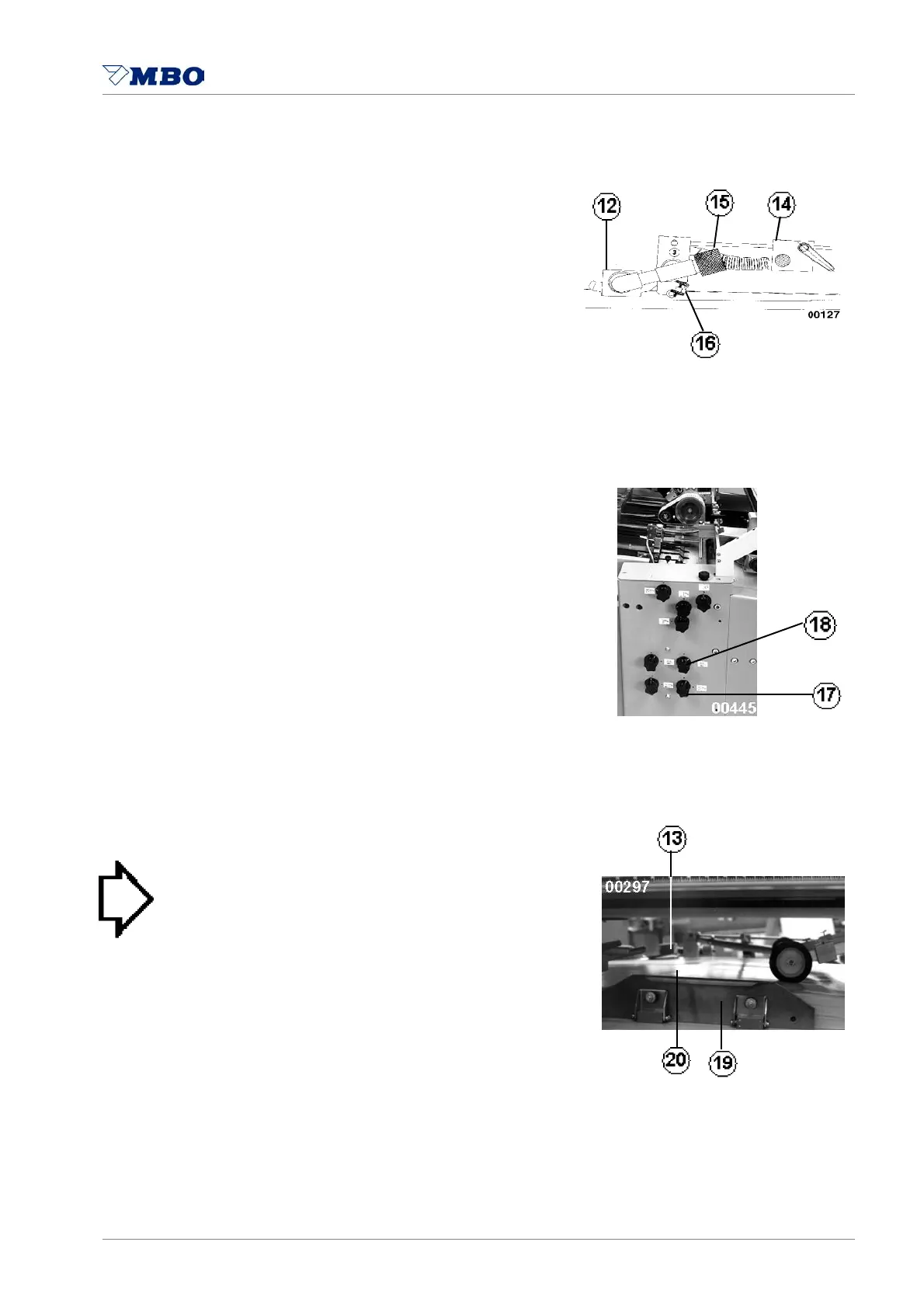

The positioning of side blower 12
at operator side into
length- and crosswise direction
occurs through holder 14.
Set the balance through the
weight 15 to such an extend
that the side blower 12 is
slightly touching the sheet;
fix it through the nut 16.
Regulate the quantity of
air blast through valve 17.
> NOTICE < Use plate 19 at operator
side when you process large sheet sizes
for air back-up within the pile 20.
Use side blower 13 oppositely,
at drive side. Regulate the air blast
through valve 18.
Continuation
