Operating Manual T 700 / T 800 - FP ENG
Continuation
1 guide rollers
2 pre-perforator shaft
3 foldroller 1
4 foldroller 2
5 foldroller 3
6 foldroller 4
7 foldroller 5
8 first rear perforator shaft
9 second rear perforator shaft

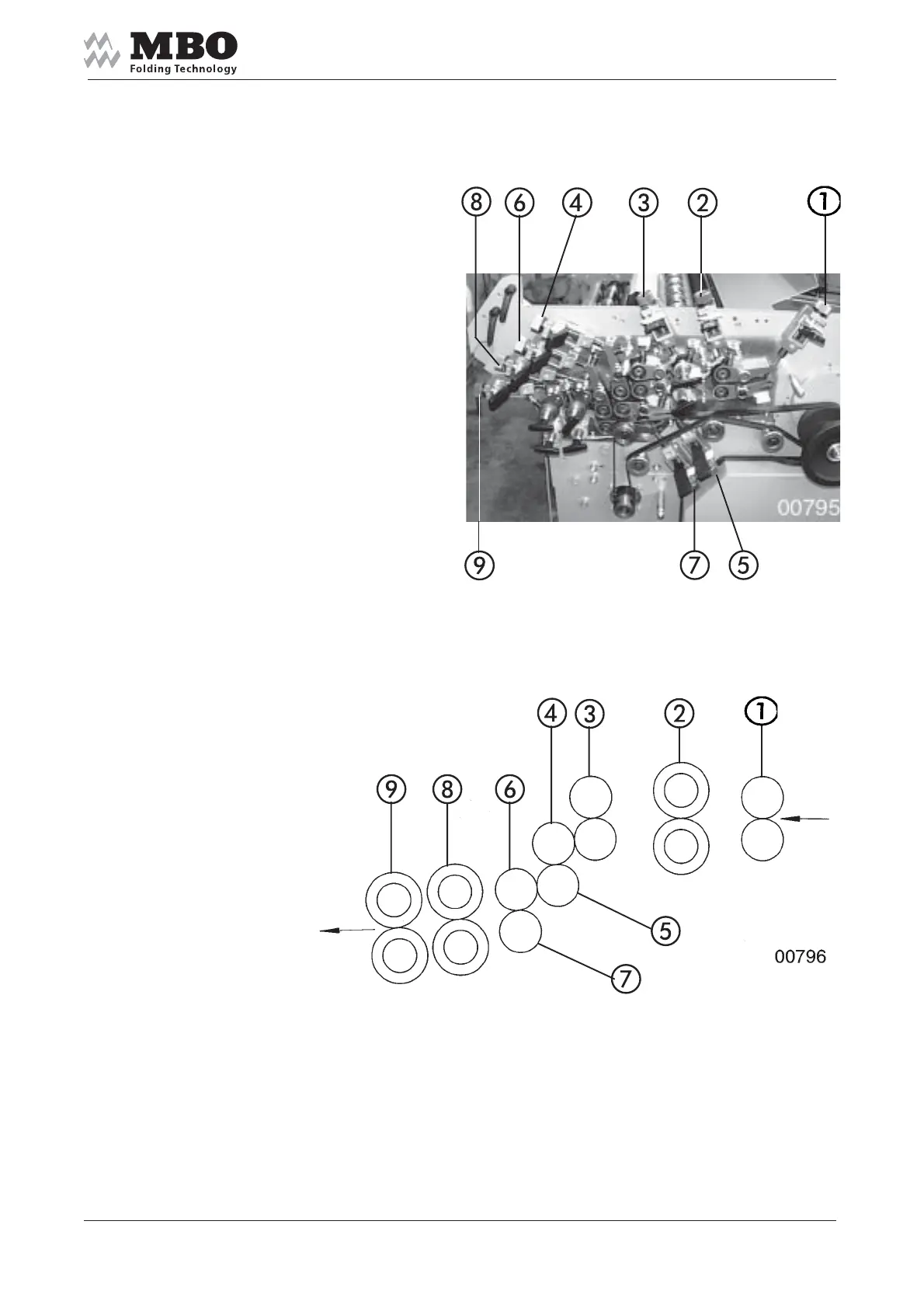

The scheme of foldrollers
at machines side panel
shows you foldrollers
with the setting elements
pertaining thereto.
