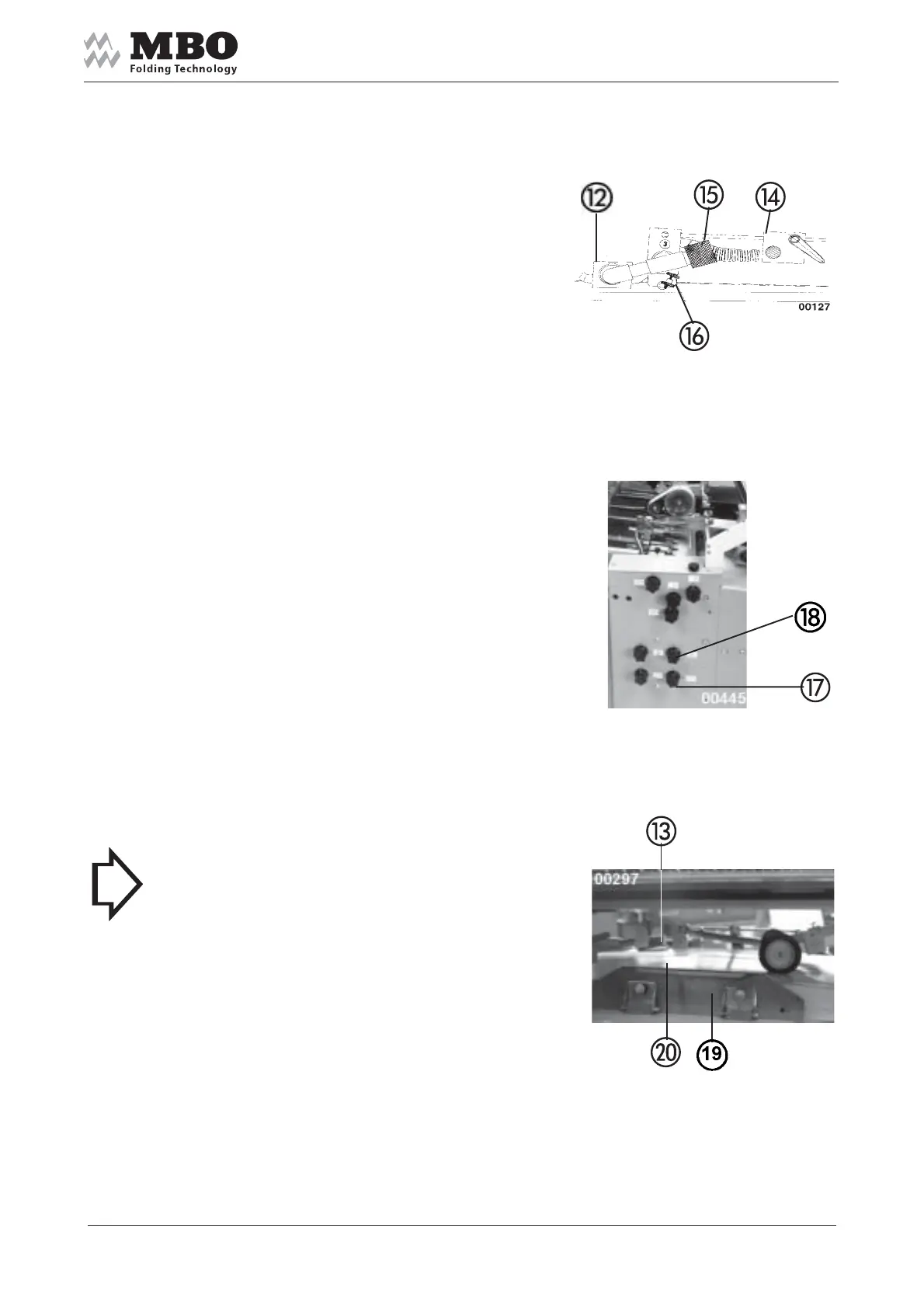

The positioning of side blower 12
at operator side into
length- and crosswise direction
occurs through holder 14.
Set the balance through the
weight 15 to such an extend
that the side blower 12 is
slightly touching the sheet;
fix it through the nut 16.
Regulate the quantity of
air blast through valve 17.
>NOTICE< Use plate 19 at operator
side when you process large sheet sizes
for air back-up within the pile 20.
Use side blower 13 oppositely,
at drive side. Regulate the air blast
through valve 18.
