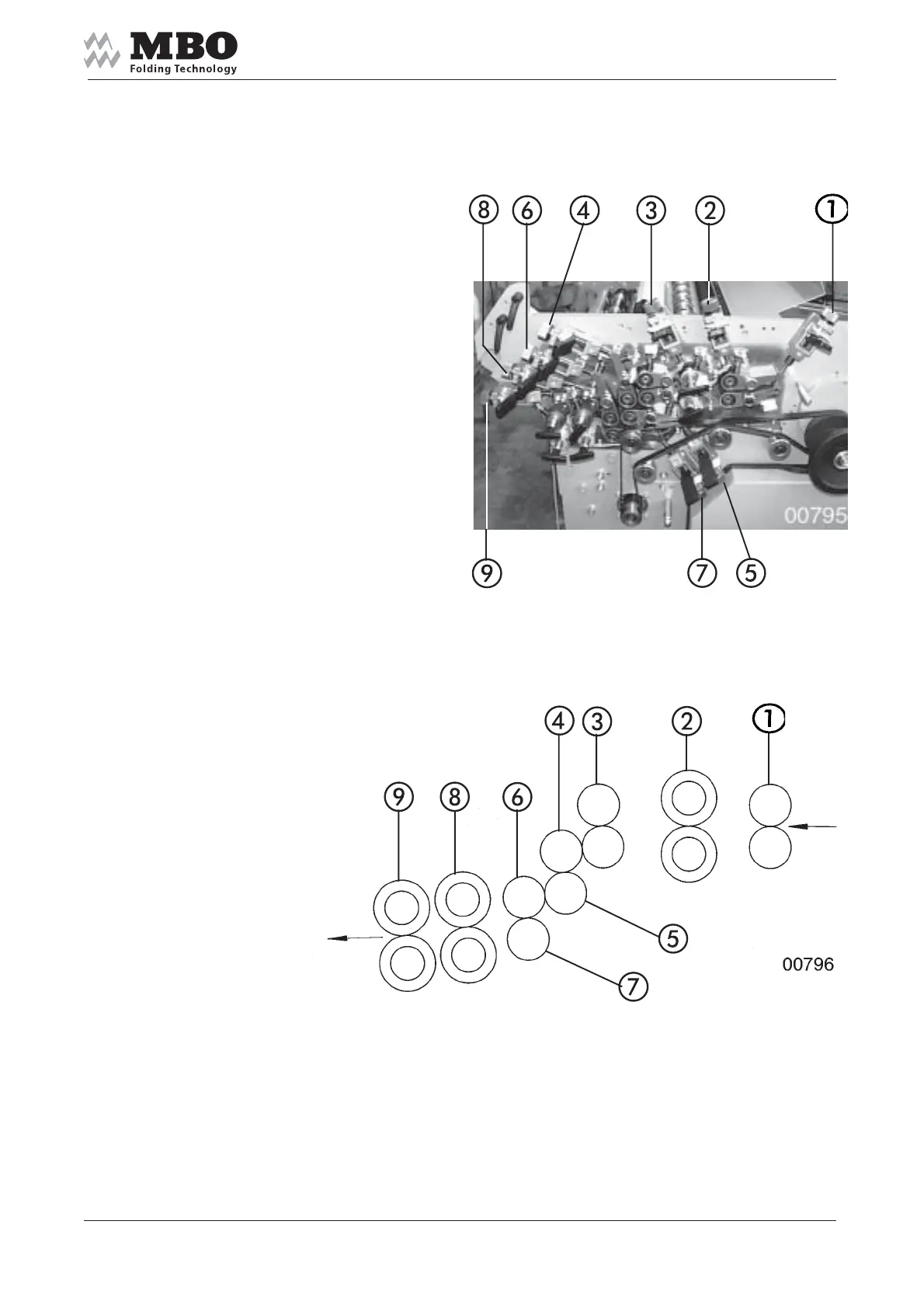

Continuation
1 guide rollers
2 pre-perforator shaft
3 foldroller 1
4 foldroller 2
5 foldroller 3
6 foldroller 4
7 foldroller 5
8 first rear perforator shaft
9 second rear perforator shaft
Setting instructions for the most commonly parallel foldings
in chapter 6.0.
