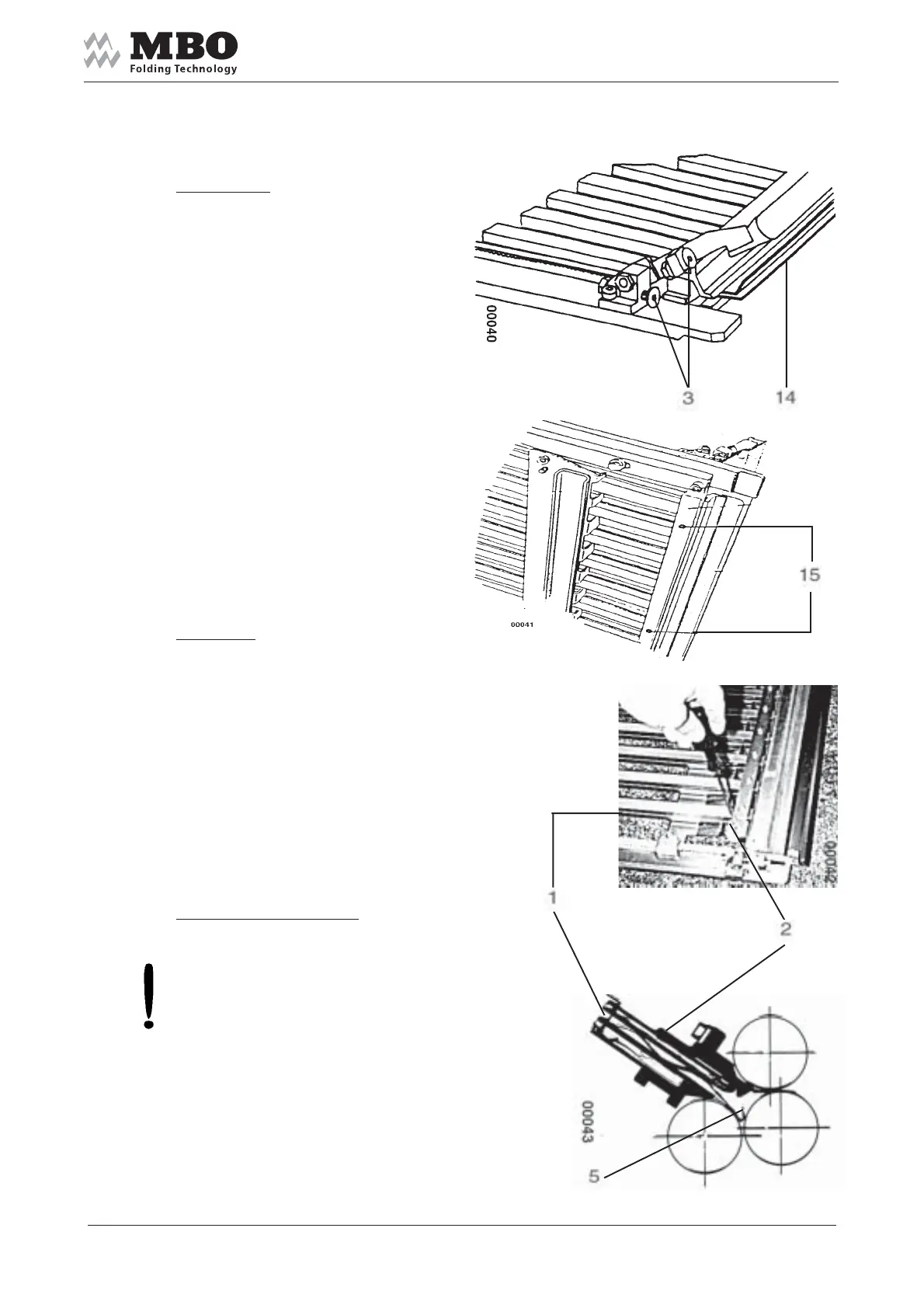

Pretensioning of lower plate lip 14:
In case you have unsteady
perforations, dog-ears or slightly
bowed folding lines (paper tensionings)
you should proceed as follows:
Insert both screws 15 simultaneously.
Eventually extend the inner width.
Inner width:
The inner width of the buckle plate
must eventually be changed for
certain thicknesses of the product.
(Distance between the upper
and lower buckle rails 1):
Clockwise turning of the screws 2
= increase of inner width.
Counter-clockwise turning of the
screws 2 = decrease of inner width.
Make sure that screws 2
are turned simultaneously
Change of folding space 5:
Insert strips of cartons or multiple
paper strips between 3 and 4.
>ATTENTION< Never alter
or displace stop screws 3!
It may cause damages to
the buckle plates or foldrollers
