3.2.2 Feeder

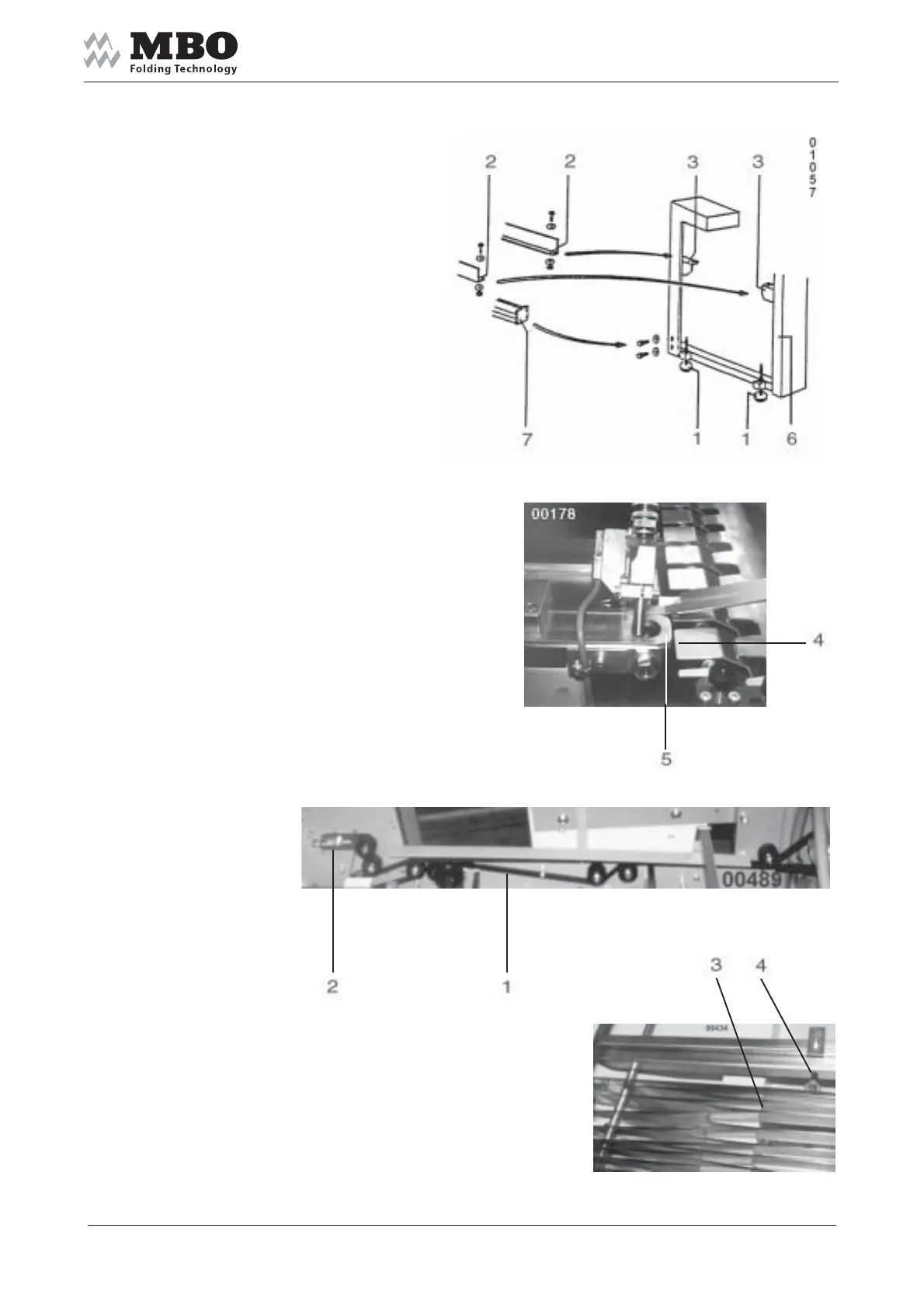

Place the feeder onto the levelling
screws and plastic feets 1 and move
it to the folding unit. Alignment holes
of register table 2 and feeder 3
must correspond with eachother.
Exact position has been marked
by the factory.
A distance of 1-2 mm must be
between the conveyor plate 4
and the register bar 5.
Set the exact height through the setting
screws, adjust it with the spirit level 6
and screw them up without stress.
Thereafter, screw the feeder and folding
unit with the connecting piece 7
up without stress.
Place the flat belt 1 for the drive of
suction wheel onto the drive rollers
and tension it from the bottom
with the tensioning roller 2.
Hinge-up the
lattice-type alignment table 3
